2009 Kawasaki Concours™ 14 Drive Shaft/final Gear Diagram

← All diagrams

Find the part on the Drive Shaft/final Gear diagram for your 2009 Kawasaki Concours™ 14, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

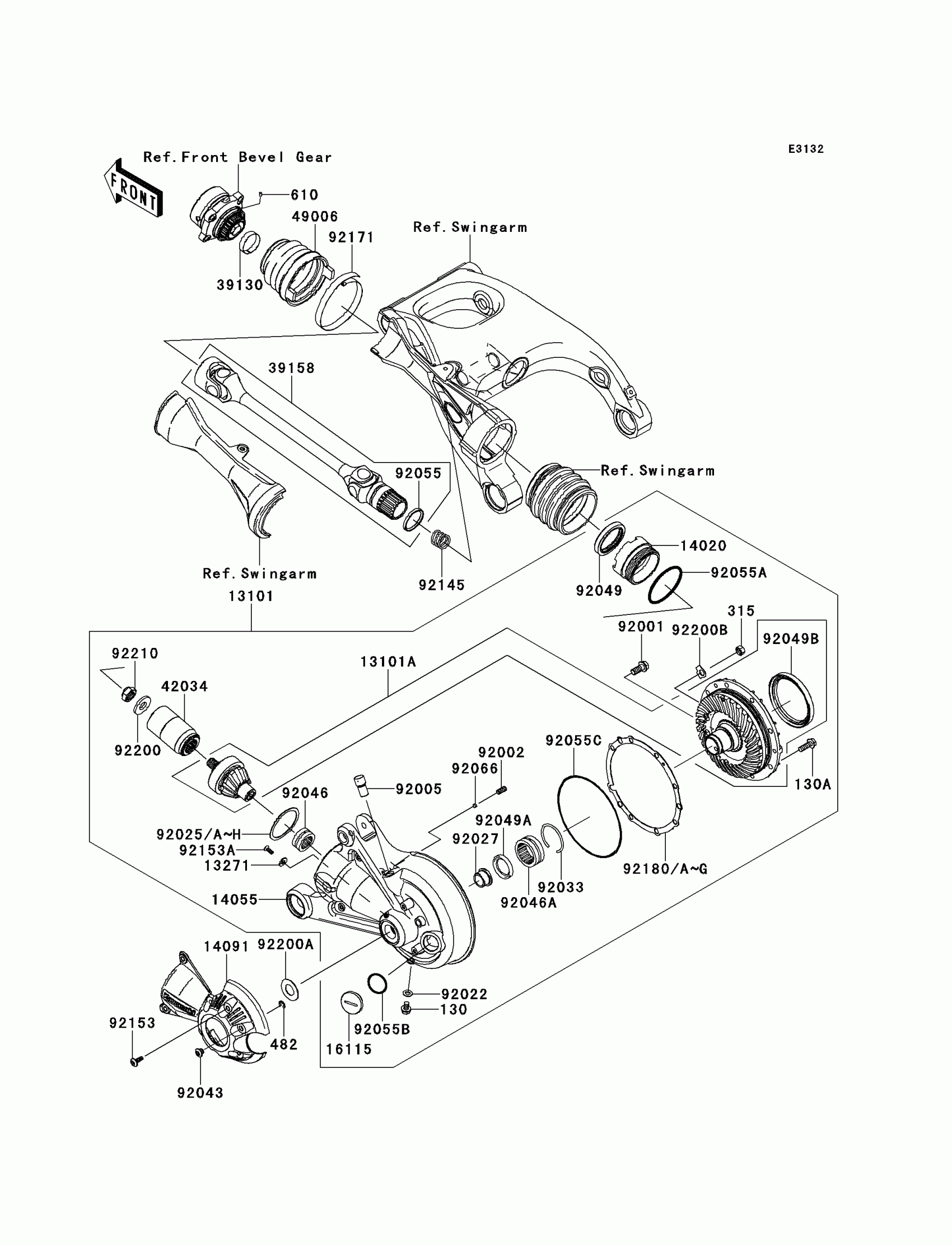

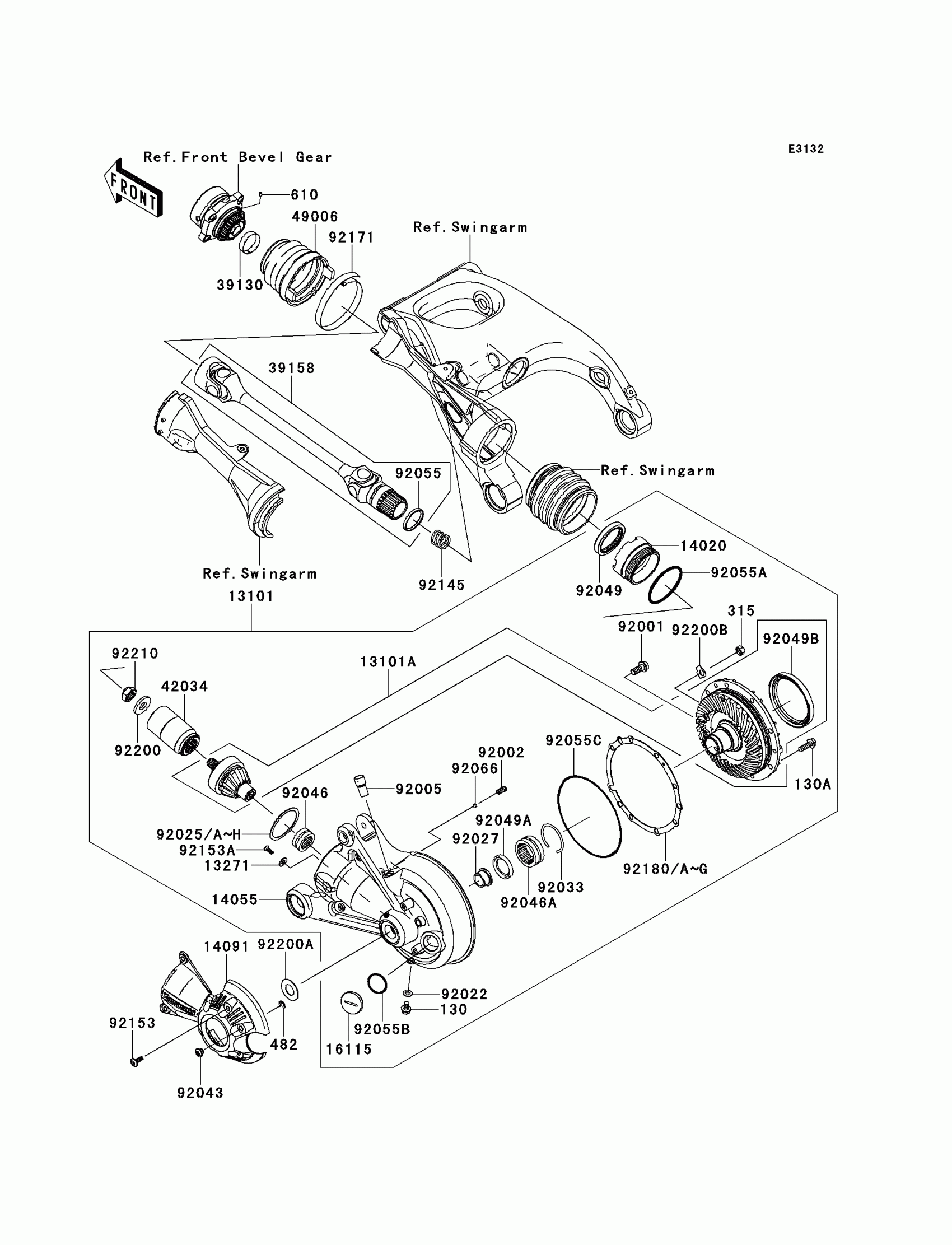

2009 Kawasaki Concours™ 14 Drive Shaft/final Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13101

GEAR-ASSY,P.SILVER

13101-0065-458

1
Out of stock

13101A

GEAR-ASSY,BEVEL,RR

13101-5091

1
Out of stock

13271

PLATE

13271-0930

1

$3.73

In stock

14020

RETAINER

14020-0010

1

$89.25

In stock

14055

CASE-GEAR,P.SILVER

14055-0034-458

1

$1,533.49

In stock

14091

COVER,DRIVE SHAFT

14091-0908

1
Out of stock

16115

CAP-OIL FILLER

16115-1070

1
Out of stock

39130

SPRING-LEAF

39130-1002

1

$4.24

In stock

39158

SHAFT-ASSY-DRIVE

39158-0004

1

$876.06

In stock

42034

COUPLING

42034-0039

1
Out of stock

49006

BOOT

49006-0070

1
Out of stock

92001

BOLT,10X23

92001-1778

1
Out of stock

92002

SCREW-SET-SOCKET,8X18

92002-1836

1
Out of stock

92005

FITTING

92005-0094

1
Out of stock

92022

WASHER,8.2X16X1

92022-1086

1
Out of stock

92025

SHIM,T=0.10

92025-1733

—
Out of stock

92025A

SHIM,T=0.15

92025-1734

—
Out of stock

92025B

SHIM,T=0.50

92025-1735

—
Out of stock

92025C

SHIM,T=0.60

92025-1736

—
Out of stock

92025D

SHIM,T=0.70

92025-1737

—
Out of stock

92025E

SHIM,T=0.80

92025-1738

—
Out of stock

92025F

SHIM,T=0.90

92025-1739

—
Out of stock

92025G

SHIM,T=1.00

92025-1740

—
Out of stock

92025H

SHIM,T=1.20

92025-1741

—
Out of stock

92027

COLLAR

92027-1557

1
Out of stock

92033

RING-SNAP,52MM

92033-1074

1
Out of stock

92043

PIN

92043-0127

1
Out of stock

92046

BEARING-NEEDLE,RNA4904ARD

92046-1168

1
Out of stock

92046A

BEARING-NEEDLE,38NQ5020WD

92046-1169

1
Out of stock

92049

SEAL-OIL,HTC 50 65 9

92049-0085

1
Out of stock

92049A

SEAL-OIL,S-35477HS

92049-1025

1
Out of stock

92049B

SEAL-OIL,MHSA83X100X9XRT

92049-1280

1
Out of stock

92055

RING-O

92055-0115

1
Out of stock

92055A

RING-O,67.6X3.5

92055-0134

1
Out of stock

92055B

RING-O,31.5X2.6

92055-049

1
Out of stock

92055C

RING-O,OUTSIDE

92055-3771

1
Out of stock

92066

PLUG,6.2X3

92066-1272

1
Out of stock

92145

SPRING,25.8X4.0X86.2

92145-0549

1
Out of stock

92153

BOLT,6X18

92153-0816

1
Out of stock

92153A

BOLT,TORX,5X15

92153-1787

1
Out of stock

130

BOLT-FLANGED,8X12

130BB0812

1

$0.73

In stock

130A

BOLT-FLANGED,8X25

130BD0825

1

$3.64

In stock

315

NUT-HEX-FINE,10MM

315BA1000

1
Out of stock

482

CIRCLIP-TYPE-E

482EA7000

1
Out of stock

610

ROLLER,4X6

610A0406

1
Out of stock

92171

CLAMP

92171-1715

1
Out of stock

92180

SHIM,T=0.15

92180-0263

1
Out of stock

92180A

SHIM,T=0.50

92180-0264

—
Out of stock

92180B

SHIM,T=0.60

92180-0265

—
Out of stock

92180C

SHIM,T=0.70

92180-0266

—
Out of stock

92180D

SHIM,T=0.80

92180-0267

—
Out of stock

92180E

SHIM,T=0.90

92180-0268

—
Out of stock

92180F

SHIM,T=1.00

92180-0269

—
Out of stock

92180G

SHIM,T=1.20

92180-0270

—
Out of stock

92200

WASHER,16X36X4

92200-0320

1
Out of stock

92200A

WASHER,20.5X40X1.2

92200-0321

1
Out of stock

92200B

WASHER

92200-1003

1
Out of stock

92210

NUT,16MM

92210-0354

1
Out of stock
