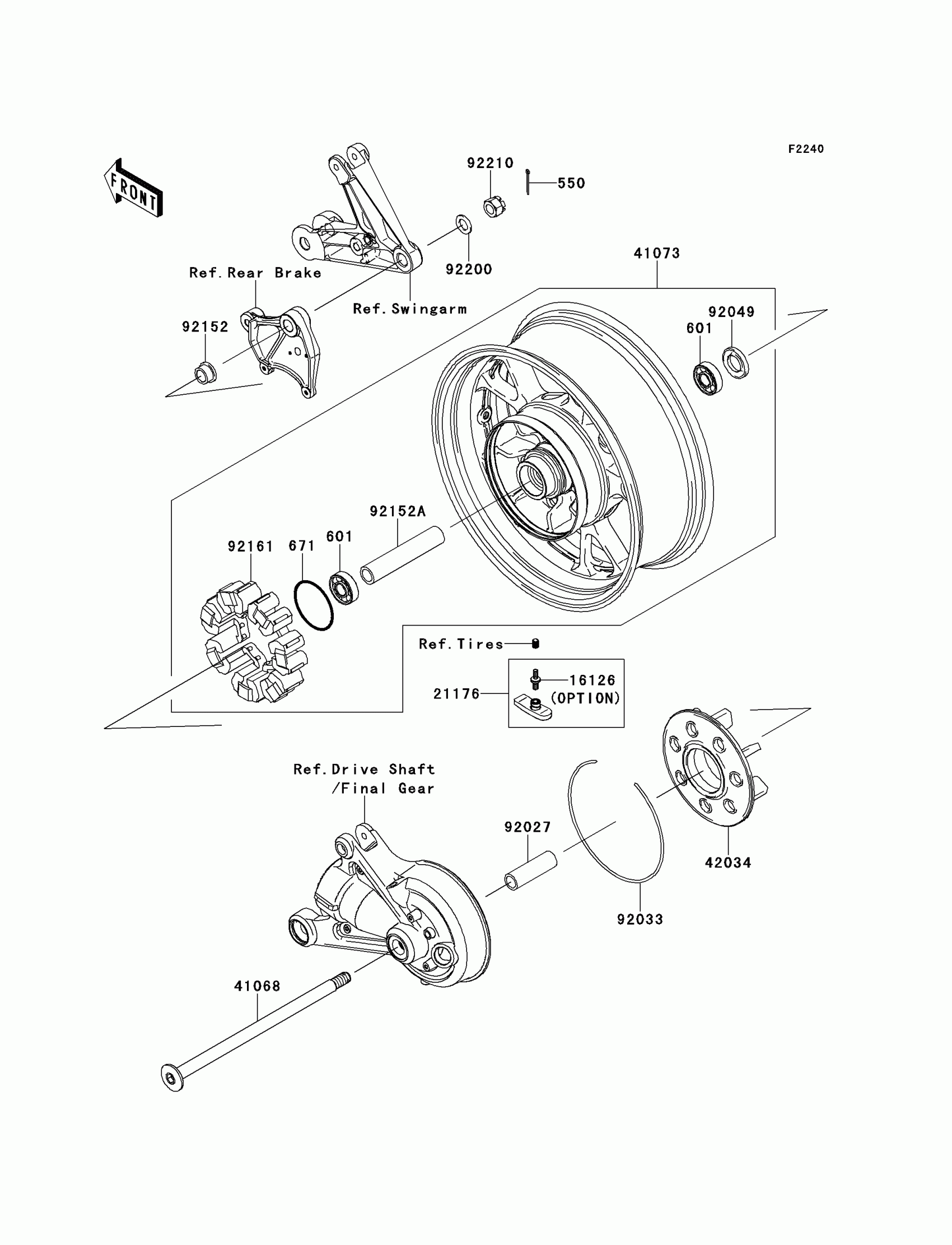

Kawasaki Concours™ 14 Rear Wheel/Chain Diagram

Description

Price

550

PIN-COTTER,4.0X35

550AA4035

$1.57

601

BEARING-BALL,#6304UUC3

601B6304UU

$30.87

671

O RING,80MM

671B2580

$5.12

16126

VALVE,TIRE PRESSURE SENSOR

16126-0040

Unavailable

21176

SENSOR,TPMS 315MHZ

21176-0107

$253.85

41068

AXLE,RR

41068-0060

$135.61

41073

WHEEL-ASSY,RR,M.F.P.SILVER

41073-0091-795

Unavailable

42034

COUPLING,RR HUB

42034-0002

$283.07

92027

COLLAR,20.2X28X89

92027-1553

$30.75

92033

RING-SNAP,220MM

92033-0012

$16.81

92049

SEAL-OIL,28X52X5

92049-1061

$16.11

92152

COLLAR,RR AXLE,RH,L=17

92152-0105

$19.31

92152A

COLLAR,RR HUB,L=151

92152-0494

Unavailable

92161

DAMPER,SHOCK,RR HUB

92161-0409

$32.07

92200

WASHER,19X32X2.6

92200-1489

$1.35

92210

NUT,CASTLE,18MM

92210-1134

$7.49
