2009 Kawasaki Concours™ 14 Clutch Master Cylinder Diagram

← All diagrams

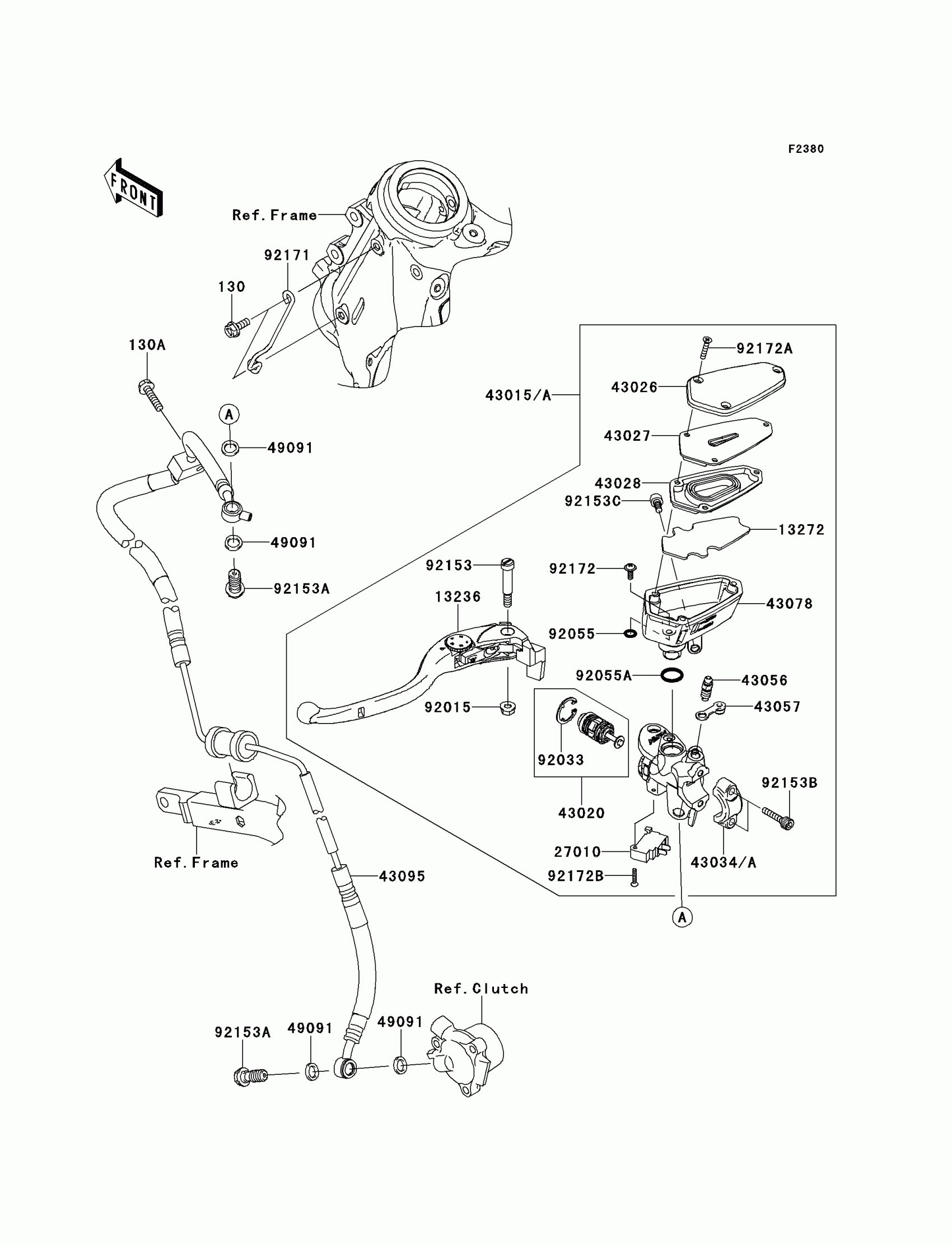

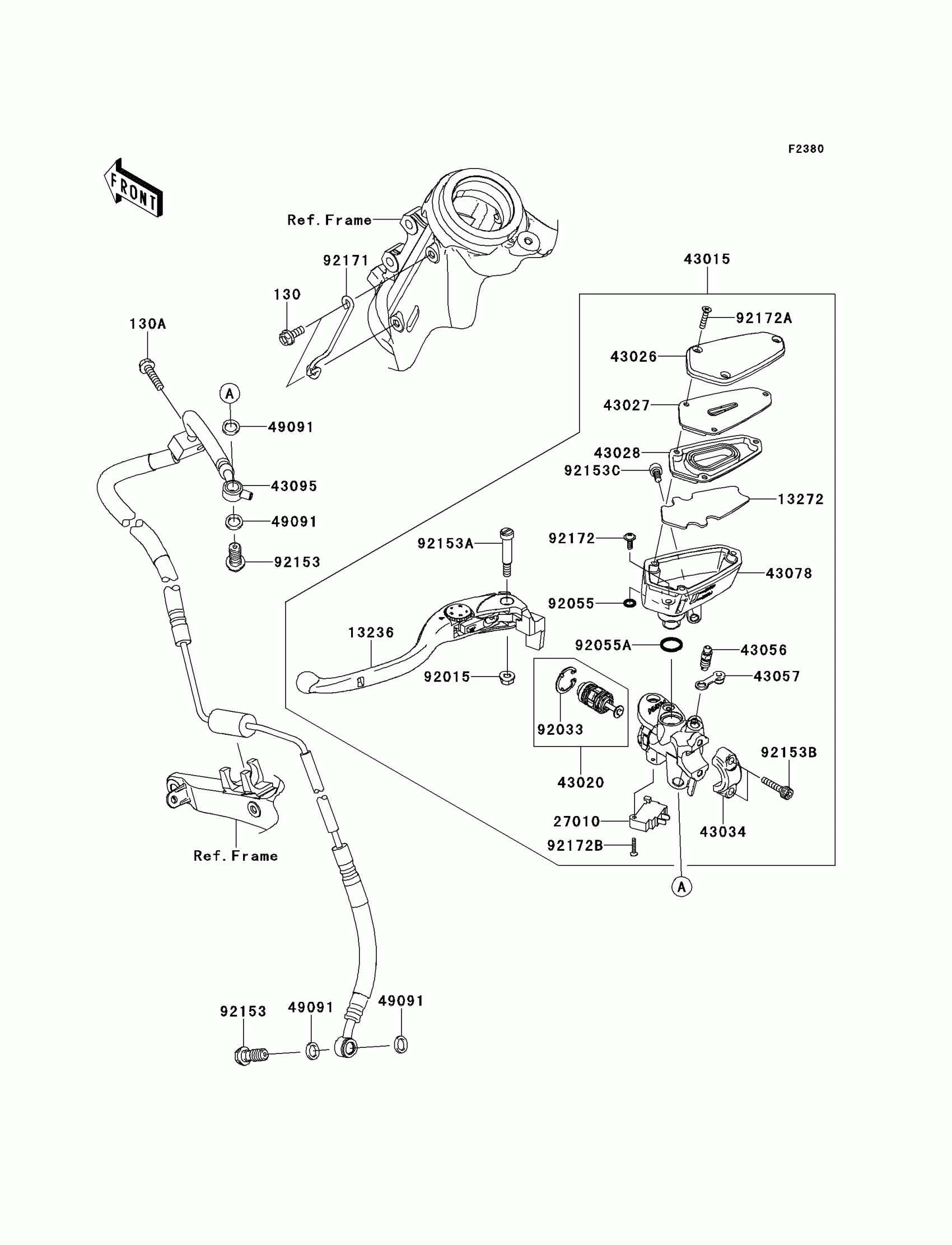

Find the part on the Clutch Master Cylinder diagram for your 2009 Kawasaki Concours™ 14, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki Concours™ 14 Clutch Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock

130A

BOLT-FLANGED,6X25

130BA0625

1

$1.01

In stock

13236

LEVER-COMP,CLUTCH

13236-0104

1
Out of stock

13272

PLATE

13272-0220

1

$10.58

In stock

27010

SWITCH,CLUTCH

27010-0051

1
Out of stock

43015

CYLINDER-ASSY-MASTER,CLUTCH

43015-0085

1
Out of stock

43015A

CYLINDER-ASSY-MASTER,CLUTCH

43015-0149

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-0013

1
Out of stock

43026

CAP-BRAKE

43026-0012

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-0003

1
Out of stock

43028

DIAPHRAGM

43028-0008

1
Out of stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0056

1
Out of stock

43034A

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

1
Out of stock

43056

BREATHER-BRAKE

43056-1056

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

43078

RESERVOIR

43078-0049

1
Out of stock

43095

HOSE-BRAKE,CLUTCH

43095-0298

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92033

RING-SNAP

92033-0034

1
Out of stock

92055

RING-O

92055-0137

1
Out of stock

92055A

RING-O,MASTER CYLINDER

92055-1251

1
Out of stock

92153

BOLT,LEVER

92153-0868

1
Out of stock

92153A

BOLT,OIL,L=23

92153-1419

1
Out of stock

92153B

BOLT,SOCKET,6X22

92153-1518

1
Out of stock

92153C

BOLT,SOCKET,6X12

92153-1853

1
Out of stock

92171

CLAMP,CLUTCH HOSE

92171-0633

1
Out of stock

92172

SCREW

92172-0319

1
Out of stock

92172A

SCREW,4X20

92172-0320

1
Out of stock

92172B

SCREW,3X16

92172-0349

1
Out of stock
