2022 Kawasaki Concours®14 ABS Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2022 Kawasaki Concours®14 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

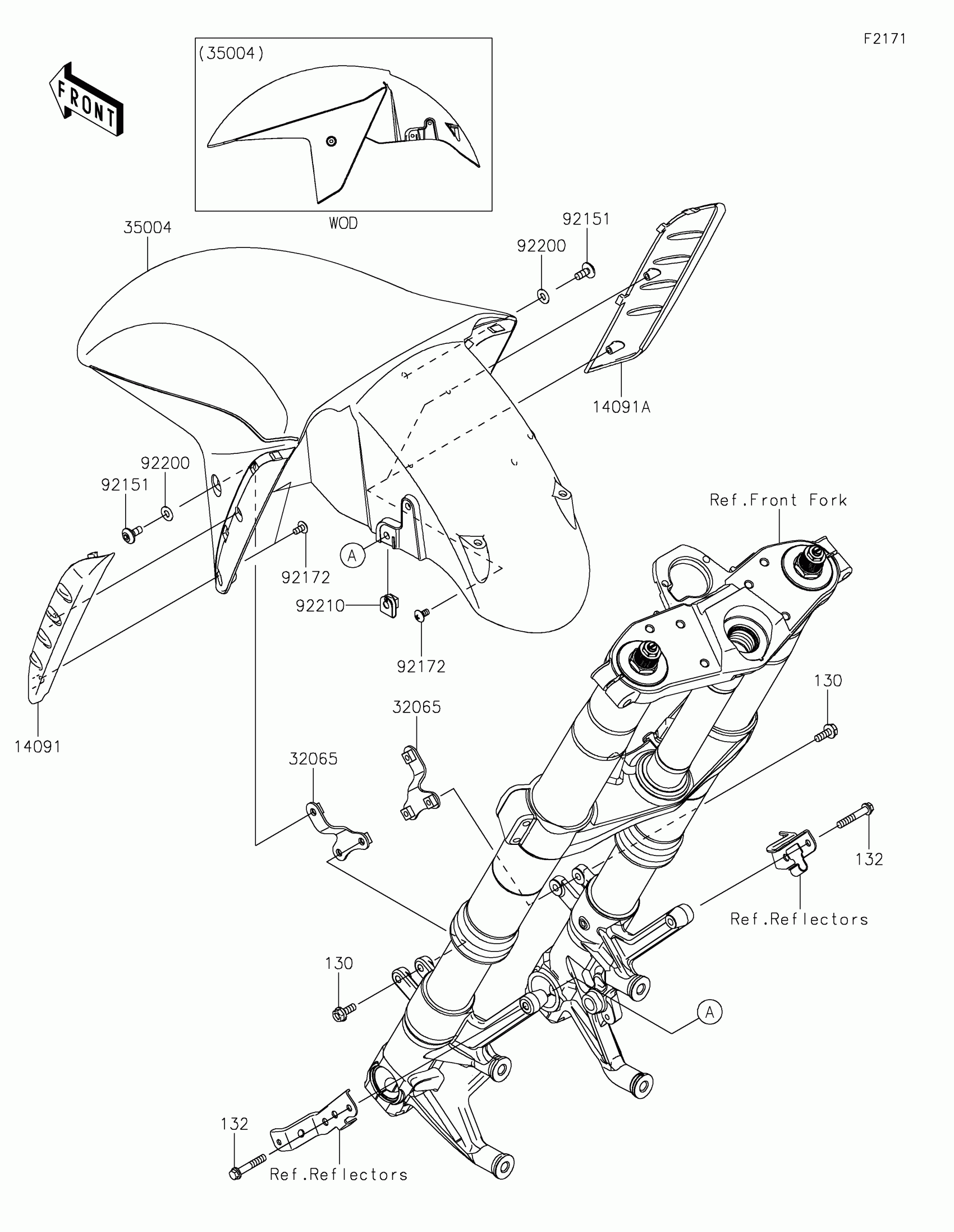

2022 Kawasaki Concours®14 ABS Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14091

COVER,FRONT FENDER,LH

14091-0598

1
Out of stock

14091A

COVER,FRONT FENDER,RH

14091-0599

1
Out of stock

32065

BRACKET-FENDER

32065-0079

1
Out of stock

35004

FENDER-FRONT,M.S.BLACK

35004-0155-660

1
Out of stock

92151

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92172

SCREW,TAPPING,5X10

92172-0262

1
Out of stock

92200

WASHER,6.5X14X1

92200-1388

1
Out of stock

92210

NUT,6MM

92210-0277

1
Out of stock

130

BOLT-FLANGED,6X18

130BA0618

1

$1.36

In stock

132

1

$3.28

In stock
