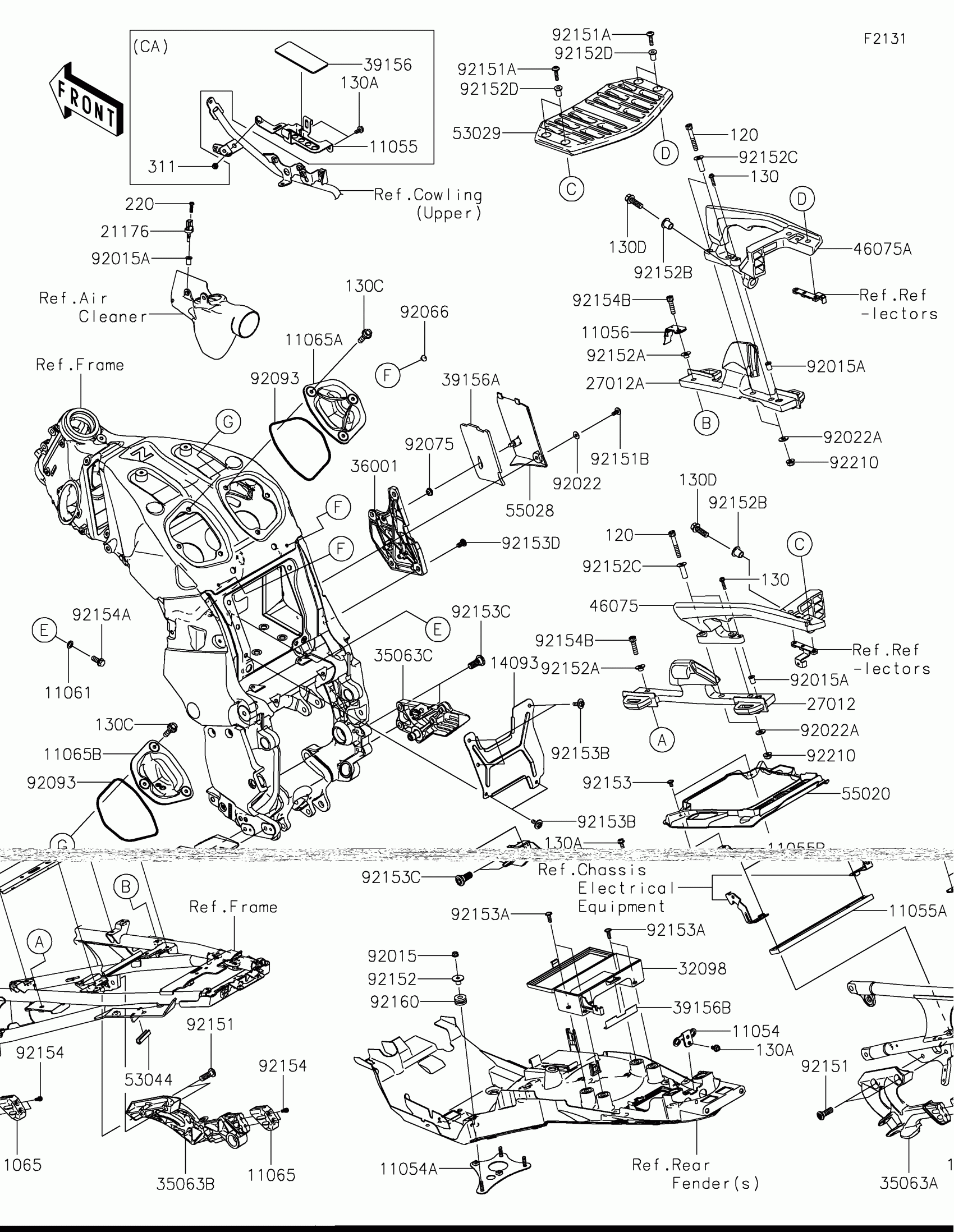

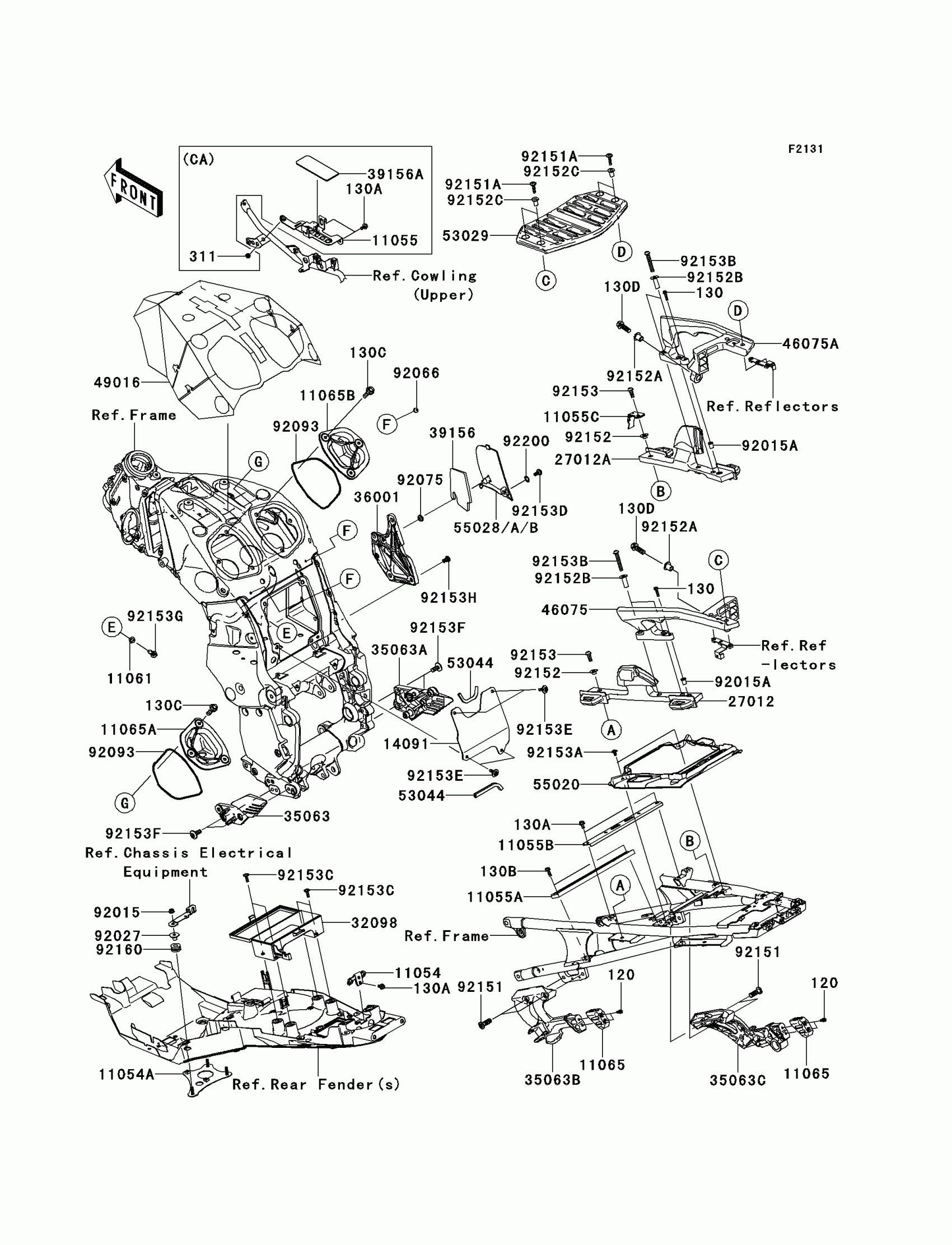

Find the part on the Frame Fittings diagram for your 2009 Kawasaki Concours 14 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki Concours 14 ABS Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11054

BRACKET,DOWN SENSOR

11054-1194

1

$15.36

In stock

11054A

BRACKET,REGULATOR

11054-1197

1

$22.02

In stock

11055A

1

$29.58

In stock

11055B

1

$29.43

In stock

11055C

1

$13.92

In stock

11061

GASKET

11061-0107

1
Out of stock

11065

CAP

11065-0166

1
Out of stock

11065A

CAP,AIR CLEANER,LH

11065-0222

1
Out of stock

11065B

CAP,AIR CLEANER,RH

11065-0223

1
Out of stock

14091

COVER,BATTERY BACK

14091-0871

1
Out of stock

27012

HOOK,LH

27012-0123

1
Out of stock

27012A

HOOK,RH

27012-0124

1
Out of stock

32098

CASE-TOOL

32098-0016

1
Out of stock

35063

STAY,FR,LH,P.SILVER

35063-0357-458

1
Out of stock

35063A

STAY,FR,RH,P.SILVER

35063-0358-458

1
Out of stock

35063B

STAY,RR,LH,F.BLACK

35063-0359-W9

1
Out of stock

35063C

STAY,RR,RH,F.BLACK

35063-0360-W9

1
Out of stock

36001

COVER-SIDE,BATTERY,RH,BLACK

36001-0105-18R

1
Out of stock

39156

PAD,COWLING,BATTERY

39156-0316

1

$12.59

In stock

46075

GRIP,TAIL,LH,P.SILVER

46075-0066-458

1

$178.97

In stock

46075A

GRIP,TAIL,RH,P.SILVER

46075-0067-458

1

$178.97

In stock

49016

COVER-SEAL

49016-0034

1
Out of stock

53029

CARRIER

53029-0076

1
Out of stock

53044

TRIM,L=100

53044-1200

1

$7.36

In stock

55020

GUARD,TAIL COVER

55020-0410

1

$40.95

In stock

55028

COWLING,BATTERY,M.D.BLACK

55028-0148-17K

1
Out of stock

55028B

COWLING,BATTERY,C.D.RED

55028-0148-25T

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92015A

NUT,WELL,5MM

92015-1757

1
Out of stock

92027

COLLAR,L=13.1

92027-251

1
Out of stock

92066

PLUG

92066-1547

1
Out of stock

92075

DAMPER,6X16X7

92075-1011

1
Out of stock

92093

SEAL

92093-1507

1
Out of stock

120

BOLT-SOCKET,5X12

120CA0512

1
Out of stock

130

BOLT-FLANGED,5X25

130BA0525

1

$0.66

In stock

130B

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock

130C

BOLT-FLANGED,6X22

130BA0622

1

$1.17

In stock

130D

BOLT-FLANGED,10X35

130BA1035

1

$2.63

In stock

92151

BOLT,SOCKET,10X30

92151-1372

1
Out of stock

92151A

BOLT,SOCKET,6X25

92151-1611

1
Out of stock

92152

COLLAR

92152-0532

1
Out of stock

92152A

COLLAR

92152-0534

1
Out of stock

92152B

COLLAR

92152-0610

1
Out of stock

92152C

COLLAR

92152-0627

1
Out of stock

92153

BOLT,SOCKET,8X30

92153-0393

1
Out of stock

92153A

BOLT,SOCKET,6X10

92153-0410

1
Out of stock

92153B

BOLT,SOCKET,8X50

92153-0420

1
Out of stock

92153C

BOLT,6X18

92153-0478

1
Out of stock

92153D

BOLT,SOCKET,6MM

92153-0489

1
Out of stock

92153E

BOLT,6X16

92153-0684

1
Out of stock

92153F

BOLT,SOCKET,8X20

92153-1621

1
Out of stock

92153G

BOLT,FLANGED,6X14

92153-1676

1
Out of stock

92153H

BOLT,SOCKET,8X15

92153-1810

1
Out of stock

92160

DAMPER

92160-1162

1
Out of stock

92200

WASHER,10.4X15.9X0.5

92200-0157

1
Out of stock

11055

BRACKET,CANISTER

11055-0112

1

$34.76

In stock

39156A

1

$3.76

In stock

130A

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130A

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

311

NUT-HEX,6MM

311BA0600

1
Out of stock
