2009 Kawasaki Concours 14 ABS Cowling Lowers Diagram

← All diagrams

Find the part on the Cowling Lowers diagram for your 2009 Kawasaki Concours 14 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

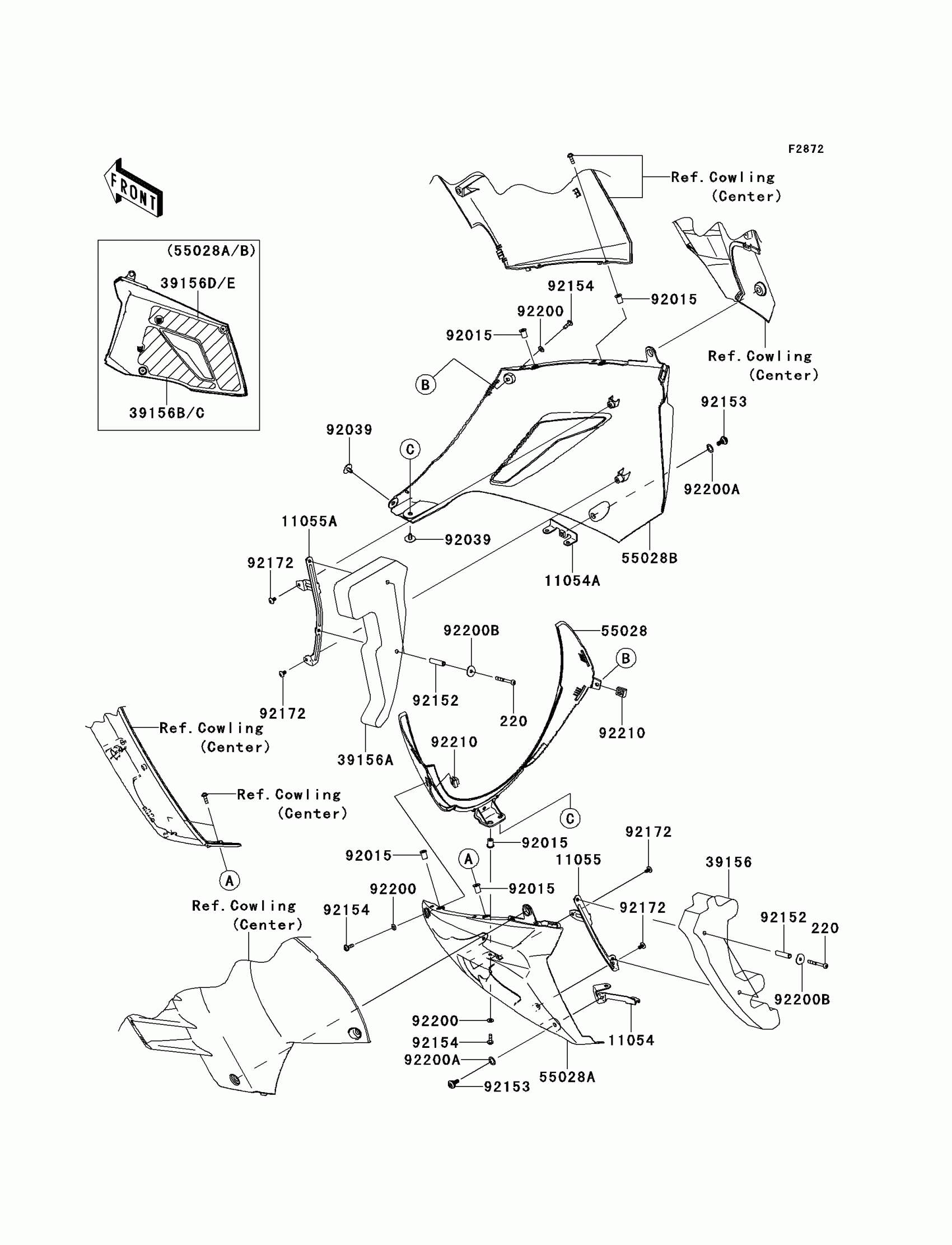

2009 Kawasaki Concours 14 ABS Cowling Lowers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

SCREW-PAN-CROS,5X45

220AA0545

1
Out of stock

11054

1

$11.05

In stock

11054A

1

$8.44

In stock

11055

BRACKET,PAD,LH

11055-0152

1

$29.43

In stock

11055A

BRACKET,PAD,RH

11055-0153

1

$26.81

In stock

39156

PAD,LWR COWLING,LH

39156-0348

1

$23.85

In stock

39156A

PAD,LWR COWLING,RH

39156-0349

1

$26.95

In stock

39156B

PAD,LWR COWLING,LH

39156-0350

1

$16.63

In stock

39156C

PAD,LWR COWLING,RH

39156-0352

1

$12.98

In stock

39156D

PAD,LWR COWLING,LH

39156-0362

1

$23.47

In stock

39156E

PAD,LWR COWLING,RH

39156-0363

1

$23.47

In stock

55028

COWLING,LWR,FR

55028-0181

1
Out of stock

55028A

COWLING,LWR,LH,BLACK

55028-0199-18T

1
Out of stock

55028B

COWLING,LWR,RH,BLACK

55028-0200-18T

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92039

RIVET,HOLE 8MM

92039-0014

1
Out of stock

92152

COLLAR,5.6X8X35

92152-0605

1
Out of stock

92153

BOLT,SOCKET,6MM

92153-0489

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-0209

1
Out of stock

92172

SCREW,TAPPING,5X10

92172-1061

1
Out of stock

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

1
Out of stock

92200A

WASHER,10.4X15.9X0.5

92200-0157

1
Out of stock

92200B

WASHER,5.5X20X1.2

92200-0284

1
Out of stock

92210

NUT,5MM

92210-0351

1
Out of stock
