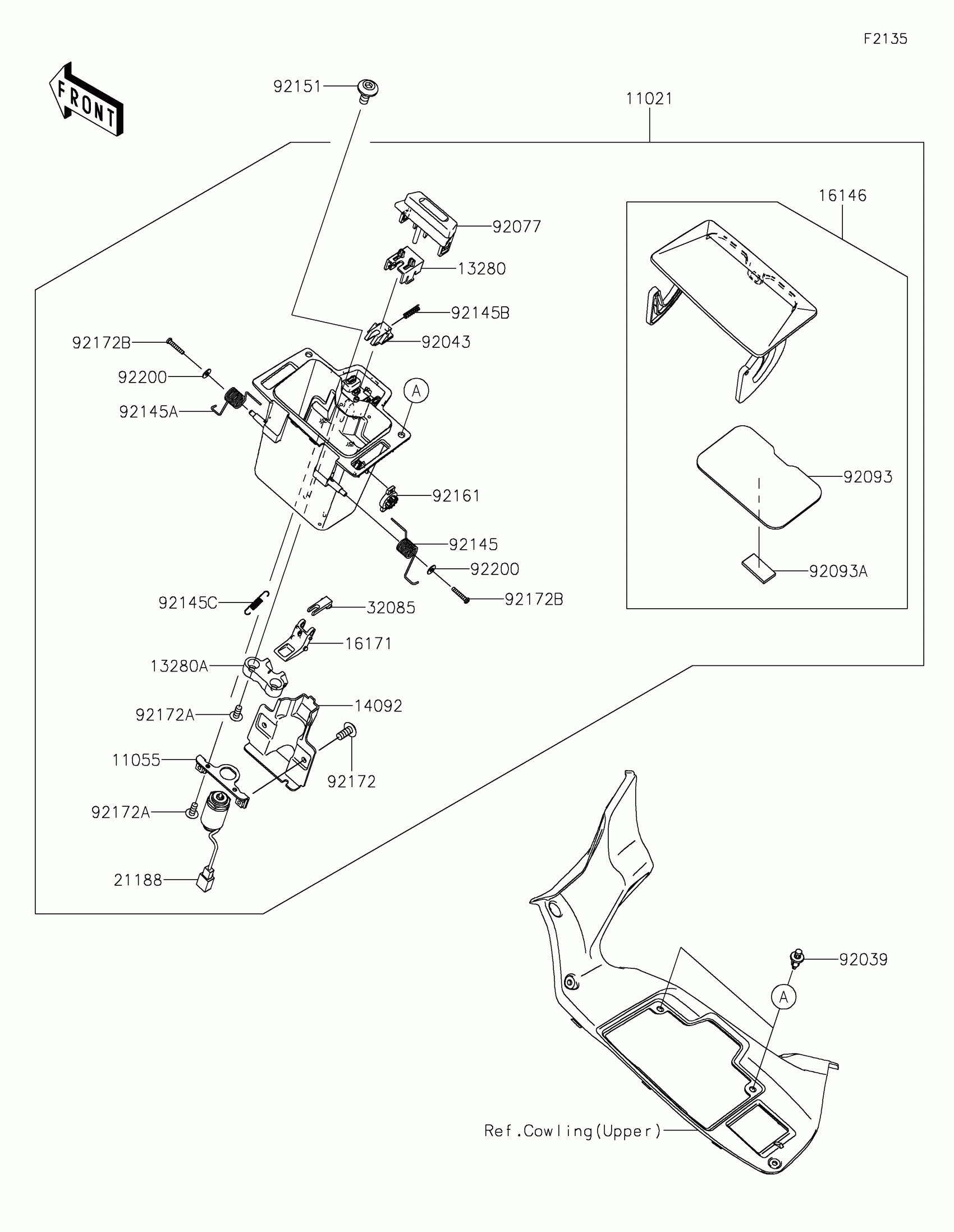

Kawasaki CONCOURS® 14 ABS Front Box Diagram

Description

Price

11021

CASE-ASSY,STORAGE

11021-0020

$321.42

11055

BRACKET

11055-1711

$8.42

13280

HOLDER

13280-0344

$2.66

13280A

HOLDER

13280-0371

$2.66

14092

COVER

14092-0022

$9.63

16146

COVER-ASSY

16146-0115

$38.00

16171

LINK

16171-0017

$2.23

21188

SOLENOID

21188-0009

$224.14

32085

STOPPER

32085-0193

$2.79

92039

RIVET

92039-0023

$2.09

92043

92043-0201

$3.24

92077

KNOB

92077-0028

$6.80

92093

SEAL

92093-0166

$6.69

92093A

SEAL

92093-0167

$1.19

92145

SPRING

92145-0727

$3.14

92145A

SPRING

92145-0728

$3.14

92145B

SPRING

92145-0729

$1.75

92145C

SPRING

92145-0730

$1.92

92151

BOLT,SOCKET,6X14

92151-1654

$1.24

92161

DAMPER

92161-0470

$11.68

92172

SCREW,5X12,GREEN

92172-0008

$1.51

92172A

SCREW,TAPPING,4X10

92172-0172

$3.71

92172B

SCREW,TAPPING,2.5X14

92172-0440

$1.04

92200

WASHER,3.3X8X0.5

92200-0514

$0.74
