Cowling(Center)

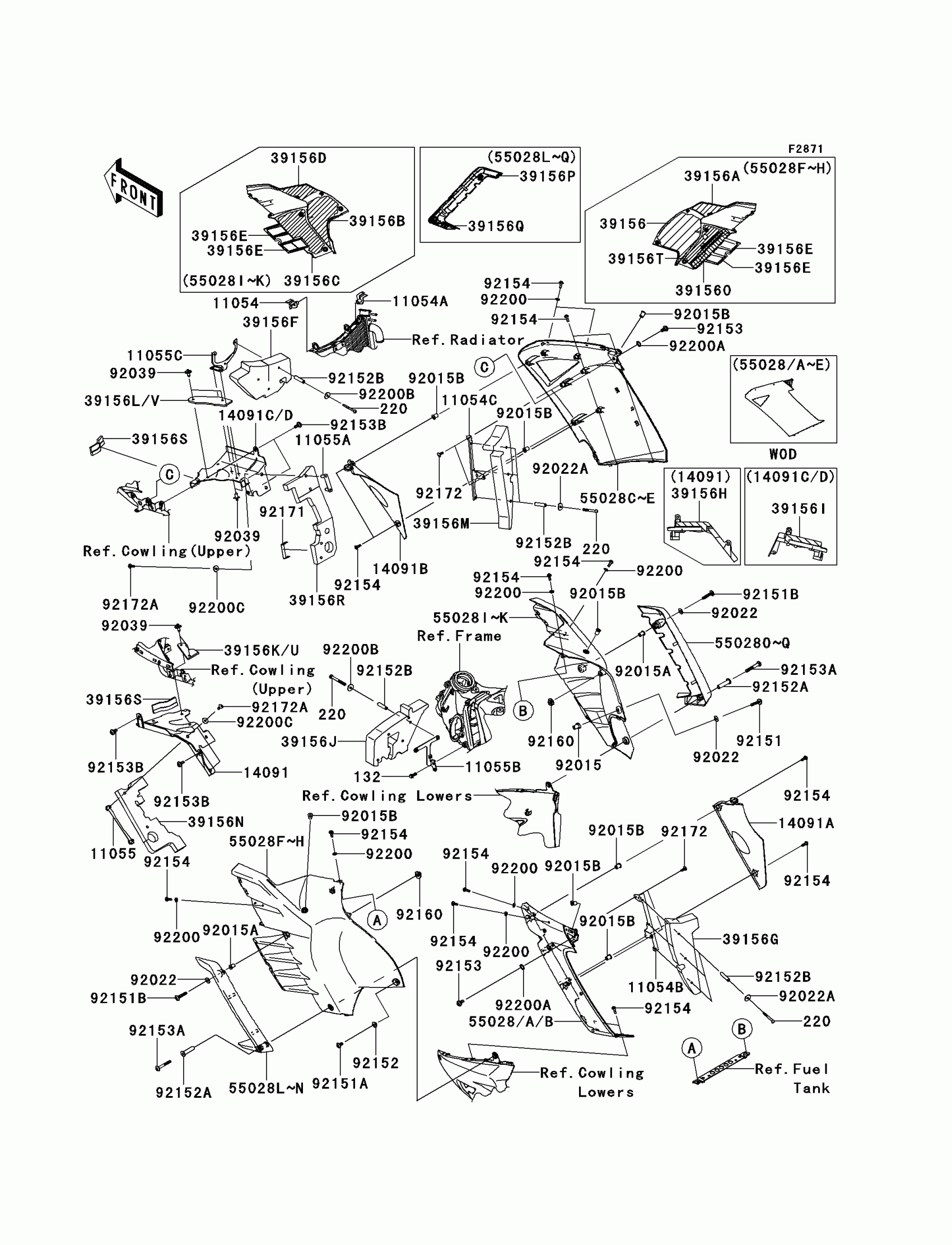

2009 Kawasaki Concours 14 ABS Cowling Diagram
Find the part on the Cowling diagram for your 2009 Kawasaki Concours 14 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
14091
COVER,HEAT GUARD,LH
14091-0831
14091A
COVER,SHROUD,LH
14091-0841
14091B
COVER,SHROUD,RH
14091-0842
14091D
COVER,HEAT GUARD,RH
14091-0938
55028
COWLING,SIDE,LH,M.D.BLACK
55028-0185-17K
55028B
COWLING,SIDE,LH,C.D.RED
55028-0185-25T
55028C
COWLING,SIDE,RH,M.D.BLACK
55028-0186-17K
55028E
COWLING,SIDE,RH,C.D.RED
55028-0186-25T
55028F
COWLING,CNT,LH,M.D.BLACK
55028-0187-17K
55028H
COWLING,CNT,LH,C.D.RED
55028-0187-25T
55028I
COWLING,CNT,RH,M.D.BLACK
55028-0188-17K
55028K
COWLING,CNT,RH,C.D.RED
55028-0188-25T
55028L
COWLING,HOT WIND,LH,M.D.BLACK
55028-0206-17K
55028N
COWLING,HOT WIND,LH,C.D.RED
55028-0206-25T
55028O
COWLING,HOT WIND,RH,M.D.BLACK
55028-0207-17K
55028Q
COWLING,HOT WIND,RH,C.D.RED
55028-0207-25T
92015
NUT,RUBBER,6MM
92015-1692
92015A
NUT
92015-1700
92015B
NUT,WELL,5MM
92015-1757
92022
WASHER,6.5X16X1
92022-1143
92022A
WASHER,5.5X20X1.2
92022-1405
92039
RIVET
92039-1289
92151
BOLT,SOCKET,6X30
92151-1605
92151A
BOLT,SOCKET,6X14
92151-1654
92151B
BOLT,SOCKET,6X35
92151-1835
92152
COLLAR,6.5X10X5.6
92152-0445
92152A
COLLAR
92152-0584
92152B
COLLAR,5.6X8X35
92152-0605
92153
BOLT,SOCKET,6MM
92153-0489
92153A
BOLT,SOCKET,6X50
92153-1842
92153B
BOLT,SOCKET,6MM
92153-1956
92154
BOLT,SOCKET,5X16
92154-0209
220
SCREW-PAN-CROS,5X45
220AA0545
92160
DAMPER
92160-1613
92171
CLAMP
92171-1807
92172
SCREW,TAPPING,5X16
92172-0238
92172A
SCREW,5X16
92172-0322
92200
WASHER,NYLONE,5.3X11.5X0.5
92200-0006
92200A
WASHER,10.4X15.9X0.5
92200-0157
92200B
WASHER,5.5X20X1.2
92200-0284
92200C
WASHER
92200-0288
