2005 Kawasaki Brute Force 750 4x4i Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2005 Kawasaki Brute Force 750 4x4i, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

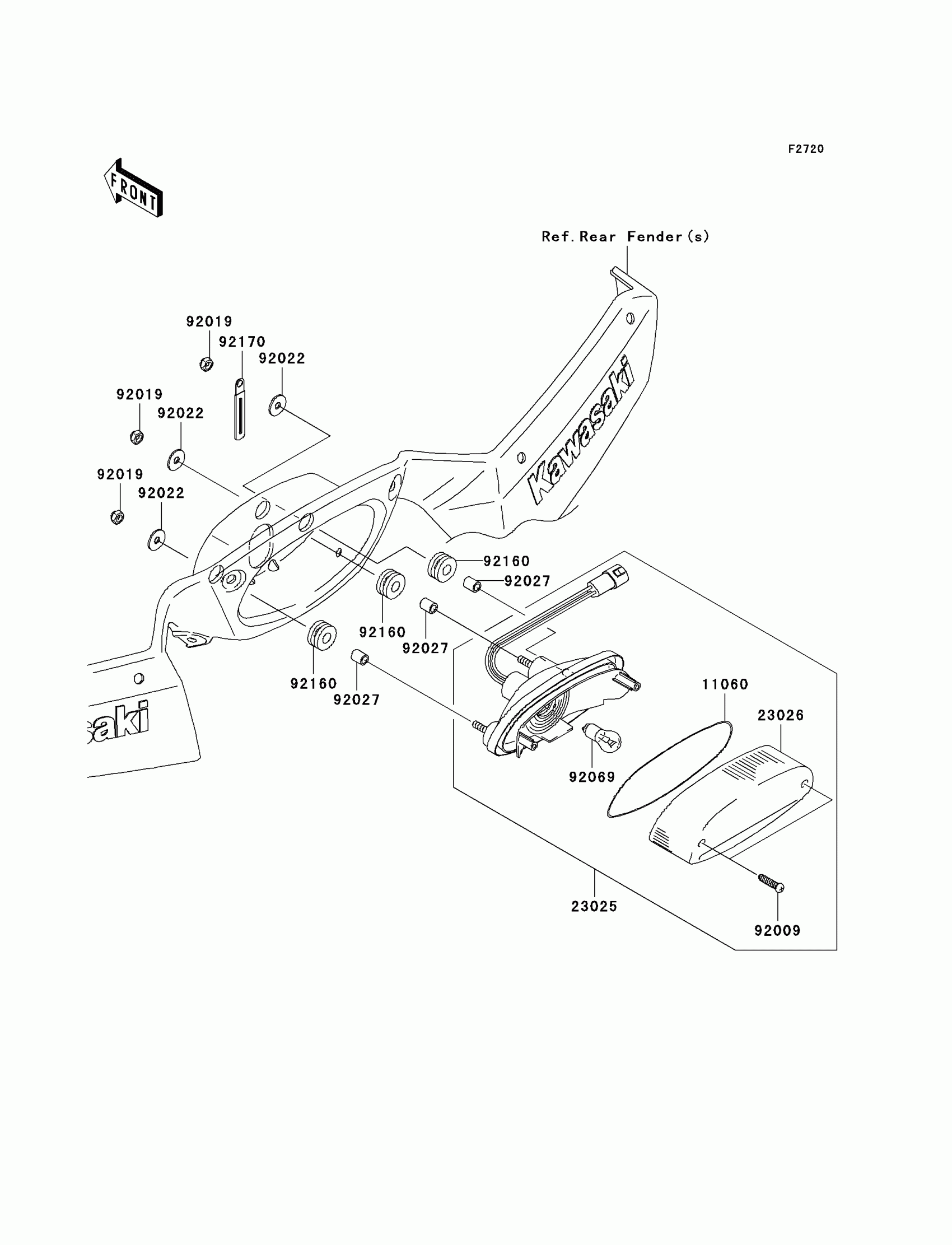

2005 Kawasaki Brute Force 750 4x4i Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

1

$10.27

In stock

23025

LAMP-TAIL

23025-0011

1

$153.95

In stock

23026

LENS,TAIL LAMP

23026-1183

1

$41.96

In stock

92009

SCREW,TAPPING,4X20

92009-1378

1
Out of stock

92019

NUT,LOCK,6MM

92019-008

1

$3.36

In stock

92022

WASHER,6.5X20X1.6

92022-1557

1

$1.25

In stock

92027

COLLAR,6.8X10X12

92027-162

1

$5.21

In stock

92069

BULB,12V 21/5W

92069-063

1

$7.39

In stock

92160

DAMPER

92160-1162

1

$3.97

In stock

92170

CLAMP

92170-1514

1

$3.43

In stock
