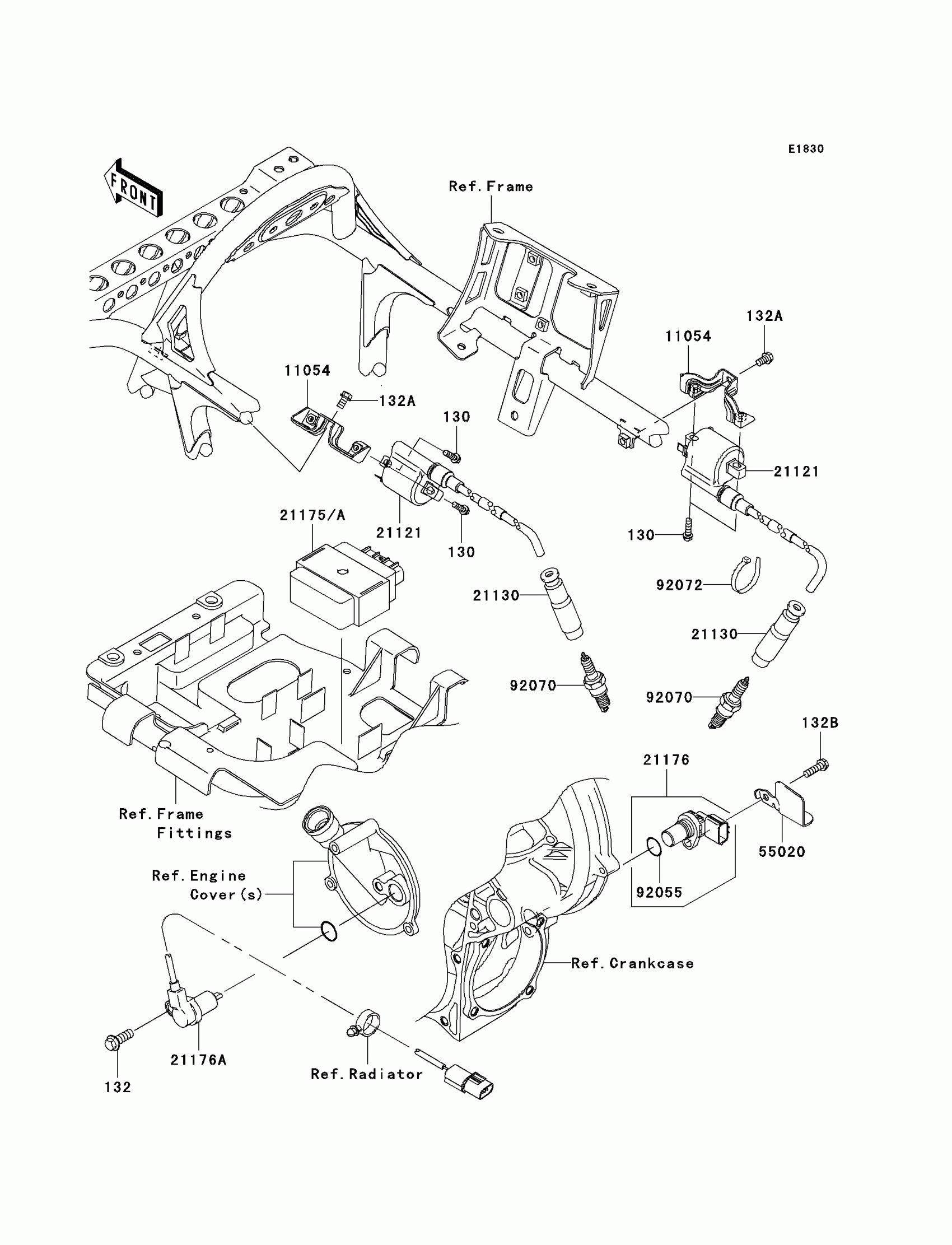

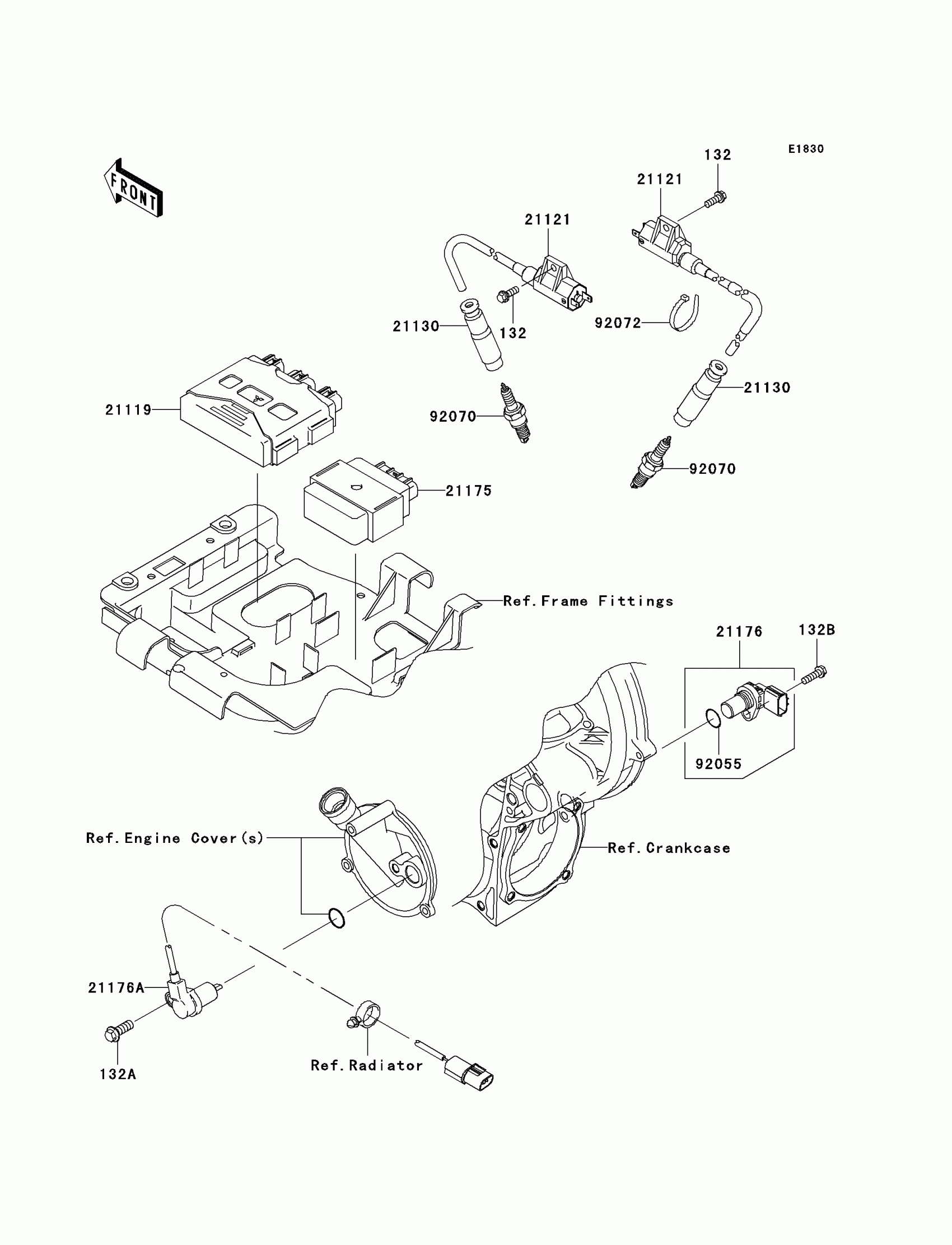

Find the part on the Ignition System diagram for your 2005 Kawasaki Brute Force 750 4x4i, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Brute Force 750 4x4i Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL

132H0616

1
Out of stock

132A

BOLT-FLANGED-SMALL,8X22

132H0822

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X20

132Y0620

1
Out of stock

21119

IGNITER

21119-0025

1
Out of stock

21121

COIL-IGNITION

21121-0018

1
Out of stock

21130

CAP-SPARK PLUG

21130-1071

1
Out of stock

21175

CONTROL UNIT-ELECTRONIC

21175-0086

1
Out of stock

21176

SENSOR,SPEED

21176-1104

1
Out of stock

21176A

SENSOR,REVERSE

21176-1109

1
Out of stock

92055

RING-O

92055-1718

1
Out of stock

92070

PLUG-SPARK,CR7E(NGK)

92070-1209

1
Out of stock

92072

BAND,L=188

92072-1239

1
Out of stock
