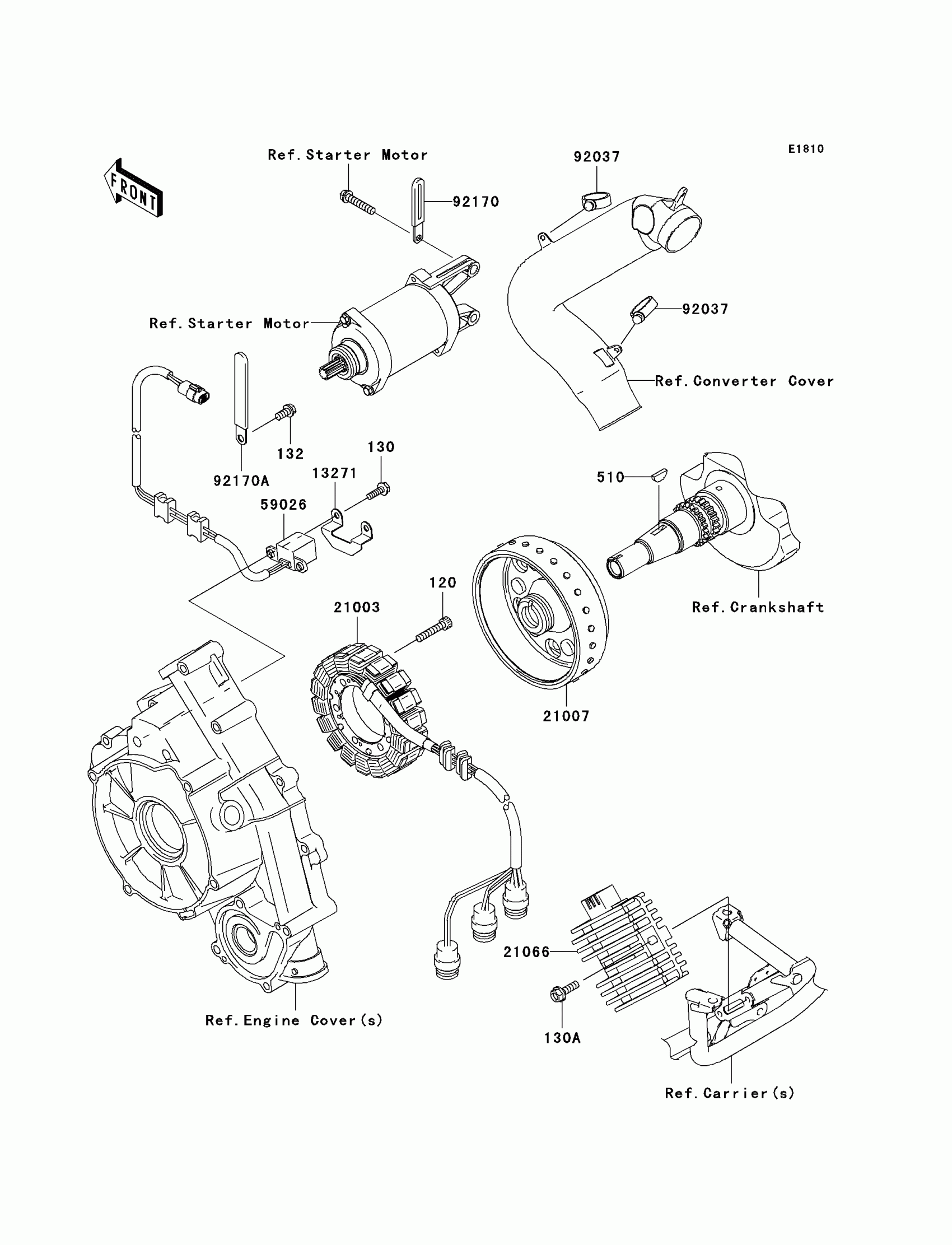

Kawasaki Brute Force 750 4x4i Generator Diagram

Description

Price

120

BOLT-SOCKET,6X28

120P0628

Unavailable

130

BOLT-FLANGED

130G0516

Unavailable

130A

BOLT-FLANGED

130J0620

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132Y0612

Unavailable

510

KEY-WOODRUFF

510A4200

$2.04

13271

PLATE

13271-1369

$2.37

21003

STATOR

21003-0012

$575.34

21007

ROTOR

21007-0013

$613.79

21066

REGULATOR-VOLTAGE

21066-1127

Unavailable

59026

COIL-PULSING

59026-0005

$96.47

92037

CLAMP,HOSE

92037-1827

$5.69

92170

CLAMP

92170-1514

$3.29

92170A

CLAMP

92170-1925

$1.98
