2005 Kawasaki Brute Force 750 4x4i Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2005 Kawasaki Brute Force 750 4x4i, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

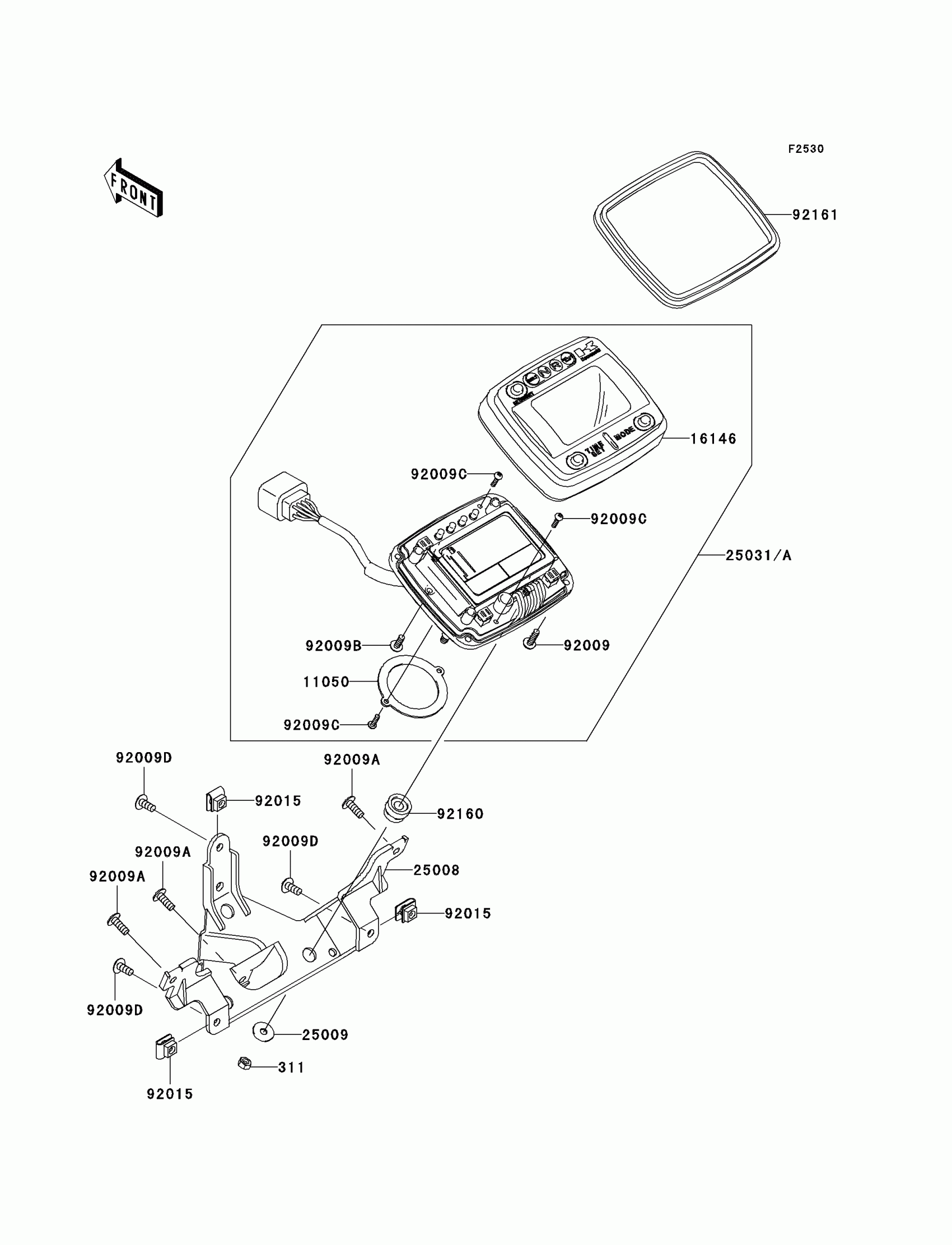

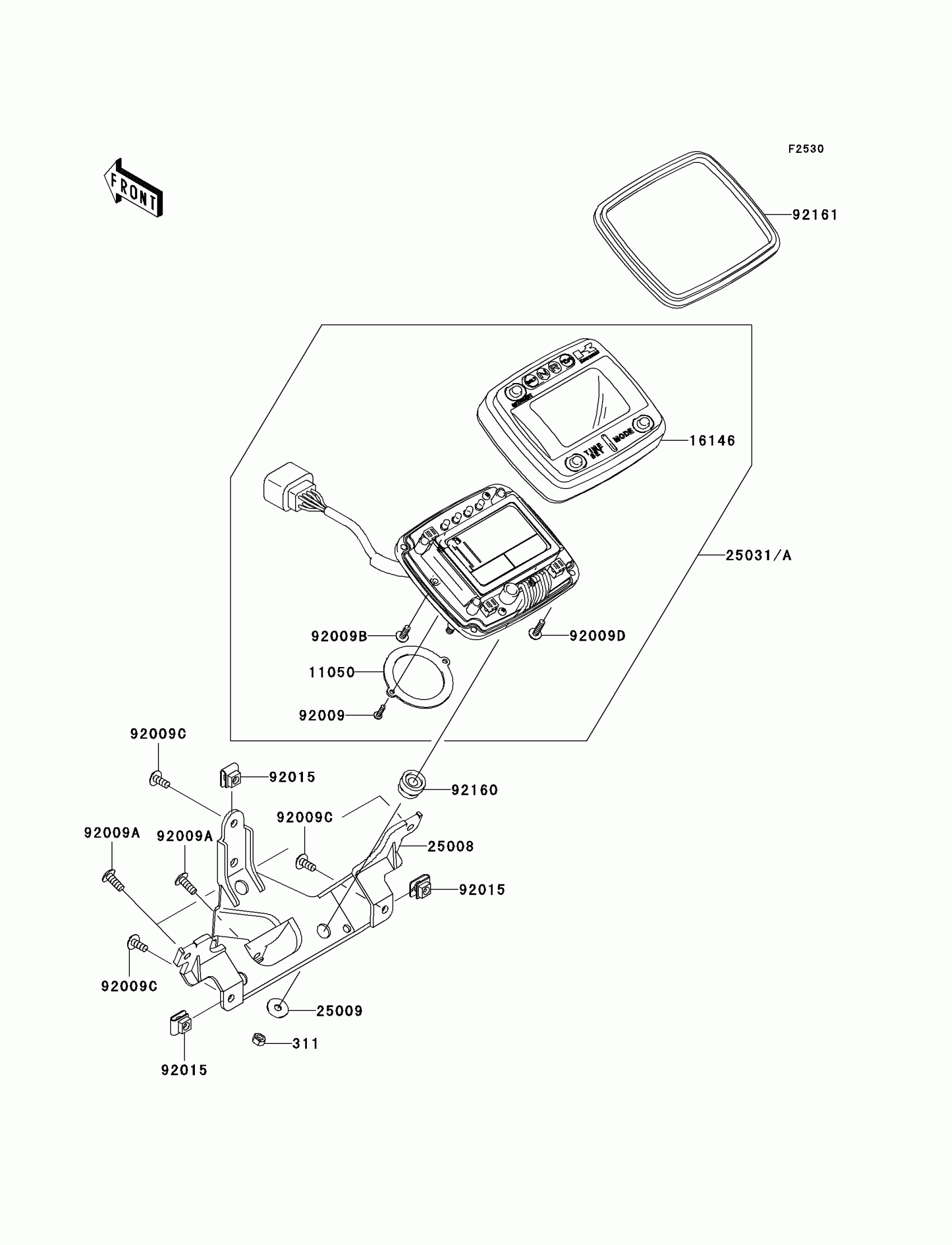

2005 Kawasaki Brute Force 750 4x4i Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

311

NUT-HEX

311C0500

1
Out of stock

11050

BRACKET,METER

11050-1932

1
Out of stock

16146

COVER-ASSY,UPPER

16146-0011

1
Out of stock

25008

BRACKET-METER

25008-0003

1
Out of stock

25009

WASHER,5.2X16X1.2

25009-004

1
Out of stock

92009

SCREW,TAPPING,3X12

92009-1028

1
Out of stock

92009A

SCREW,TAPPING,5X14

92009-1197

1
Out of stock

92009B

SCREW,TAPPING,4X12

92009-1254

1
Out of stock

92009C

SCREW,5X12

92009-1652

1
Out of stock

92009D

SCREW,6X18

92009-1663

1
Out of stock

92015

NUT,5MM

92015-1573

1
Out of stock

92160

DAMPER

92160-1460

1
Out of stock

92161

DAMPER,METER,UPP

92161-1114

1
Out of stock

25031

METER-ASSY,MPH

25031-0034

1
Out of stock

25031A

METER-ASSY,KPH

25031-0057

1
Out of stock
