2005 Kawasaki Brute Force 750 4x4i Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2005 Kawasaki Brute Force 750 4x4i, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

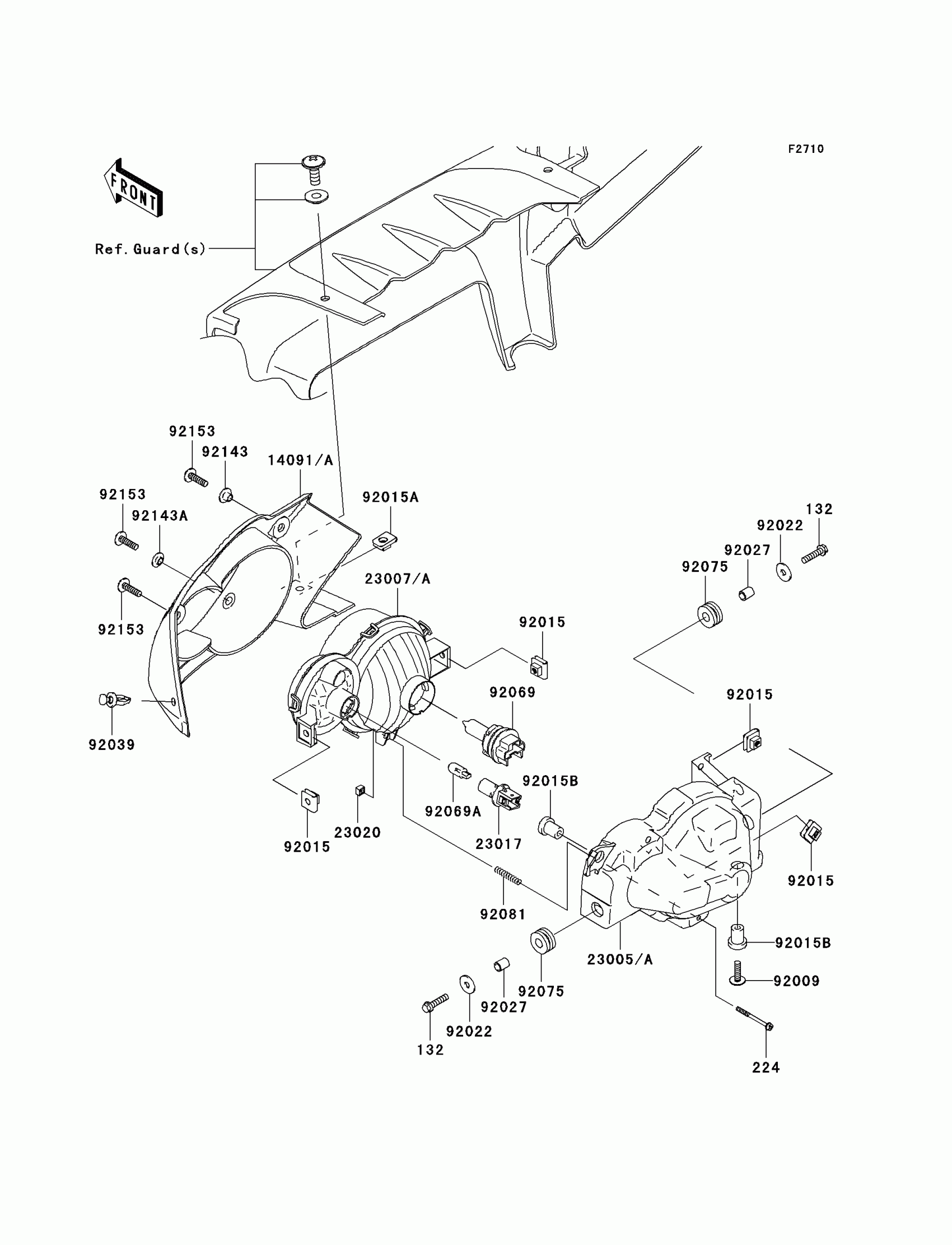

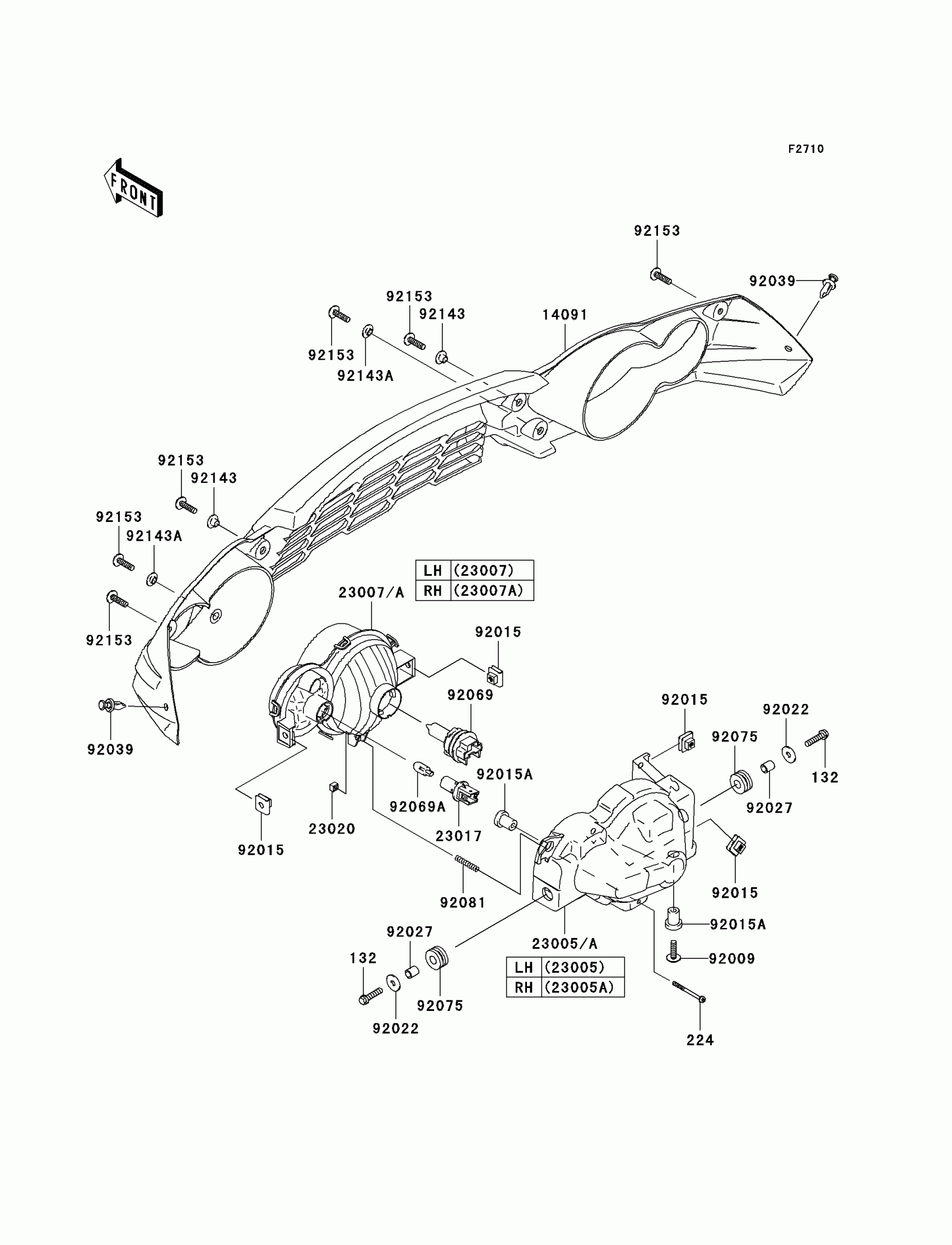

2005 Kawasaki Brute Force 750 4x4i Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X25

132H0625

1
Out of stock

224

SCREW-PAN-WP-CROS,4X45

224D0445

1
Out of stock

14091

COVER,HEAD LAMP,LH,F.BLACK

14091-0132-6Z

1
Out of stock

14091A

COVER,HEAD LAMP,RH,F.BLACK

14091-0133-6Z

1
Out of stock

23005

BODY-COMP-HEAD LAMP,LH

23005-0006

1
Out of stock

23005A

BODY-COMP-HEAD LAMP,RH

23005-0007

1
Out of stock

23007

LENS-COMP,HEAD LAMP,LH

23007-0024

1
Out of stock

23007A

LENS-COMP,HEAD LAMP,RH

23007-0025

1
Out of stock

23017

SOCKET,HEAD LAMP

23017-0001

1
Out of stock

23020

NUT,4MM,FOCUS ADJUST

23020-018

1
Out of stock

92009

SCREW

92009-1664

1
Out of stock

92015

NUT,6MM

92015-1094

1
Out of stock

92015A

NUT,6MM

92015-1602

1
Out of stock

92015B

NUT,RUBBER,6MM

92015-1692

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-125

1
Out of stock

92027

COLLAR,6.8X10X12

92027-162

1
Out of stock

92039

RIVET

92039-1229

1
Out of stock

92069

BULB,12V 40/40W

92069-0005

1
Out of stock

92069A

BULB,12V 5W

92069-0006

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1
Out of stock

92081

SPRING,FOCUS ADJUST

92081-1896

1
Out of stock

92143

COLLAR

92143-1057

1
Out of stock

92143A

COLLAR

92143-1087

1
Out of stock

92153

BOLT,SOCKET,6X22

92153-0574

1
Out of stock
