2013 Kawasaki Brute Force® 750 4x4i EPS Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2013 Kawasaki Brute Force® 750 4x4i EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

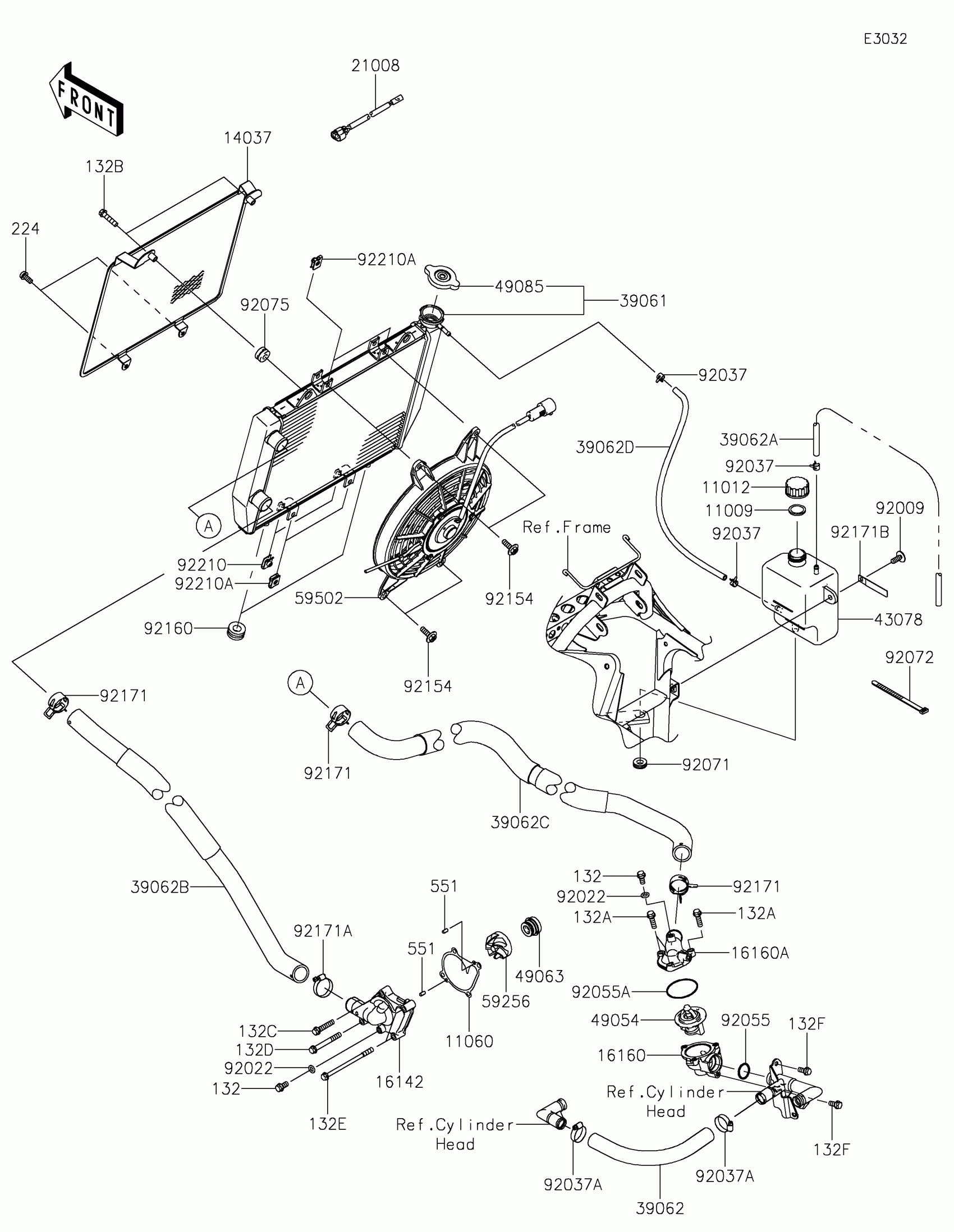

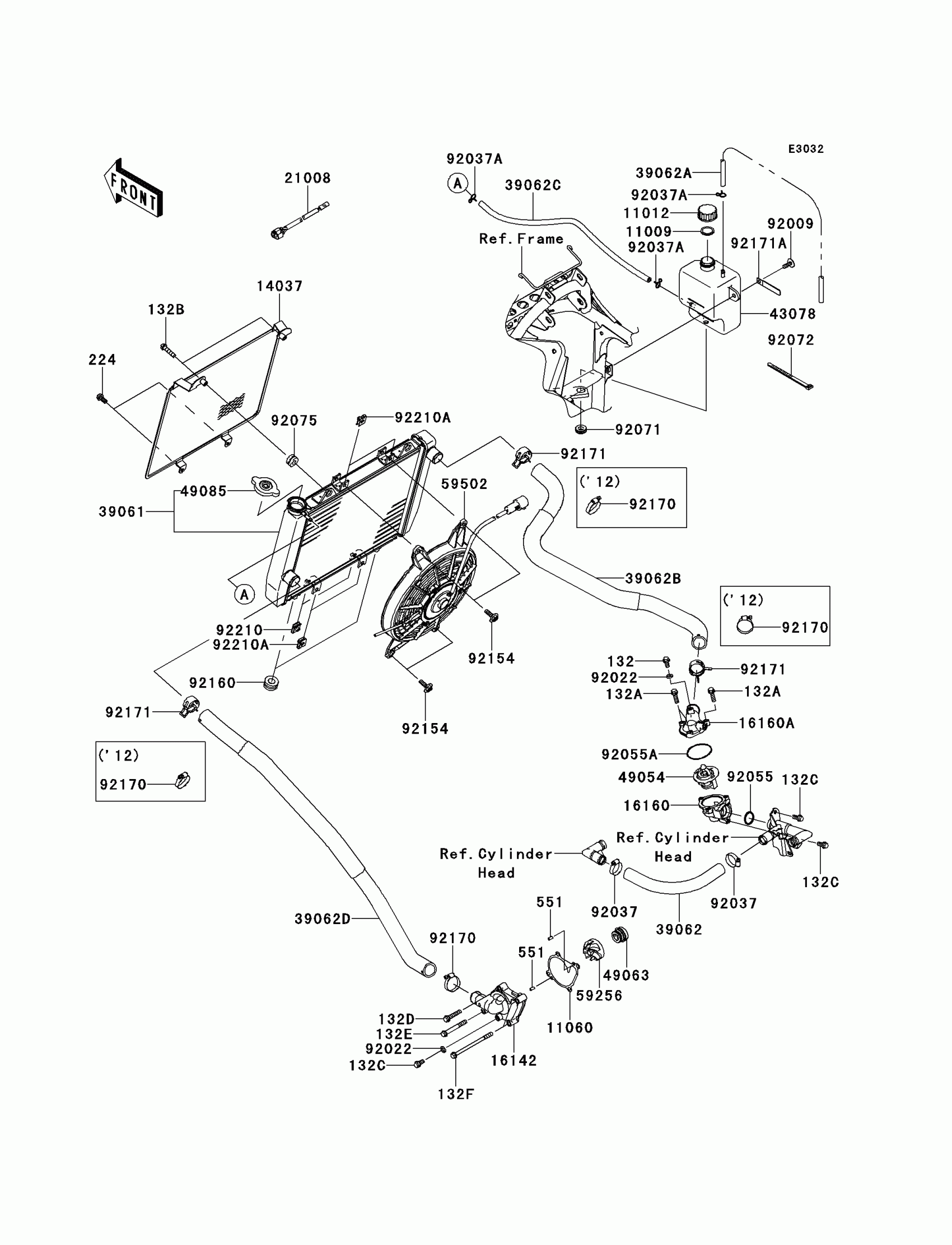

2013 Kawasaki Brute Force® 750 4x4i EPS Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$1.12

In stock

132A

1

$2.05

In stock

132B

1

$2.29

In stock

132C

1

$1.73

In stock

11009

GASKET,RESERVOIR TANK CAP

11009-1145

1
Out of stock

11012

CAP

11012-1084

1
Out of stock

11060

GASKET,WATER PUMP

11060-1964

1
Out of stock

14037

SCREEN

14037-0742

1

$77.42

In stock

16142

COVER-PUMP,WATER

16142-0069

1
Out of stock

16160

BODY,THERMOSTAT,LWR

16160-0189

1
Out of stock

16160A

BODY,THERMOSTAT,UPP

16160-0225

1
Out of stock

21008

BREAKER,FAN MOTOR

21008-0555

1
Out of stock

39061

RADIATOR-ASSY

39061-0587

1

$464.50

In stock

39062

1

$11.58

In stock

39062A

1

$7.44

In stock

39062B

1

$23.63

In stock

39062C

1

$3.22

In stock

39062D

1

$23.85

In stock

43078

RESERVOIR

43078-0070

1
Out of stock

49054

THERMOSTAT

49054-1055

1
Out of stock

49063

SEAL-MECHANICAL

49063-1055

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-0005

1
Out of stock

59256

IMPELLER

59256-1069

1
Out of stock

59502

FAN-ASSY

59502-0554

1
Out of stock

92009

SCREW,6X16

92009-1694

1
Out of stock

92022

WASHER,6.2X11X1

92022-304

1
Out of stock

92037

CLAMP,COOLING HOSE

92037-1589

1
Out of stock

92037A

CLAMP

92037-1712

1
Out of stock

92055

RING-O,22.1X2.4

92055-1081

1
Out of stock

92055A

RING-O,44.7X2.4

92055-1279

1
Out of stock

92071

GROMMET

92071-1115

1
Out of stock

92072

BAND,L=149

92072-031

1
Out of stock

92075

DAMPER RUBBER,RR FENR

92075-209

1
Out of stock

92154

BOLT,6X12

92154-0741

1
Out of stock

92160

DAMPER

92160-1007

1
Out of stock

92170

CLAMP,COOLING HOSE

92170-1284

1

$6.51

In stock

92171

CLAMP,COOLING HOSE

92171-0060

1

$3.50

In stock

92171A

CLAMP,L=60

92171-0652

1
Out of stock

92210

NUT

92210-0754

1
Out of stock

92210A

NUT

92210-1323

1
Out of stock

132D

1

$2.92

In stock

132E

1

$4.24

In stock

132F

1

$3.12

In stock

224

SCREW-PAN-WP-CROS,6X14

224AB0614

1
Out of stock

551

PIN-DOWEL,4X8

551A0408

1
Out of stock
