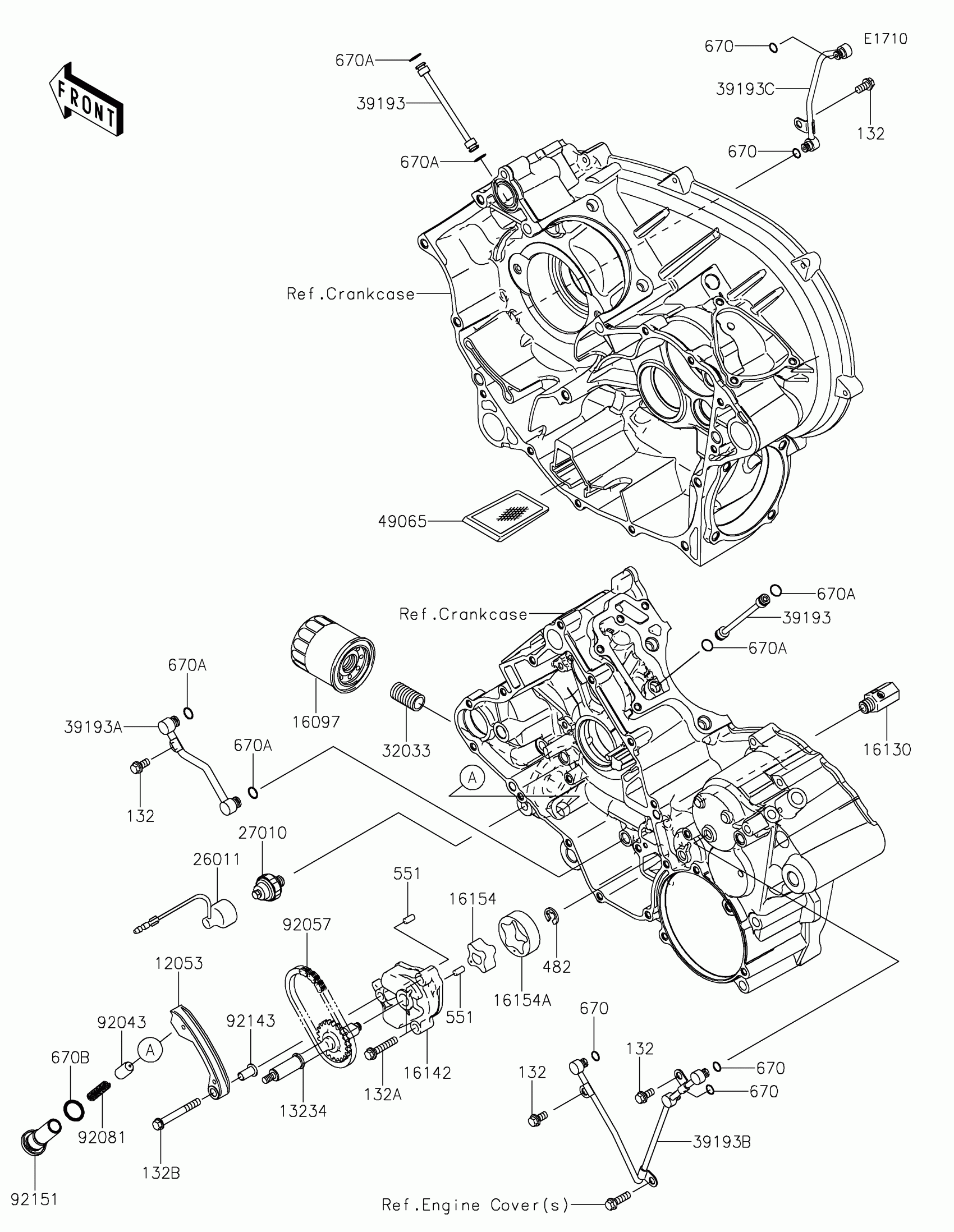

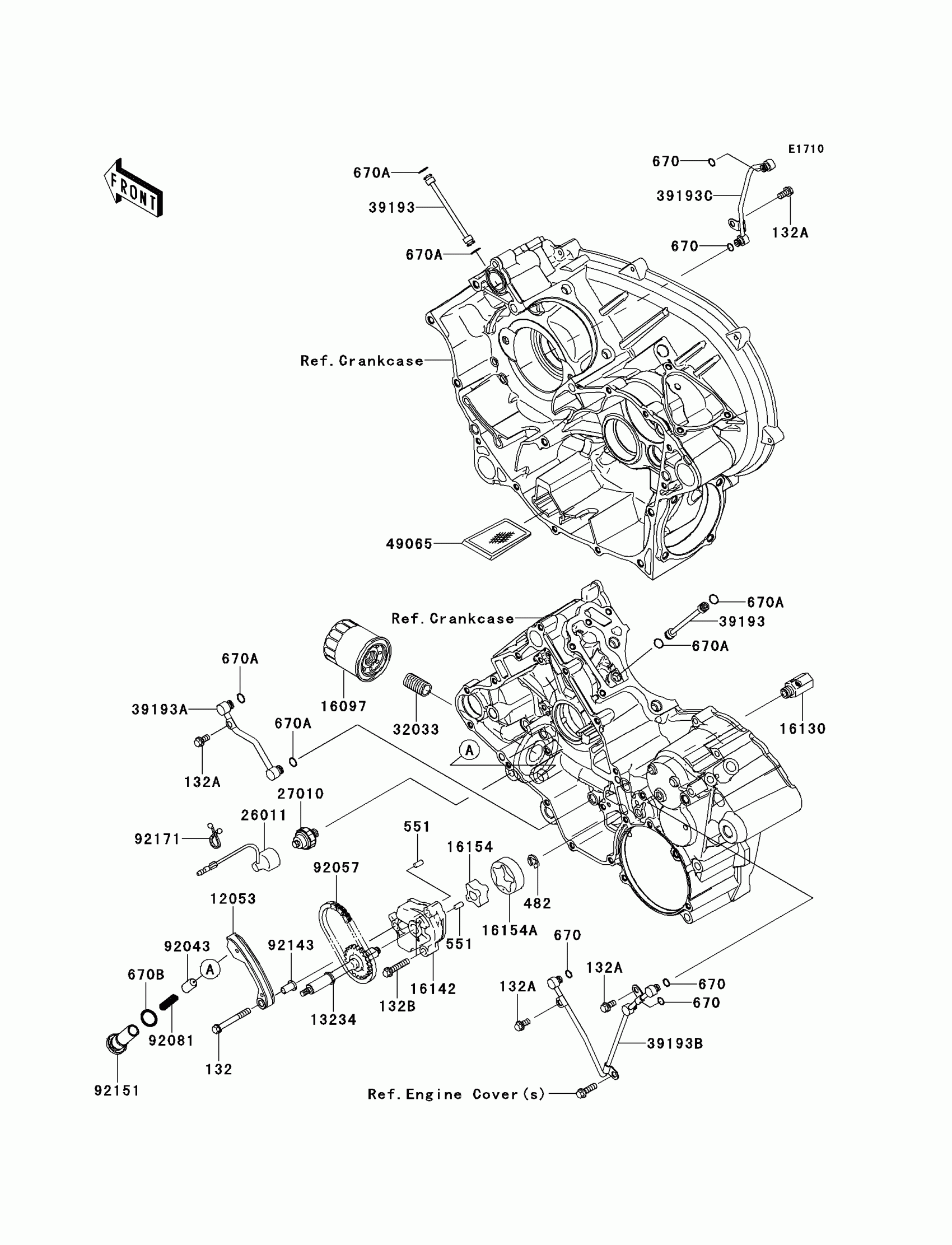

Kawasaki BRUTE FORCE® 750 4x4i EPS Oil Pump/Oil Filter Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X50

132BB0650

$4.24

132A

BOLT-FLANGED-SMALL,6X12

132BD0612

$1.49

132B

BOLT-FLANGED-SMALL,6X30

132BD0630

$2.79

482

CIRCLIP-TYPE-E,6MM

482J6000

$0.65

551

PIN-DOWEL,4X8

551A0408

$0.68

670

O RING

670D1505

$3.29

670A

O RING,7MM

670D1507

$1.24

670B

O RING,16MM

670D2016

$1.24

12053

GUIDE-CHAIN,SLACK

12053-1440

$50.48

13234

SHAFT-COMP,OIL PUMP

13234-1112

$58.48

16097

FILTER-ASSY-OIL

16097-0003

Unavailable

16130

VALVE-ASSY-RELIEF

16130-1058

$37.32

16142

COVER-PUMP

16142-1162

$34.05

16154

ROTOR-PUMP,INNER

16154-2059

$5.43

16154A

ROTOR-PUMP,OUTER

16154-2060

$7.82

26011

WIRE-LEAD

26011-1755

$20.61

27010

SWITCH,OIL PRESSURE

27010-1313

$35.72

32033

PIPE,OIL FILTER

32033-1535

$9.85

39193

PIPE-OIL,CRANKCASE-HEAD

39193-0015

$27.18

39193A

PIPE-OIL,CRANKSHAFT

39193-1052

$57.57

39193B

PIPE-OIL,CRANKCASE,LH

39193-1053

$129.83

39193C

PIPE-OIL,CRANKCASE,RH

39193-1054

$60.19

49065

FILTER-OIL

49065-1086

$10.38

92043

92043-076

$11.22

92057

CHAIN,DID SCR-0409 SV

92057-0188

$29.60

92081

SPRING

92081-112

$5.37

92143

COLLAR

92143-1857

$2.59

92151

BOLT,16X41

92151-1781

$29.26

92171

CLAMP

92171-1329

$2.08
