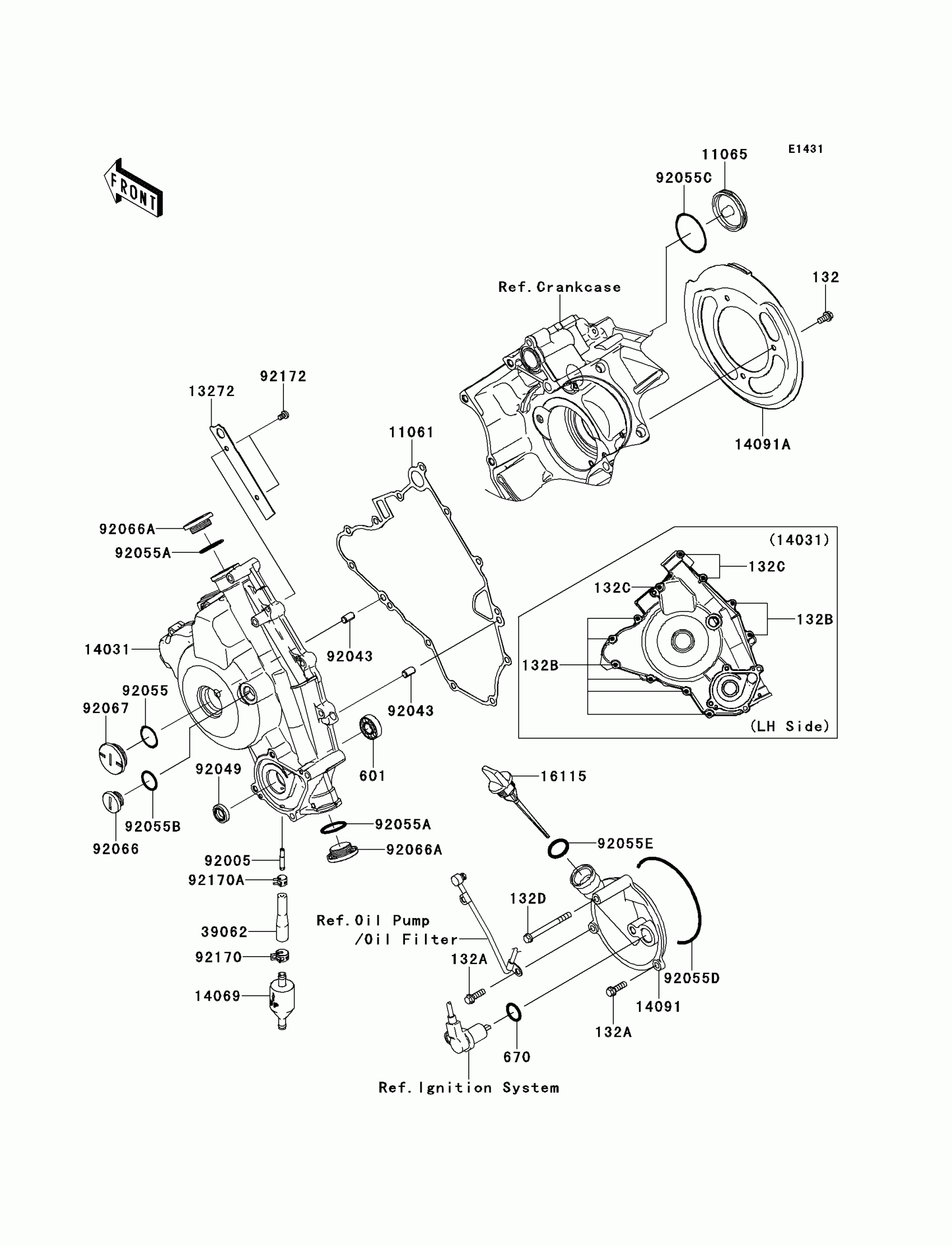

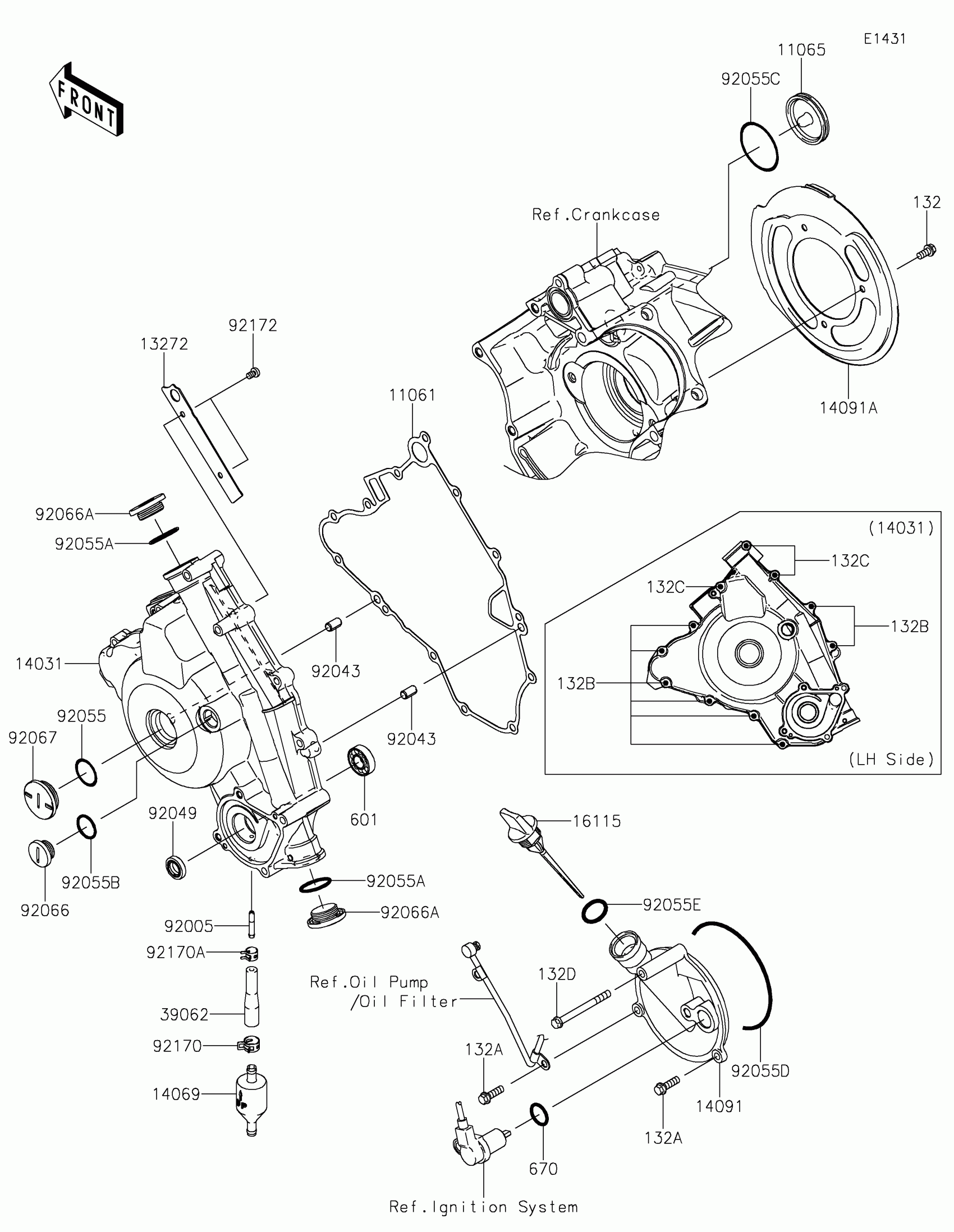

Kawasaki BRUTE FORCE® 750 4x4i EPS Engine Cover(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132BD0612

$1.49

132A

BOLT-FLANGED-SMALL,6X20

132BD0620

$3.14

132B

BOLT-FLANGED-SMALL,6X30

132BD0630

$2.79

132C

BOLT-FLANGED-SMALL,6X55

132BD0655

$4.46

132D

BOLT-FLANGED-SMALL,6X65

132BD0665

$3.63

601

BEARING-BALL

601A6001

$8.88

670

O RING,18MM

670D2018

$1.39

11061

GASKET

11061-1119

$17.11

11065

CAP

11065-1151

$12.34

13272

PLATE

13272-1090

$3.20

14031

COVER-GENERATOR

14031-0127

$168.01

14069

BREATHER

14069-1051

$7.76

14091

COVER

14091-1365

$75.02

14091A

COVER,BELT CONVERTER

14091-1571

$20.42

16115

CAP-OIL FILLER

16115-0001

$13.47

39062

HOSE-COOLING,CARBURETOR-VALVE

39062-1382

$4.49

92005

FITTING

92005-1264

$7.44

92043

PIN,6.2X8X14

92043-1263

$0.46

92049

SEAL-OIL,SC 12X22X5

92049-1228

$7.08

92055

RING-O,27.7X2.4

92055-091

$4.67

92055A

RING-O,25.7X2.4

92055-1136

$3.81

92055B

RING-O,20X2

92055-1146

$6.55

92055C

RING-O,44.7X2.4

92055-1279

$5.61

92055D

RING-O,99.5X2.0

92055-1632

$8.49

92055E

RING-O,20X3

92055-2185

$0.84

92066

PLUG,COVER

92066-0011

$12.09

92066A

PLUG,25X8

92066-0012

$8.90

92067

PLUG,30X8

92067-024

$8.59

92170

CLAMP

92170-1492

$3.81

92170A

CLAMP

92170-1493

$3.81

92172

SCREW,5X8

92172-0119

$1.54
