2013 Kawasaki Brute Force® 750 4x4i EPS Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2013 Kawasaki Brute Force® 750 4x4i EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

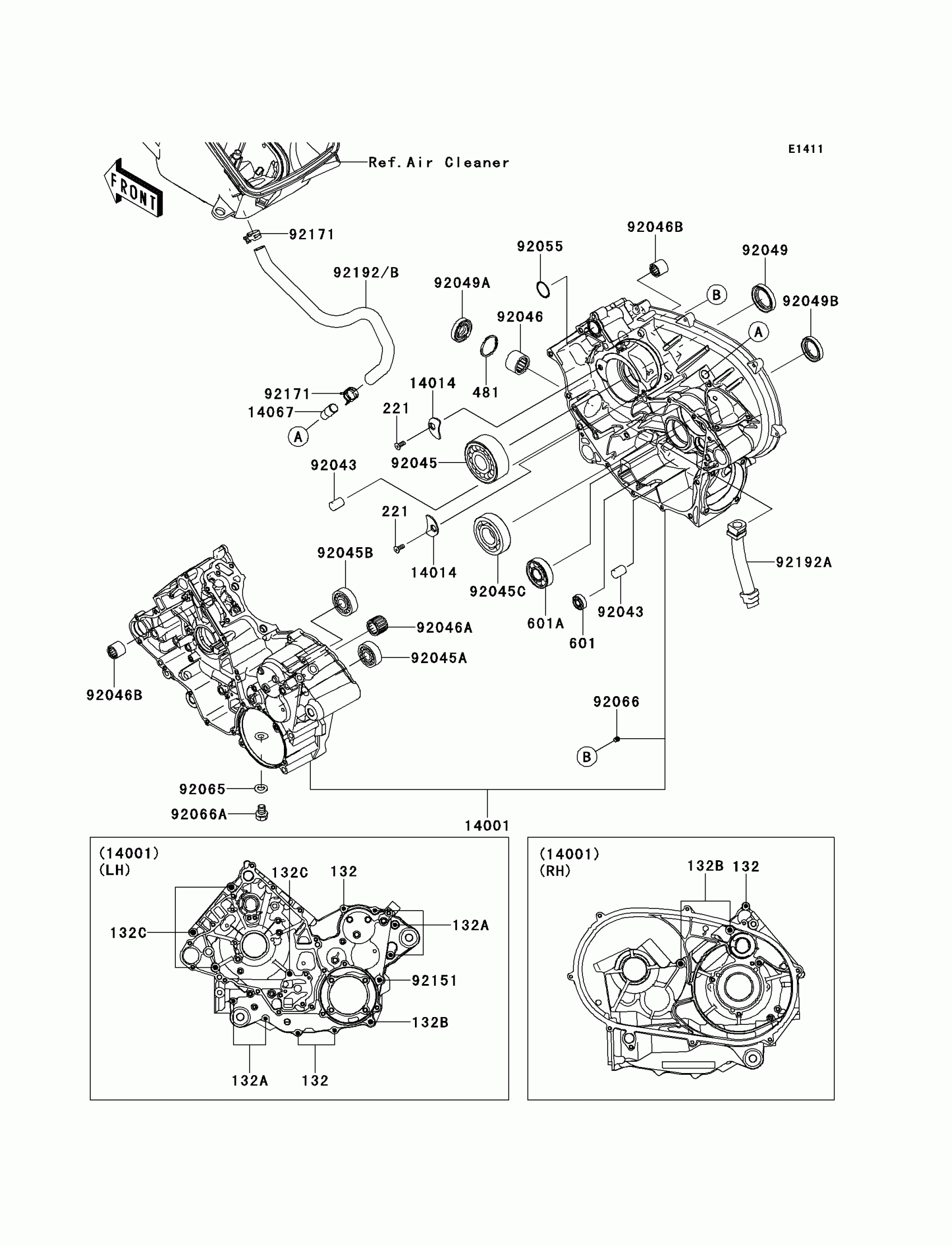

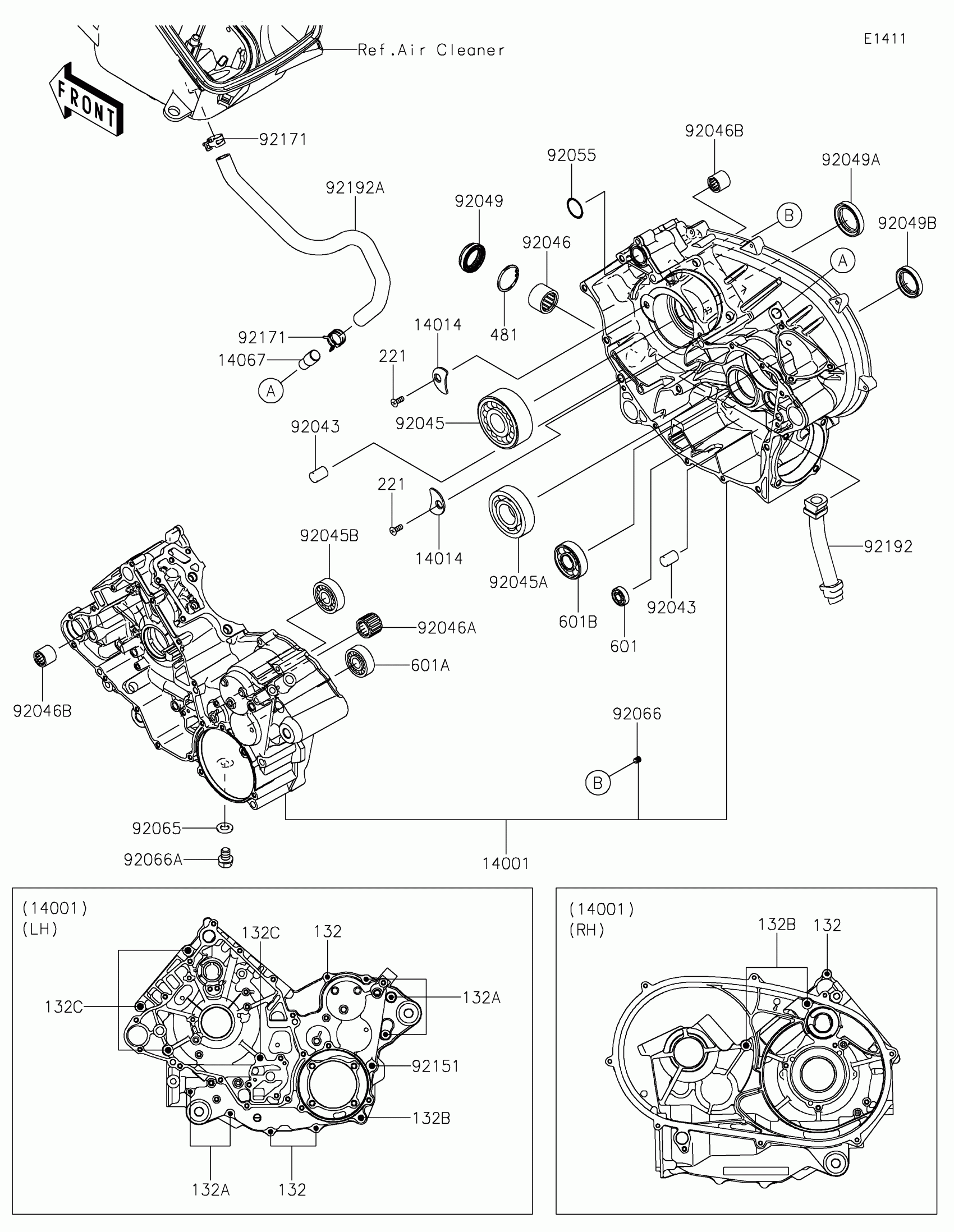

2013 Kawasaki Brute Force® 750 4x4i EPS Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$4.16

In stock

132A

1

$3.78

In stock

132B

1

$4.59

In stock

132C

1

$2.53

In stock

221

SCREW-CSK-CROS,6X16

221AA0616

1
Out of stock

481

CIRCLIP-TYPE-C,37MM

481J3700

1
Out of stock

601

BEARING-BALL

601A6000

1
Out of stock

601A

BEARING-BALL,#6304

601A6304

1
Out of stock

14001

SET-CRANKCASE

14001-0562

1

$1,208.34

In stock

14014

PLATE-POSITION

14014-0006

1

$13.97

In stock

14067

FITTING,BREATHER

14067-006

1

$19.78

In stock

92043

PIN,10X14

92043-1506

1
Out of stock

92045

BEARING-BALL,5208X2-A-ECG45

92045-0012

1
Out of stock

92045A

BEARING-BALL,#6004

92045-0076

1
Out of stock

92045B

BEARING-BALL,6303LUA

92045-0091

1
Out of stock

92045C

BEARING-BALL,6306SH2

92045-1190

1
Out of stock

92046

BEARING-NEEDLE

92046-0022

1
Out of stock

92046A

BEARING-NEEDLE

92046-0039

1
Out of stock

92046B

BEARING-NEEDLE,TA202715ZE

92046-1118

1
Out of stock

92049

SEAL-OIL,TC 35X50X8

92049-1452

1
Out of stock

92049A

SEAL-OIL,TCY 28X42X8

92049-1570

1
Out of stock

92049B

SEAL-OIL,HTC 30X45X8

92049-1575

1
Out of stock

92055

RING-O,25.7X2.4

92055-1136

1
Out of stock

92065

GASKET,12X22X2

92065-097

1
Out of stock

92066

PLUG,OIL LINE,7.2X8

92066-1012

1
Out of stock

92066A

PLUG,OIL DRAIN,12X15

92066-1174

1
Out of stock

92151

BOLT,8X110

92151-1689

1
Out of stock

92171

CLAMP

92171-0329

1

$7.06

In stock

92192A

TUBE,OIL RETURN

92192-0970

1
Out of stock

92192B

TUBE,CRANKCASE-A/C

92192-1157

1
Out of stock
