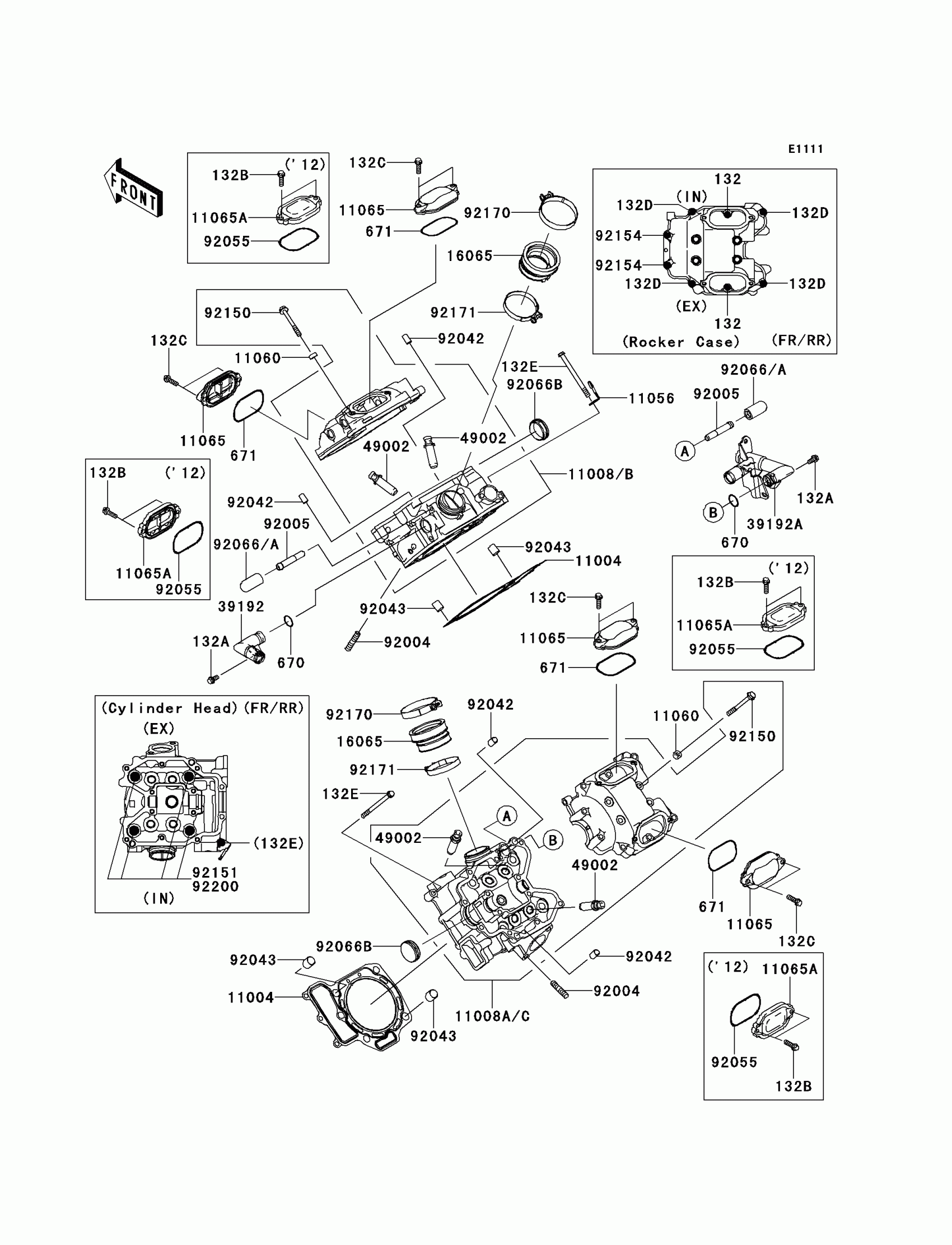

Kawasaki BRUTE FORCE® 750 4x4i EPS Cylinder Head(-VF750DE095936) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$1.98

132A

BOLT-FLANGED-SMALL,6X12

132BD0612

$1.49

132C

BOLT-FLANGED-SMALL,6X25

132BD0625

$4.09

132D

BOLT-FLANGED-SMALL,6X30

132BD0630

$2.79

132E

BOLT-FLANGED-SMALL,6X95

132BD0695

$5.69

670

O RING,16MM

670B2016

$1.04

671

O RING,55MM

671D2555

$2.76

11004

GASKET-HEAD

11004-0011

$25.79

11008

HEAD-COMP-CYLINDER,FR

11008-0073

$986.41

11008A

HEAD-COMP-CYLINDER,RR

11008-0074

$932.41

11056

BRACKET

11056-1255

$3.93

11060

GASKET,6.2X12X0.3

11060-1994

$1.71

11065

CAP,ROCKER CASE

11065-0724

$10.77

16065

HOLDER-CARBURETOR

16065-0113

$11.10

39192

PIPE-WATER,FR

39192-0119

$37.14

39192A

PIPE-WATER,RR

39192-0120

$86.54

49002

GUIDE-VALVE

49002-1097

$22.44

92004

STUD,8X22

92004-1217

$4.27

92005

FITTING

92005-1264

$7.44

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92043

PIN,10.1X12X14

92043-4009

$4.67

92066A

PLUG

92066-0713

$3.19

92066B

PLUG

92066-1289

$10.91

92150

BOLT,6X55

92150-1302

$4.78

92151

BOLT,FLANGED,10X150

92151-1917

$16.19

92154

BOLT,FLANGED,6X130

92154-0993

$3.93

92170

CLAMP

92170-1448

$6.18

92171

CLAMP

92171-0722

$11.53

92200

WASHER,11.5X20.5X1.6

92200-1128

$4.18
