2013 Kawasaki Brute Force® 750 4x4i Eps Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2013 Kawasaki Brute Force® 750 4x4i Eps, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

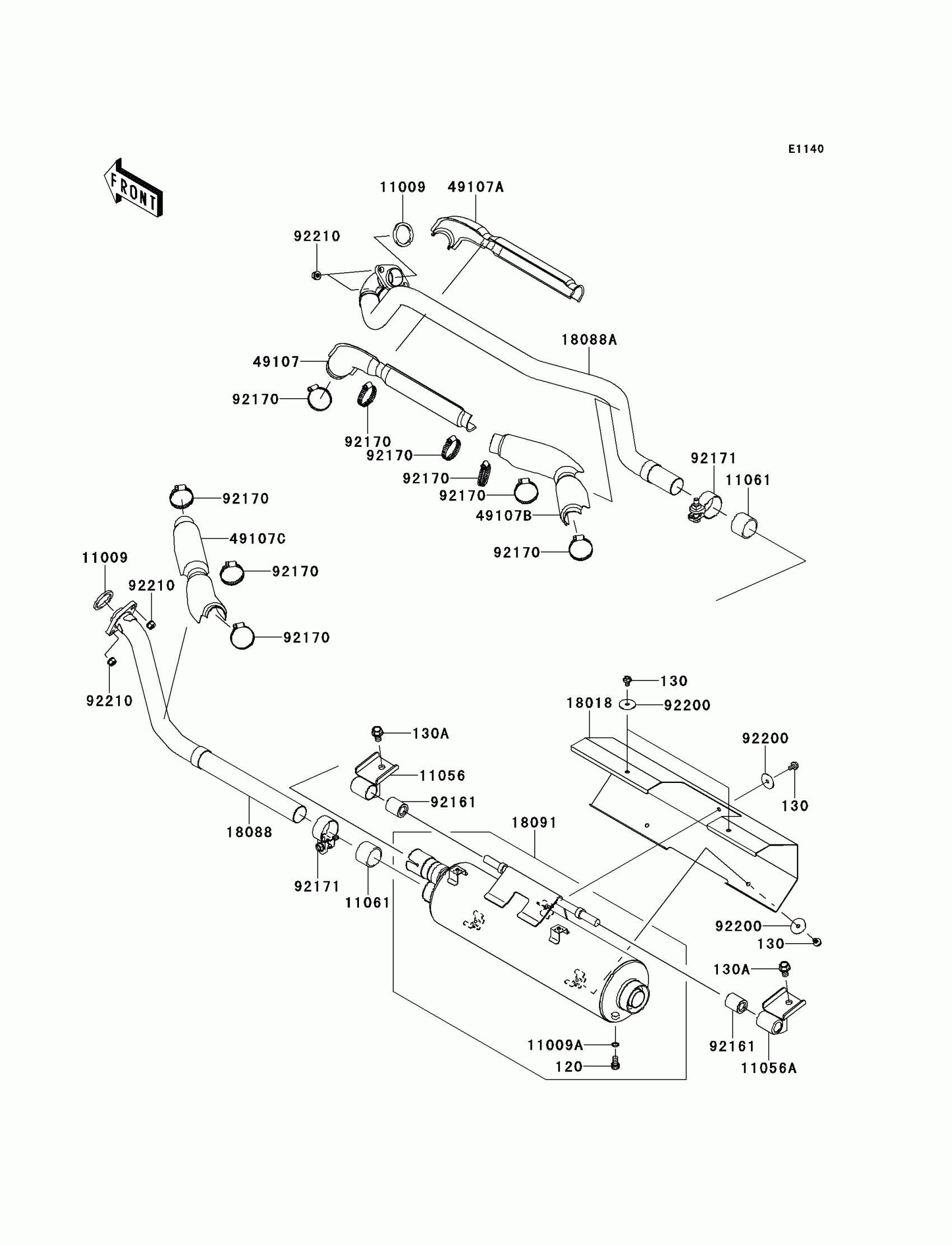

2013 Kawasaki Brute Force® 750 4x4i Eps Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X14

120CB0814

1
Out of stock

130

BOLT-FLANGED,6X10

130BD0610

1
Out of stock

130A

BOLT-FLANGED,10X16

130CA1016

1
Out of stock

11009

GASKET,EXHAUST HOLDER

11009-1894

1
Out of stock

11009A

GASKET

11009-3028

1
Out of stock

11056

BRACKET,MUFFLER,FR

11056-0532

1
Out of stock

11056A

BRACKET,MUFFLER,RR

11056-0533

1
Out of stock

11061

GASKET,MUFFLER CONNECTING

11061-0360

1
Out of stock

18018

PLATE-HEAT GUARD

18018-0553

1
Out of stock

18088

PIPE-EXHAUST,RR

18088-0713

1
Out of stock

18088A

PIPE-EXHAUST,FR

18088-0728

1
Out of stock

18091

BODY-COMP-MUFFLER

18091-0841

1
Out of stock

49107

COVER-EXHAUST PIPE,FR-F,LH

49107-0715

1
Out of stock

49107A

COVER-EXHAUST PIPE,FR-F,RH

49107-0716

1
Out of stock

49107B

COVER-EXHAUST PIPE,FR-R

49107-0717

1
Out of stock

49107C

COVER-EXHAUST PIPE,RR

49107-0718

1
Out of stock

92161

DAMPER

92161-0961

1
Out of stock

92170

CLAMP

92170-1036

1
Out of stock

92171

CLAMP

92171-1330

1
Out of stock

92200

WASHER,6.5X12X2

92200-0511

1
Out of stock

92210

NUT,8MM

92210-1242

1
Out of stock
