2005 Kawasaki Brute Force 650 4x4 Drive Converter Diagram

← All diagrams

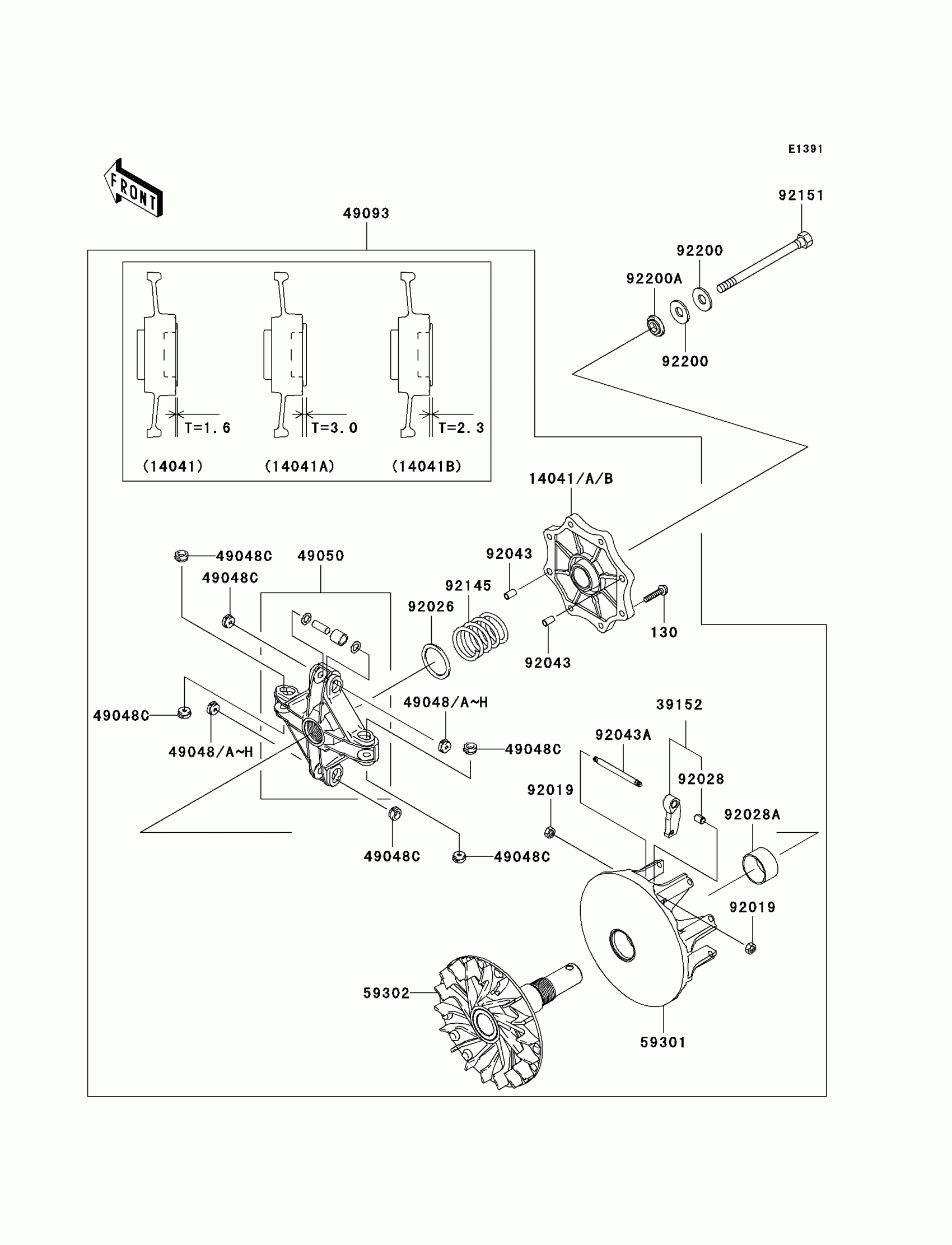

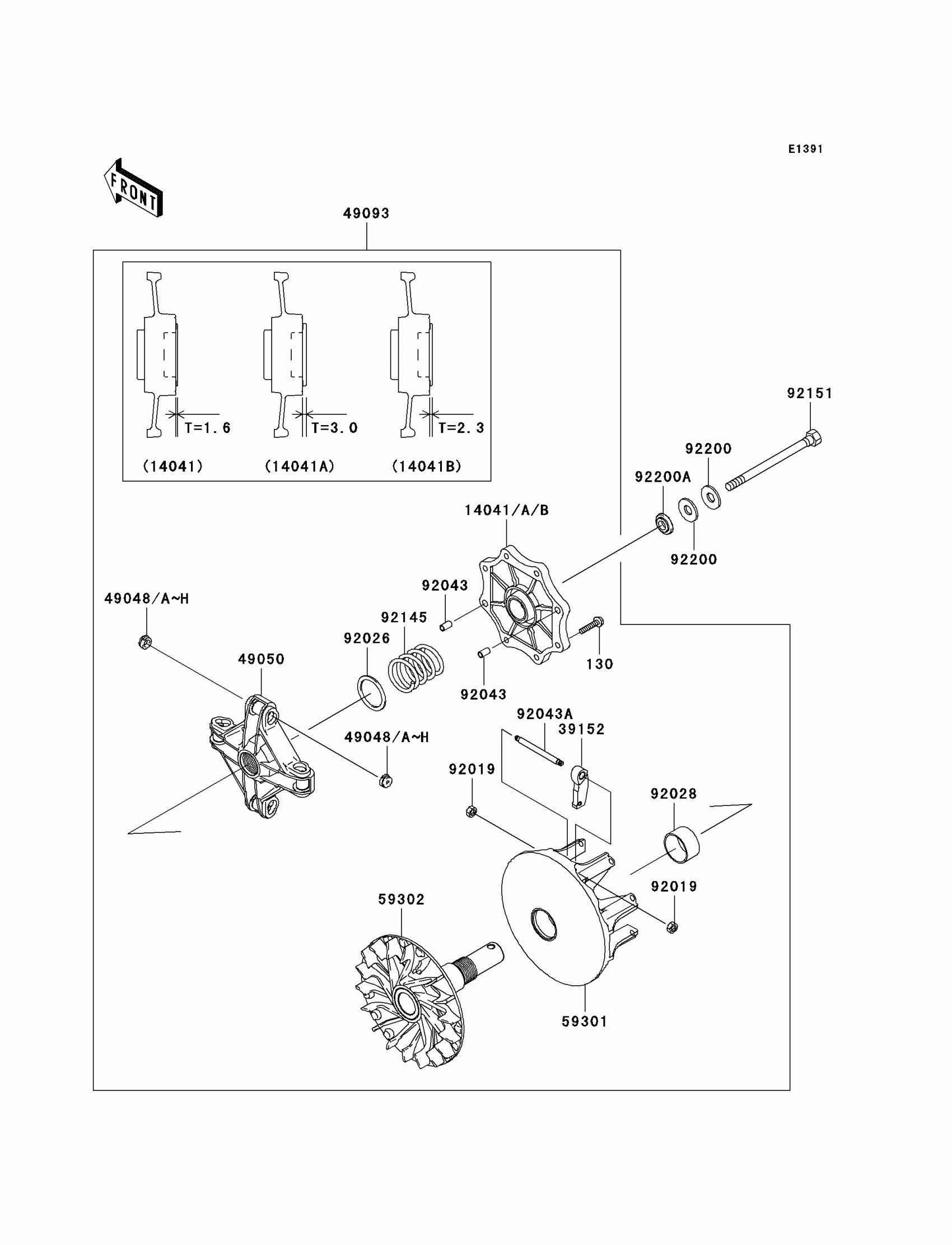

Find the part on the Drive Converter diagram for your 2005 Kawasaki Brute Force 650 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Brute Force 650 4x4 Drive Converter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X30

130T0630

1
Out of stock

14041

COVER-COMP,RED

14041-1159

—

$119.10

In stock

14041A

COVER-COMP,BLUE

14041-1160

—

$119.10

In stock

14041B

COVER-COMP,STD

14041-1161

—

$119.10

In stock

39152

WEIGHT-RAMP

39152-1081

1

$57.88

In stock

49048

SHOE,T=7.2

49048-1087

—
Out of stock

49048A

SHOE,T=7.3

49048-1088

—
Out of stock

49048B

SHOE,T=7.4

49048-1089

—
Out of stock

49048C

SHOE,T=7.5

49048-1090

1
Out of stock

49048D

SHOE,T=7.6

49048-1091

—
Out of stock

49048E

SHOE,T=7.7

49048-1092

—
Out of stock

49048F

SHOE,T=7.8

49048-1093

—
Out of stock

49048G

SHOE,T=7.9

49048-1094

—
Out of stock

49048H

SHOE,T=8.0

49048-1095

—
Out of stock

49050

SPIDER

49050-1081

1
Out of stock

49093

CONVERTER-ASSY-DRIVE

49093-0011

1
Out of stock

59301

SHEAVE-MOVABLE

59301-1070

1
Out of stock

59302

SHEAVE-COMP

59302-0003

1
Out of stock

92019

NUT,LOCK,6MM

92019-008

1
Out of stock

92026

SPACER,39X49.5X1.0

92026-1603

1
Out of stock

92028

BUSHING

92028-1975

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92043A

PIN

92043-1688

1
Out of stock

92145

SPRING

92145-0021

1
Out of stock

92151

BOLT,12X165

92151-1393

1
Out of stock

92200

WASHER,SPRING

92200-1504

1
Out of stock

92200A

WASHER

92200-1634

1
Out of stock
