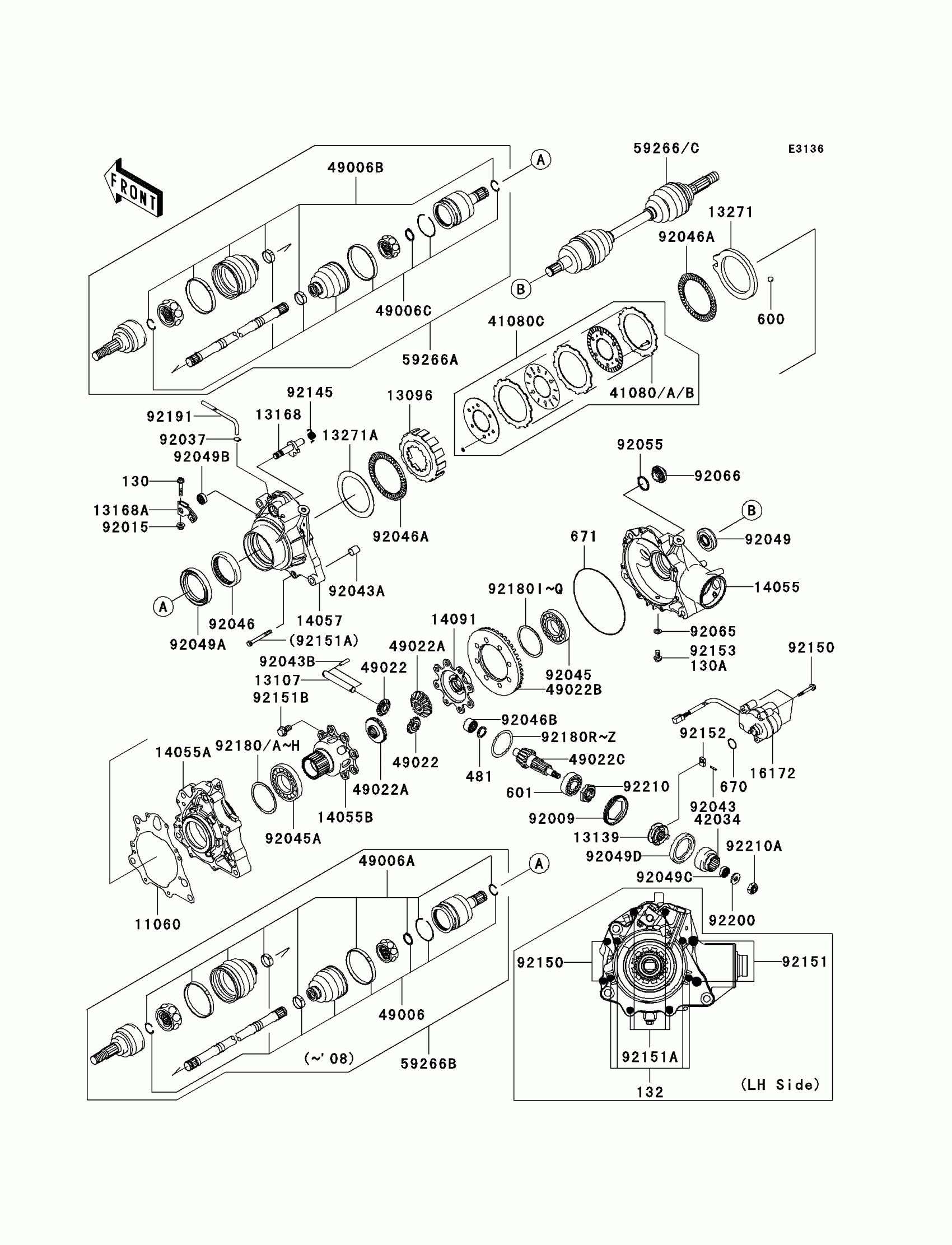

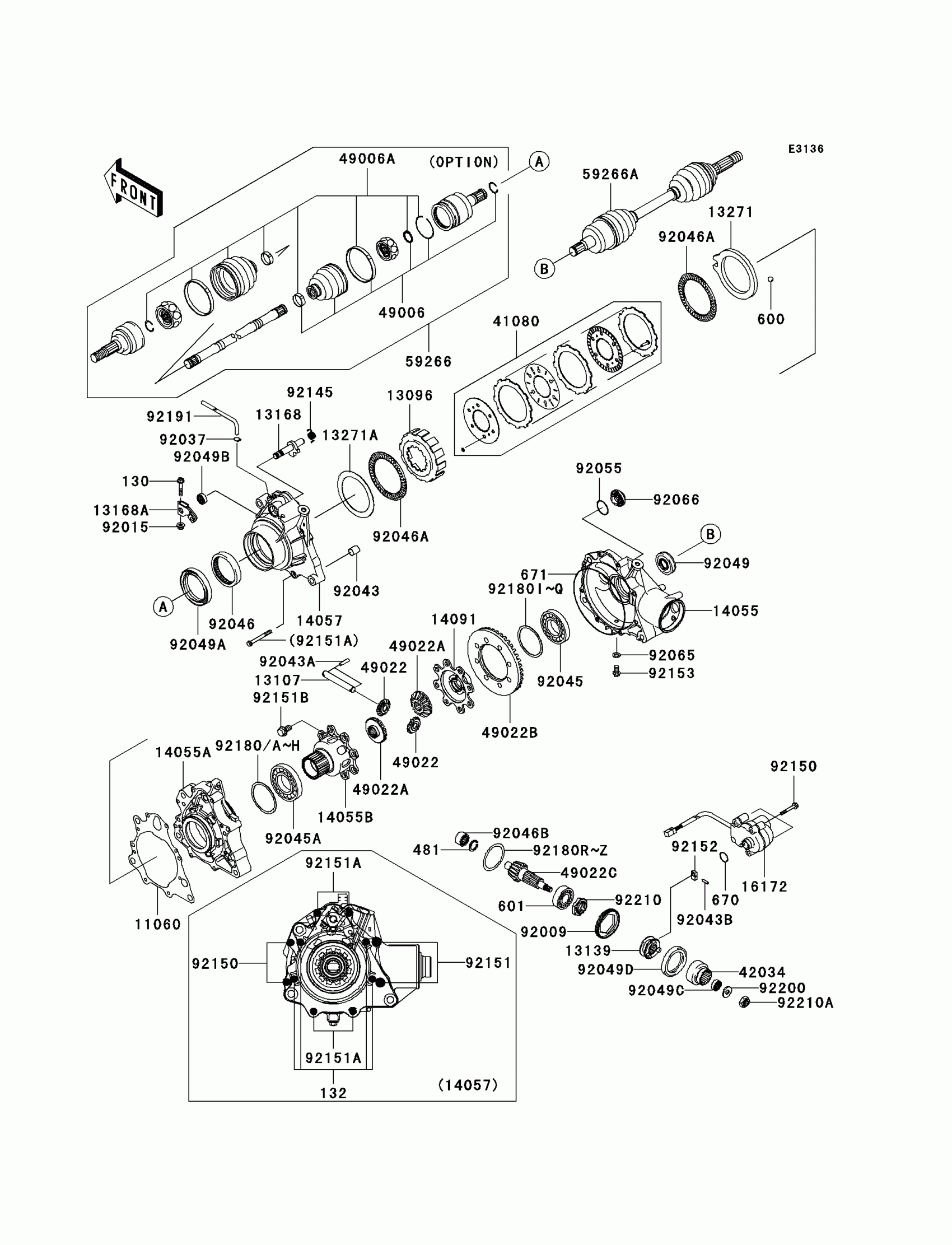

2005 Kawasaki Brute Force 650 4x4 Drive Shaft-Front Diagram
Find the part on the Drive Shaft-Front diagram for your 2005 Kawasaki Brute Force 650 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
13107
SHAFT,BEVEL
13107-1447
13271
PLATE,CAM
13271-1497
14055
CASE-GEAR
14055-0014
14055B
CASE-GEAR,BEVEL,LH
14055-1156
14057
CASE-COMP-GEAR,DIFF,LH
14057-1004
41080
DISC ASSY,DIFFERENTIAL LOCK
41080-1512
49022
GEAR-BEVEL,10T
49022-1177
49022B
GEAR-BEVEL,35T
49022-1190
59266
JOINT-BALL,LH
59266-1135
59266A
JOINT-BALL,RH
59266-1136
92009
SCREW,64MM
92009-1914
92046
BEARING-NEEDLE,TA627412ZE02
92046-1282
92046A
BEARING-NEEDLE,AK1116
92046-1286
92046B
BEARING-NEEDLE,AJ501515W
92046-1297
92049
SEAL-OIL,SDD7 22X48X7HS
92049-1534
92049A
SEAL-OIL,HTCY 62X81X10.5
92049-1536
92049B
SEAL-OIL,TC 12X22X7
92049-1550
92049C
SEAL-OIL,KB 13X19X13
92049-1572
92049D
SEAL-OIL,TCY 48X65X8
92049-1573
92150
BOLT,6X45
92150-1884
92153
BOLT,8X15
92153-0870
92191
TUBE,BREATHER
92191-1638
130
BOLT-FLANGED,6X35
130G0635
132
BOLT-FLANGED-SMALL,6X30
132Y0630
92200
WASHER,10X24X2.5
92200-1635
92210
NUT,25MM
92210-1225
92210A
NUT,LOCK,10MM
92210-1351
