2005 Kawasaki Brute Force 650 4x4 Fuel Tank Diagram

← All diagrams

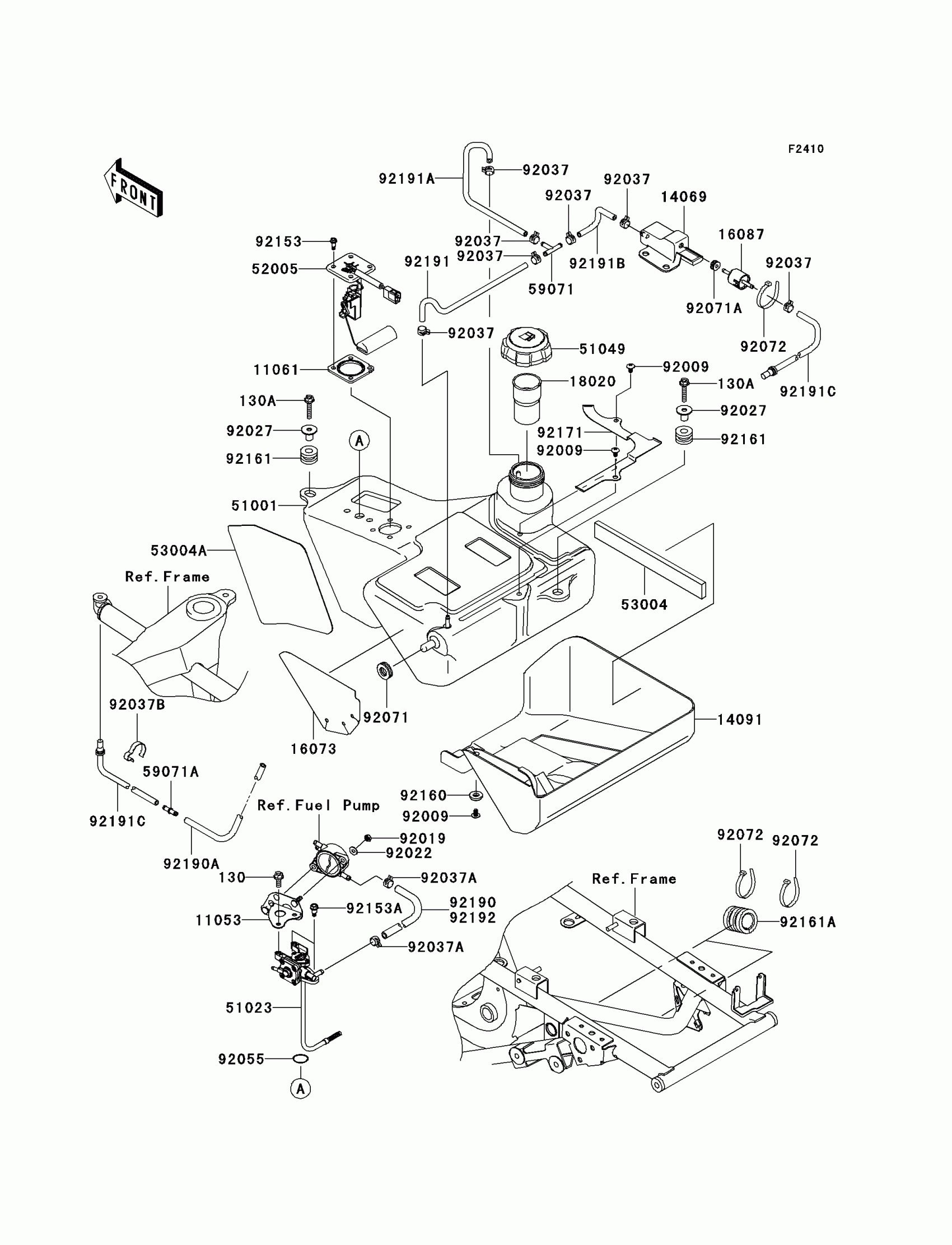

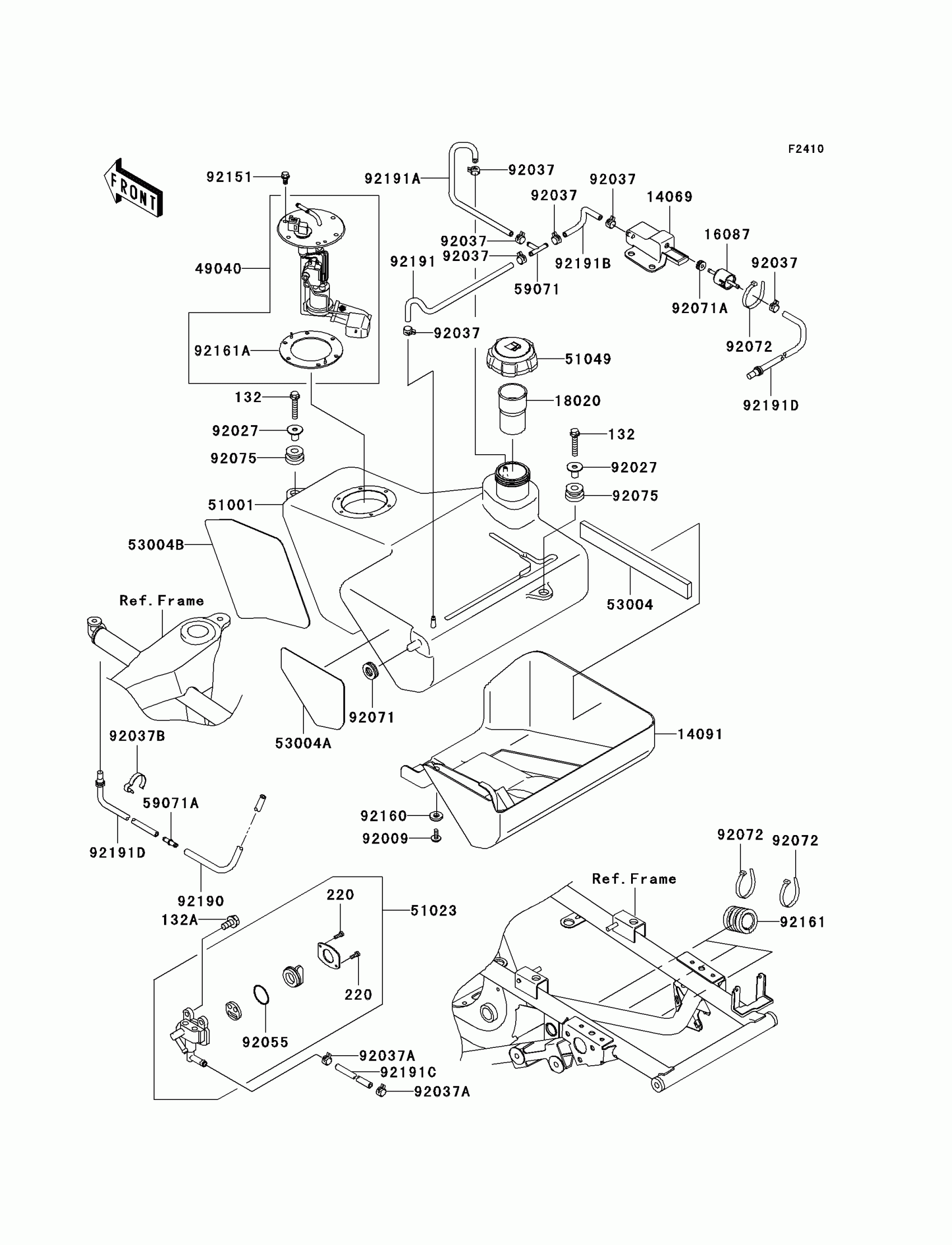

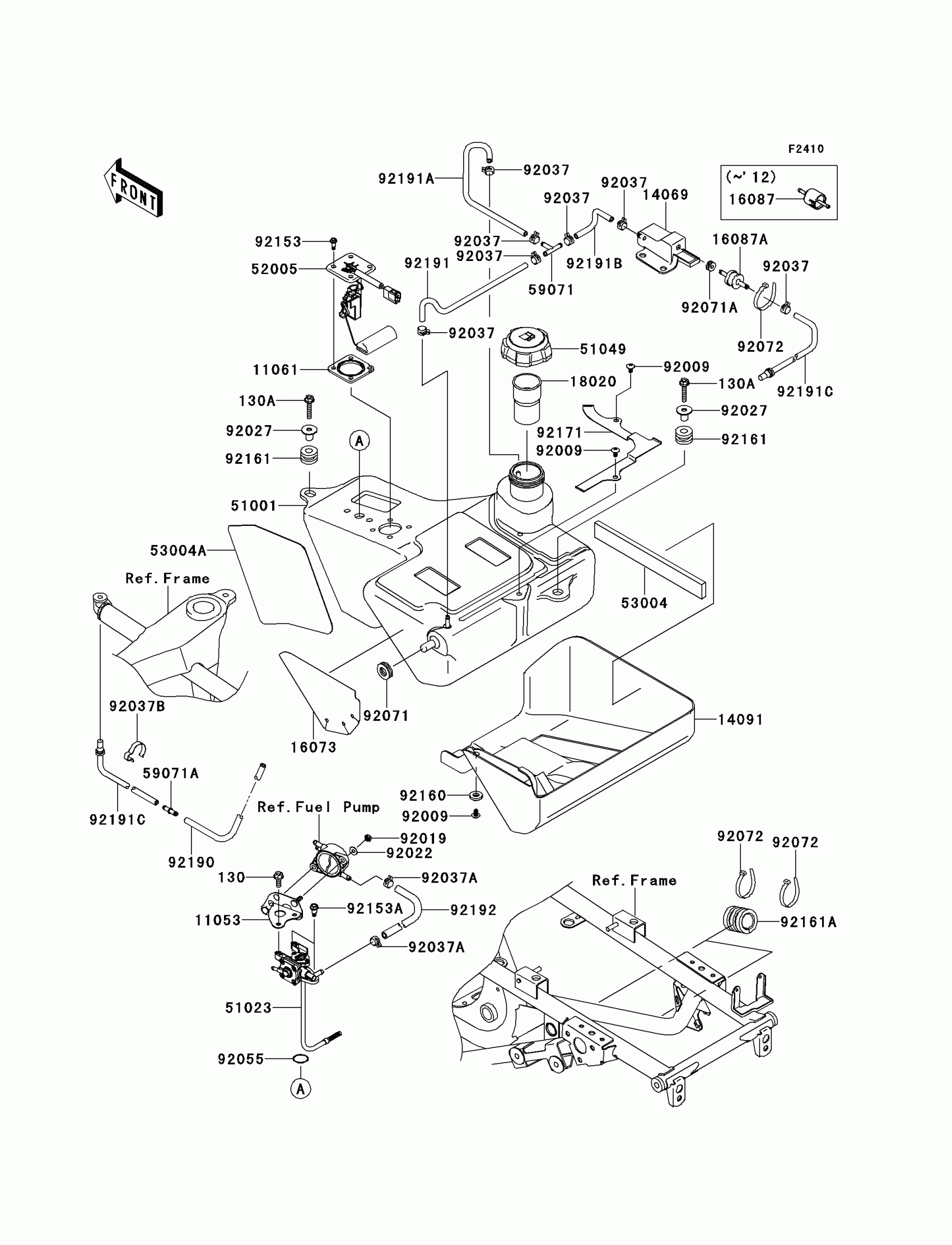

Find the part on the Fuel Tank diagram for your 2005 Kawasaki Brute Force 650 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Brute Force 650 4x4 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X30

132G0630

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X12

132J0612

1
Out of stock

220

1

$0.63

In stock

14069

BREATHER,TANK

14069-1069

1

$18.36

In stock

14091

COVER,FUEL TANK

14091-1404

1

$58.49

In stock

16087

VALVE-CHECK

16087-1054

1
Out of stock

18020

1

$10.58

In stock

49040

PUMP-FUEL

49040-0006

1

$952.89

In stock

51001

TANK-COMP-FUEL

51001-1638

1
Out of stock

51023

TAP-ASSY,FUEL

51023-0002

1
Out of stock

51049

CAP-TANK,FUEL

51049-0001

1
Out of stock

53004

MAT,FUEL TANK COVER

53004-1161

1

$7.76

In stock

53004A

MAT,FUEL TANK

53004-1164

1

$15.41

In stock

53004B

MAT,FUEL TANK

53004-1165

1

$14.47

In stock

59071

JOINT

59071-3705

1

$4.15

In stock

59071A

JOINT

59071-3717

1

$3.07

In stock

92009

SCREW,6X12

92009-1480

1
Out of stock

92027

COLLAR,L=16.1

92027-1847

1

$4.93

In stock

92037

CLAMP,TUBE

92037-1461

1

$3.08

In stock

92037A

CLAMP,TUBE

92037-1505

1

$3.78

In stock

92037B

CLAMP,HOSE

92037-1552

1

$9.63

In stock

92055

RING-O

92055-0017

1
Out of stock

92071

1

$3.68

In stock

92071A

GROMMET

92071-1266

1

$4.58

In stock

92072

BAND,L=188

92072-1239

1

$1.51

In stock

92075

DAMPER

92075-1787

1

$5.21

In stock

92151

BOLT,FLANGED,5X11.5

92151-1754

1

$1.59

In stock

92160

DAMPER

92160-1017

1

$5.07

In stock

92161

DAMPER,FUEL TANK,RR

92161-1111

1

$5.53

In stock

92161A

DAMPER,FUEL PUMP

92161-1272

1
Out of stock

92190

TUBE,5X9X530

92190-1256

1

$7.49

In stock

92191

TUBE,TANK-FRONT

92191-1639

1
Out of stock

92191A

TUBE,TANK-REAR

92191-1640

1
Out of stock

92191B

TUBE,5X9X160

92191-1641

1
Out of stock

92191C

TUBE,5.3X10.5X425

92191-1665

1
Out of stock

92191D

TUBE,TANK BREATHER

92191-1666

1
Out of stock
