2005 Kawasaki Brute Force 650 4x4 Front Bevel Gear Diagram

← All diagrams

Find the part on the Front Bevel Gear diagram for your 2005 Kawasaki Brute Force 650 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

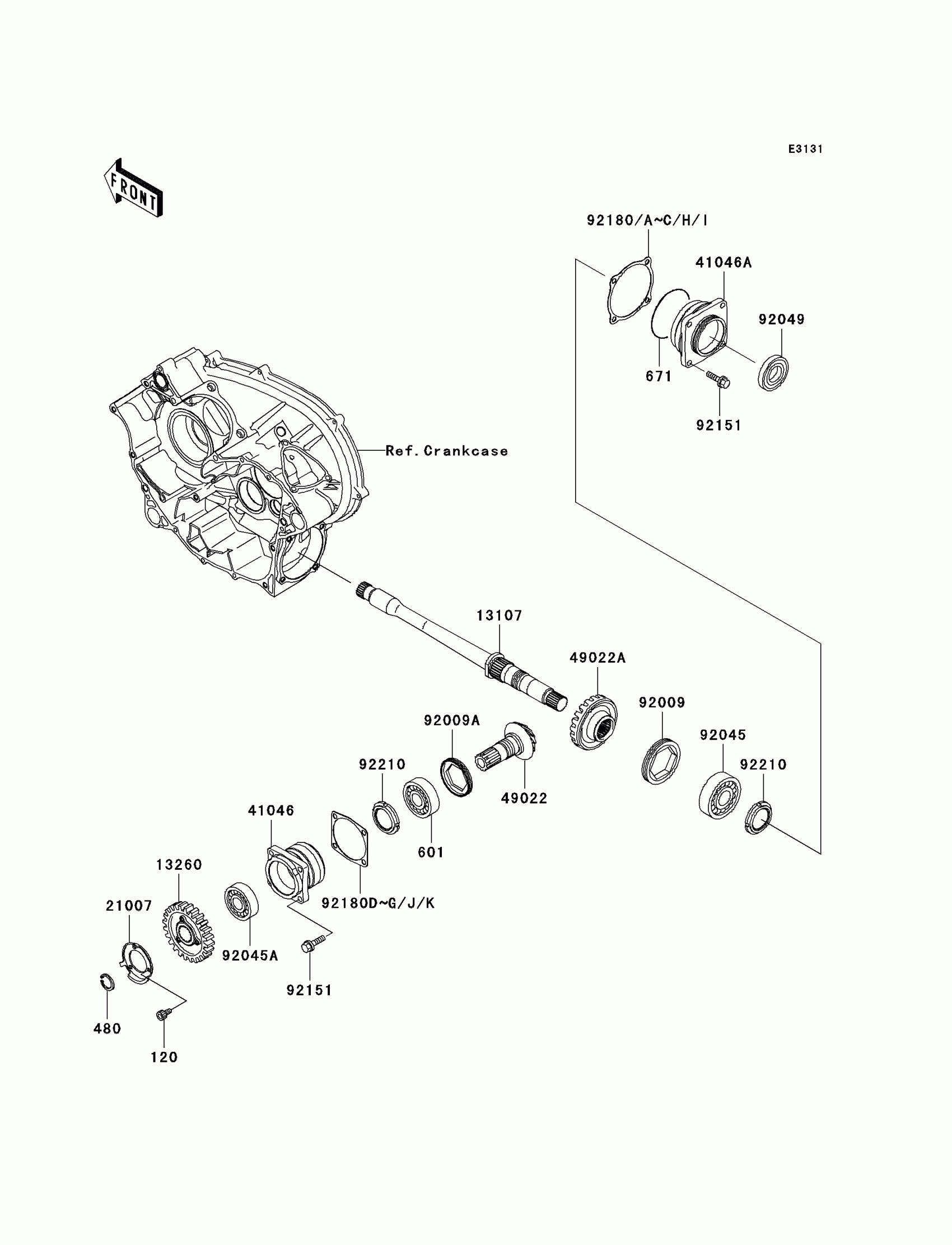

2005 Kawasaki Brute Force 650 4x4 Front Bevel Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X12

120P0612

1
Out of stock

480

CIRCLIP-TYPE-C,28MM

480J2800

1
Out of stock

601

BALL BEARING,#6206

601B6206

1
Out of stock

671

O RING

671D2585

1
Out of stock

13107

SHAFT

13107-0027

1
Out of stock

13260

GEAR,OUTPUT 29T

13260-1922

1
Out of stock

21007

ROTOR,REVERSE SENSOR

21007-1416

1
Out of stock

41046

HOUSING-BEARING

41046-1101

1
Out of stock

41046A

HOUSING-BEARING

41046-1102

1
Out of stock

49022

GEAR-BEVEL,DRIVE,12T

49022-0010

1
Out of stock

49022A

GEAR-BEVEL,DRIVEN,20T

49022-0011

1
Out of stock

92009

SCREW-SET-SOCKET,75X10

92009-1667

1
Out of stock

92009A

SCREW,64MM

92009-1914

1
Out of stock

92045

BEARING-BALL,6306SH2

92045-1190

1
Out of stock

92045A

BEARING-BALL,62/28

92045-1207

1
Out of stock

92049

SEAL-OIL

92049-1529

1
Out of stock

92151

BOLT-FLANGED-SMALL,8X30

92151-1688

1
Out of stock

92180

SHIM,DRIVEN,T=0.15

92180-1307

—
Out of stock

92180A

SHIM,DRIVEN,T=0.20

92180-1308

—
Out of stock

92180B

SHIM,DRIVEN,T=0.50

92180-1309

—
Out of stock

92180C

SHIM,DRIVEN,T=0.80

92180-1310

—
Out of stock

92180D

SHIM,DRIVE,T=0.15

92180-1311

—
Out of stock

92180E

SHIM,DRIVE,T=0.20

92180-1312

—
Out of stock

92180F

SHIM,DRIVE,T=0.50

92180-1313

—
Out of stock

92180G

SHIM,DRIVE,T=0.80

92180-1314

—
Out of stock

92180H

SHIM,DRIVEN,T=1.00

92180-1349

—
Out of stock

92180I

SHIM,DRIVEN,T=1.20

92180-1350

—
Out of stock

92180J

SHIM,DRIVE,T=1.00

92180-1351

—
Out of stock

92180K

SHIM,DRIVE,T=1.20

92180-1352

—
Out of stock

92210

NUT,30MM

92210-1294

1
Out of stock
