2005 Kawasaki Brute Force 650 4x4 Drive Shaft-Propeller Diagram

← All diagrams

Find the part on the Drive Shaft-Propeller diagram for your 2005 Kawasaki Brute Force 650 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

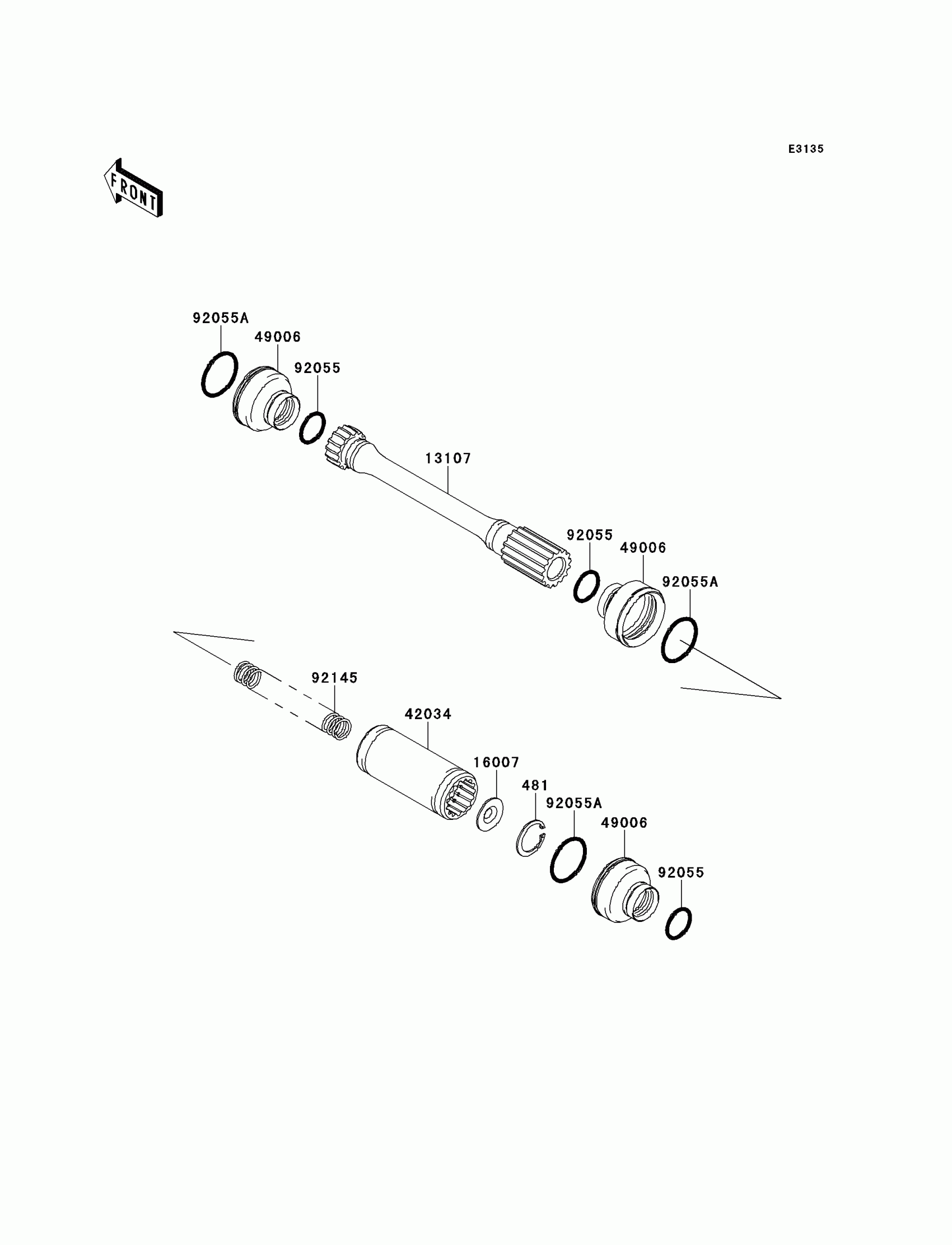

2005 Kawasaki Brute Force 650 4x4 Drive Shaft-Propeller Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

481

CIRCLIP-TYPE-C,25MM

481J2500

1
Out of stock

13107

SHAFT,FR PROPELLER SHAFT

13107-1505

1
Out of stock

16007

SEAT-SPRING,PROPELLER SHAFT

16007-1205

1
Out of stock

42034

COUPLING,PROPELLER

42034-1193

1
Out of stock

49006

BOOT

49006-1362

1
Out of stock

92055

RING-O,18X24X3

92055-1633

1
Out of stock

92055A

RING-O,30X35X2.5

92055-1693

1
Out of stock

92145

SPRING,PROPELLER SHAFT

92145-1304

1
Out of stock
