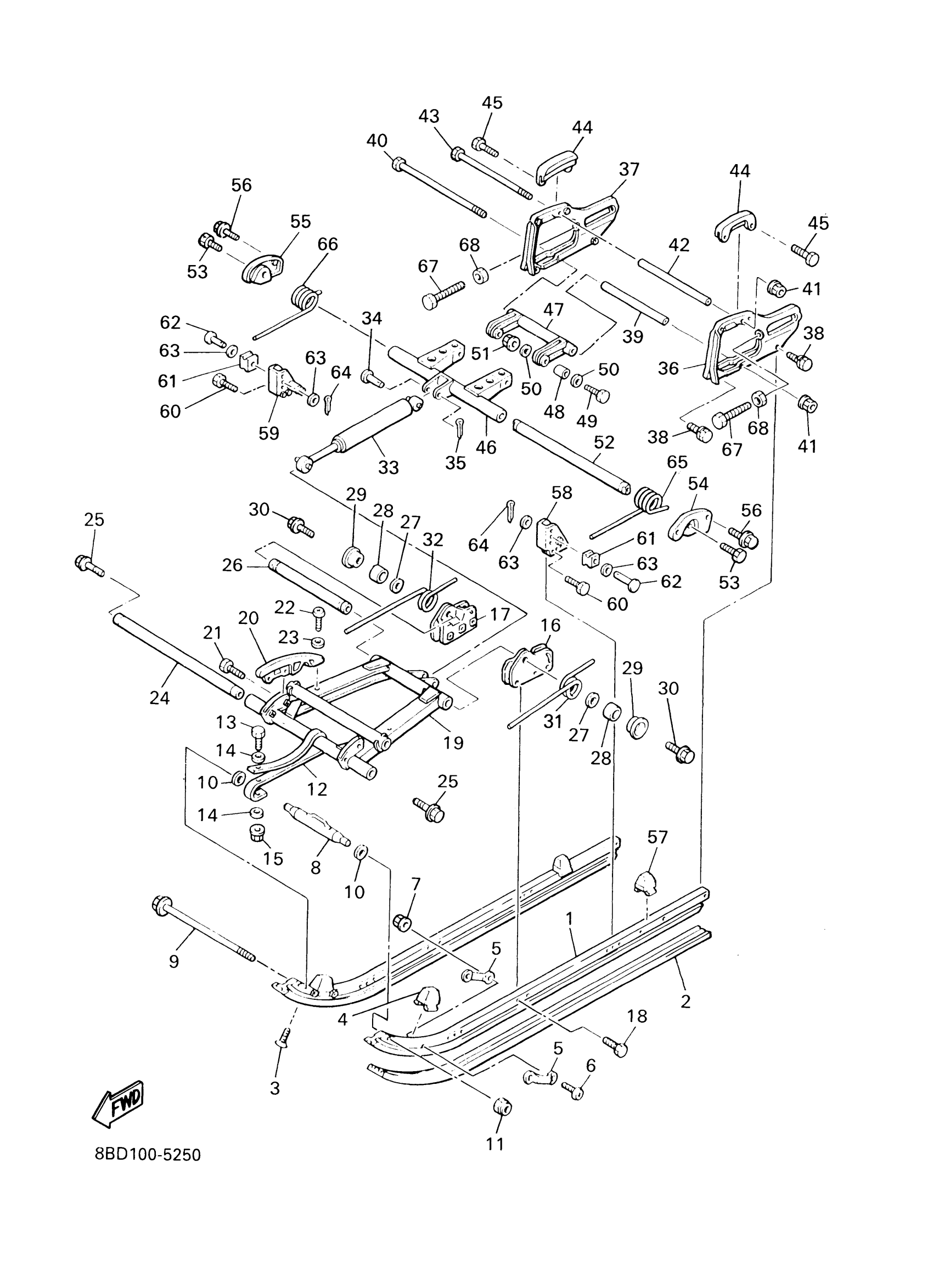

Find the part on the Track Suspension 2 diagram for your 2001 Yamaha BR250TF 8BD8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha BR250TF 8BD8 Track Suspension 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME, SLIDING 1

80E-47411-00-00

1
Out of stock

2

RUNNER, SLIDING 1

8X0-47421-00-XX

1

$16.58

In stock

3

SCREW, CROSSRECESS (8G6)

90151-06005-00

1
Out of stock

4

DAMPER 1

888-47456-01-00

1

$8.78

In stock

5

PLATE, DAMPER

885-47458-01-00

1
Out of stock

6

BOLT, HEXAGON

97027-05035-00

—
Out of stock

7

NUT, NYLON

95707-05300-00

1

$2.74

In stock

8

BRACKET 1

899-47415-00-00

1
Out of stock

9

BOLT,FLANGE

95827-08260-00

1
Out of stock

10

WASHER (1T1)

90201-08649-00

1
Out of stock

11

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

12

STOPPER 1

888-47495-02-00

—

$41.20

In stock

13

BOLT(21W)

97017-06035-00

1

$2.91

In stock

14

WASHER, PLATE

90201-06747-00

1

$6.17

In stock

15

NUT, NYLON

95707-06300-00

1

$3.20

In stock

16

BRACKET 2

85A-47416-00-00

—

$25.42

In stock

17

BRACKET 7

85A-47419-00-00

—

$25.42

In stock

18

BOLT(21W)

97017-06035-00

1

$2.91

In stock

19

ARM, PIVOT 1

89D-47331-00-00

—

$249.58

In stock

20

RUNNER, SLIDING 2

8G8-47422-00-00

—

$14.68

In stock

21

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

22

SCREW, PAN

98517-06020-00

—
Out of stock

23

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

24

SHAFT 1

8A5-47465-02-00

—

$46.62

In stock

25

BOLT (8V0)

90109-10771-00

—

$5.00

In stock

26

SHAFT 3

8A5-47485-02-00

1
Out of stock

27

WASHER PLATE 256234440000

90201-10149-00

—

$6.68

In stock

28

COLLAR

90387-106L3-00

1
Out of stock

29

COLLAR(8Y1)

90387-206L2-00

—

$3.91

In stock

30

BOLT, FLANGE

95817-10080-00

—

$5.00

In stock

31

SPRING,FRONT.1

80E-47471-01-00

—

$95.88

In stock

32

SPRING,FRONT.2

80E-47472-01-00

—
Out of stock

33

SHOCK ABSORBER

8E7-47480-01-00

—

$209.42

In stock

34

PIN, CLEVIS(8N0)

90240-12115-00

—

$16.35

In stock

35

PIN COTTER

91490-30025-00

—
Out of stock

36

FRAME, SLIDING 2

8E3-47412-00-00

—

$57.54

In stock

37

FRAME, SLIDING 3

8E3-47413-00-00

—

$60.97

In stock

38

BOLT, WITH WASHER

90119-08008-00

1
Out of stock

39

COLLAR (899 SUSPENSION)

90387-08496-00

—

$9.91

In stock

40

BOLT (8M8)

90101-08374-00

—
Out of stock

41

NUT, NYLON

95717-08300-00

—

$2.57

In stock

42

COLLAR (899 SUSPENSION)

90387-08497-00

—

$12.38

In stock

43

BOLT, HEXAGON

97027-08250-00

1
Out of stock

44

RUNNER, SLIDING

8E3-47422-00-00

—

$17.09

In stock

45

BOLT, WITH WASHER(2WG)

90119-06172-00

—

$5.83

In stock

46

ARM, PIVOT 2

8A5-47332-00-00

1
Out of stock

47

BRACKET 3

8A5-47417-00-00

—

$79.35

In stock

48

COLLAR (8A5 SUSPENSION)

90387-08508-00

—

$5.77

In stock

49

BOLT(3HN)

97017-08045-00

—

$5.80

In stock

50

WASHER (1T1)

90201-08649-00

1
Out of stock

51

NUT, NYLON

95717-08300-00

—

$2.57

In stock

52

SHAFT 2

8A5-47475-02-00

—

$27.91

In stock

53

BOLT (8V0)

90109-10771-00

—

$5.00

In stock

54

BRACKET, REAR 1

8A5-47425-00-00

—

$21.54

In stock

55

BRACKET, REAR 1

8A5-47426-00-00

1
Out of stock

56

BOLT, FLANGE(4LN)

95817-08025-00

—

$6.17

In stock

57

DAMPER 2

8L1-47457-01-00

—

$15.43

In stock

58

BRACKET 5

8T9-47463-00-00

—

$64.45

In stock

59

BRACKET 6

8T9-47464-00-00

1
Out of stock

60

BOLT(21W)

97017-06035-00

1

$2.91

In stock

61

HOOK 2

890-47447-00-00

—

$4.35

In stock

62

PIN WITH HOLE (890)

90249-12113-00

—

$8.37

In stock

63

WASHER, PLATE

90201-12047-00

—

$7.54

In stock

64

PIN, COTTER

91490-30030-00

—

$7.15

In stock

65

SPRING, TORSION 3(8E7)

90508-99331-00

—

$38.86

In stock

65

SPRING, TORSION

90508-99649-00

1
Out of stock

66

SPRING, TORSION 4(8E7)

90508-99332-00

—

$38.86

In stock

66

SPRING, TORSION

90508-99650-00

1
Out of stock

67

BOLT, HEXAGON (8E3)

90101-10314-00

—

$6.29

In stock

68

NUT (2Y5)

90179-10279-00

—

$6.09

In stock
