2001 Yamaha BR250TF 8BD8 Secondary Sheave Diagram

← All diagrams

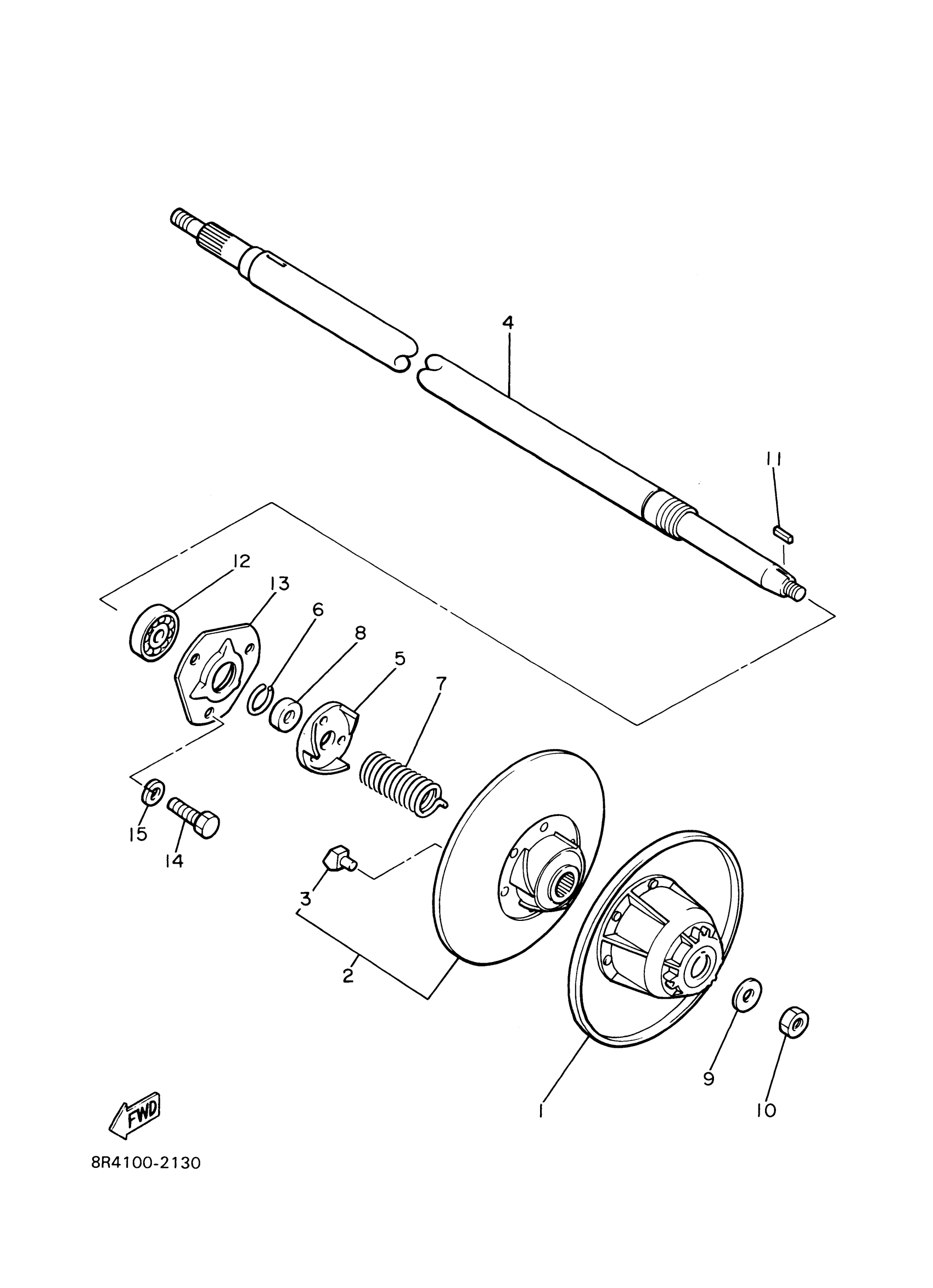

Find the part on the Secondary Sheave diagram for your 2001 Yamaha BR250TF 8BD8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha BR250TF 8BD8 Secondary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

—

$191.03

In stock

2

SECONDARY SLIDING SHEAVE

8R4-17670-01-00

1
Out of stock

3

SHOE, RAMP

8R4-17688-00-00

1

$8.80

In stock

4

SHAFT, SECONDARY

8R4-17681-01-00

1
Out of stock

5

SEAT, SECONDARY SPRING

8R4-17684-00-00

1
Out of stock

6

CIRCLIP (8R4)

93440-25100-00

—

$2.20

In stock

7

1

$13.51

In stock

8

COLLAR(85L)

90387-260W3-00

1
Out of stock

9

WASHER, PLATE (35T)

90201-122H1-00

1

$6.82

In stock

10

NUT, SELF LOCKING (23X)

90185-12119-00

1
Out of stock

11

KEY, STRAIGHT (8R4)

90282-05047-00

1
Out of stock

12

BEARING(83R)

93306-20582-00

1

$48.01

In stock

13

HOUSING, BEARING

8R4-47631-00-00

1
Out of stock

14

BOLT, HEXAGON

97017-08016-00

1
Out of stock

15

WASHER(6TA)

92907-08600-00

1

$2.52

In stock
