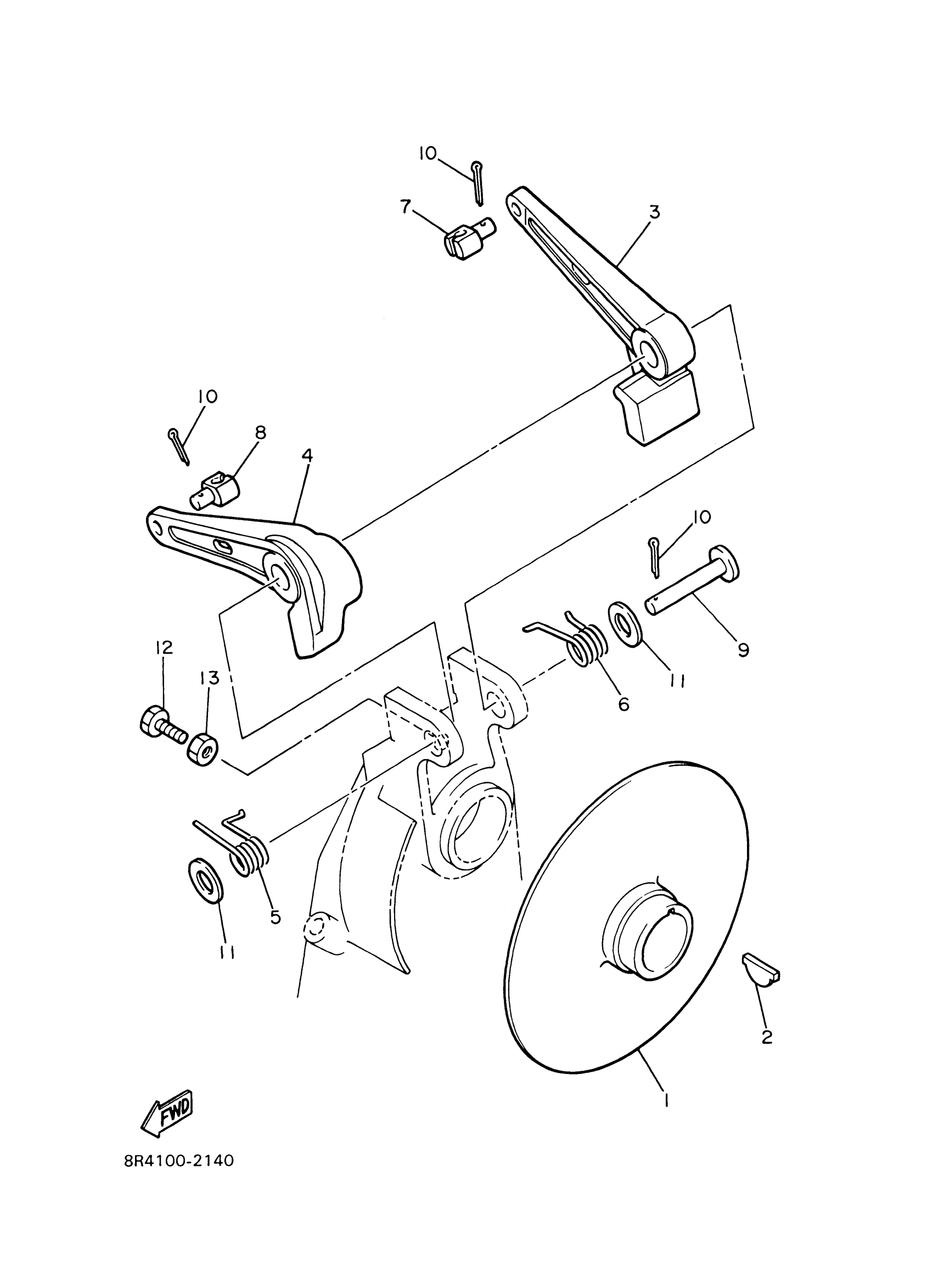

Find the part on the Brake diagram for your 2001 Yamaha BR250TF 8BD8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha BR250TF 8BD8 Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISC, BRAKE

8R4-25711-00-00

—

$63.17

In stock

2

KEY

8J7-25848-00-00

1

$4.77

In stock

3

CALIPER BODY COMP.1

8BC-25730-00-00

—

$53.25

In stock

4

CALIPER BODY COMP. 2

8BC-25740-00-00

—

$53.25

In stock

5

SPRING, TORSION (8V7)

90508-29601-00

—

$3.37

In stock

6

SPRING, TORSION (8V7)

90508-29602-00

—

$3.14

In stock

7

PIN (810)

90249-06012-00

—

$9.91

In stock

8

PIN

90249-06009-00

1
Out of stock

9

PIN, W/ HOLE (8J2)

90240-08068-00

—

$5.29

In stock

10

PIN, COTTER (648)

91490-20015-00

1

$1.85

In stock

11

WASHER(6TA)

92907-08600-00

1

$2.52

In stock

12

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

13

NUT(JN5)

95317-06700-00

1

$6.69

In stock
