2001 Yamaha BR250TF 8BD8 Track Drive 1 Diagram

← All diagrams

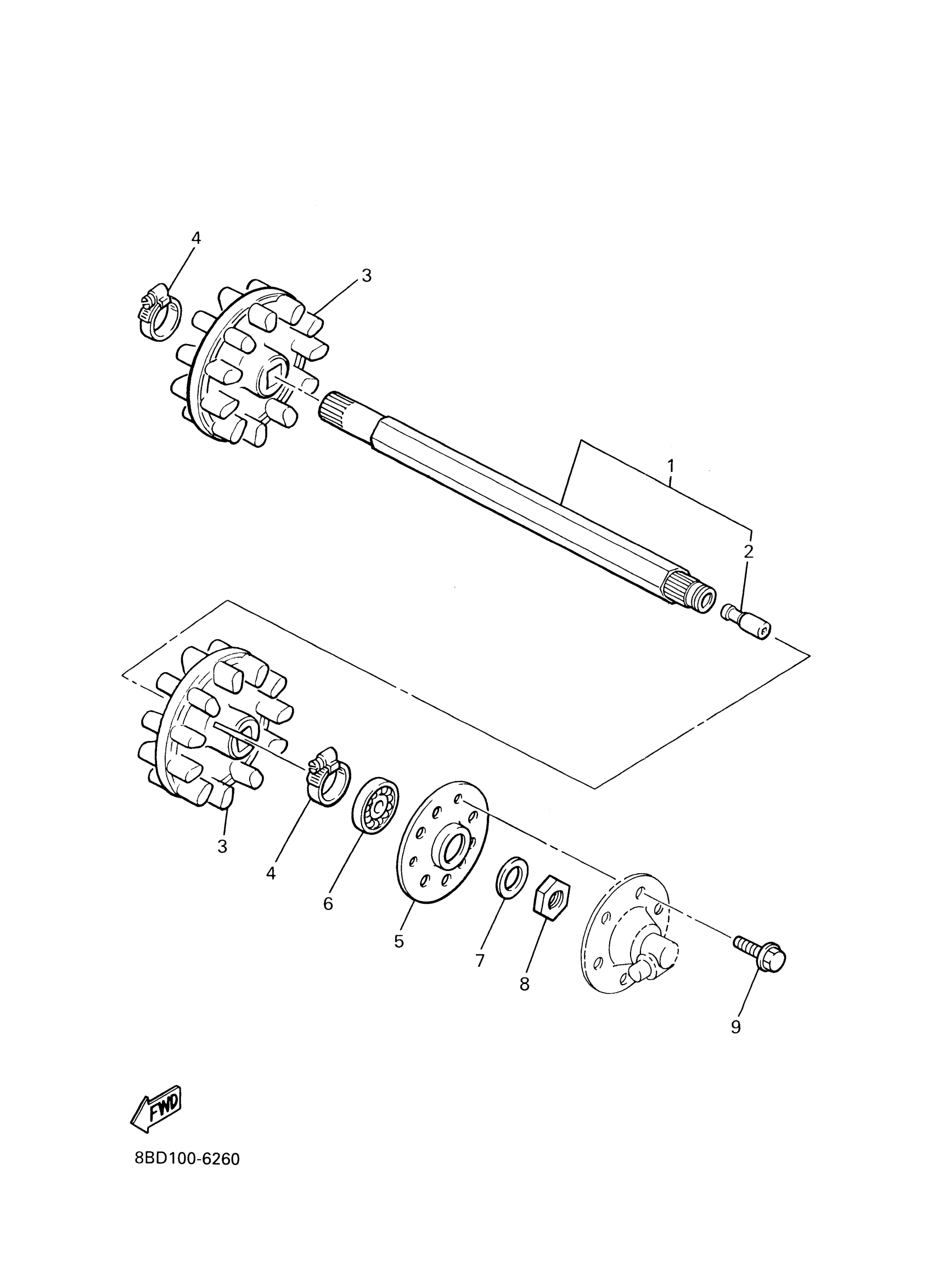

Find the part on the Track Drive 1 diagram for your 2001 Yamaha BR250TF 8BD8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha BR250TF 8BD8 Track Drive 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, FRONT

85A-W4751-00-00

1

$159.15

In stock

2

CONNECTOR

8K4-47577-00-00

1

$16.57

In stock

3

WHEEL SPROCKET ASSY

88L-W4753-00-00

1
Out of stock

4

BAND (MADE IN CANADA)

90460-50079-00

—
Out of stock

5

HOUSING, FRONT AXLE

8F3-47551-00-00

—

$18.22

In stock

6

BEARING(8AB)

93306-00444-00

1

$35.70

In stock

7

WASHER (853)

90208-20008-00

1
Out of stock

8

NUT, HEXAGON (8F3)

90170-20211-00

1

$3.74

In stock

9

BOLT, FLANGE

95817-08014-00

1

$1.94

In stock
