2001 Yamaha BR250TF 8BD8 Pump Drive Gear Diagram

← All diagrams

Find the part on the Pump Drive Gear diagram for your 2001 Yamaha BR250TF 8BD8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

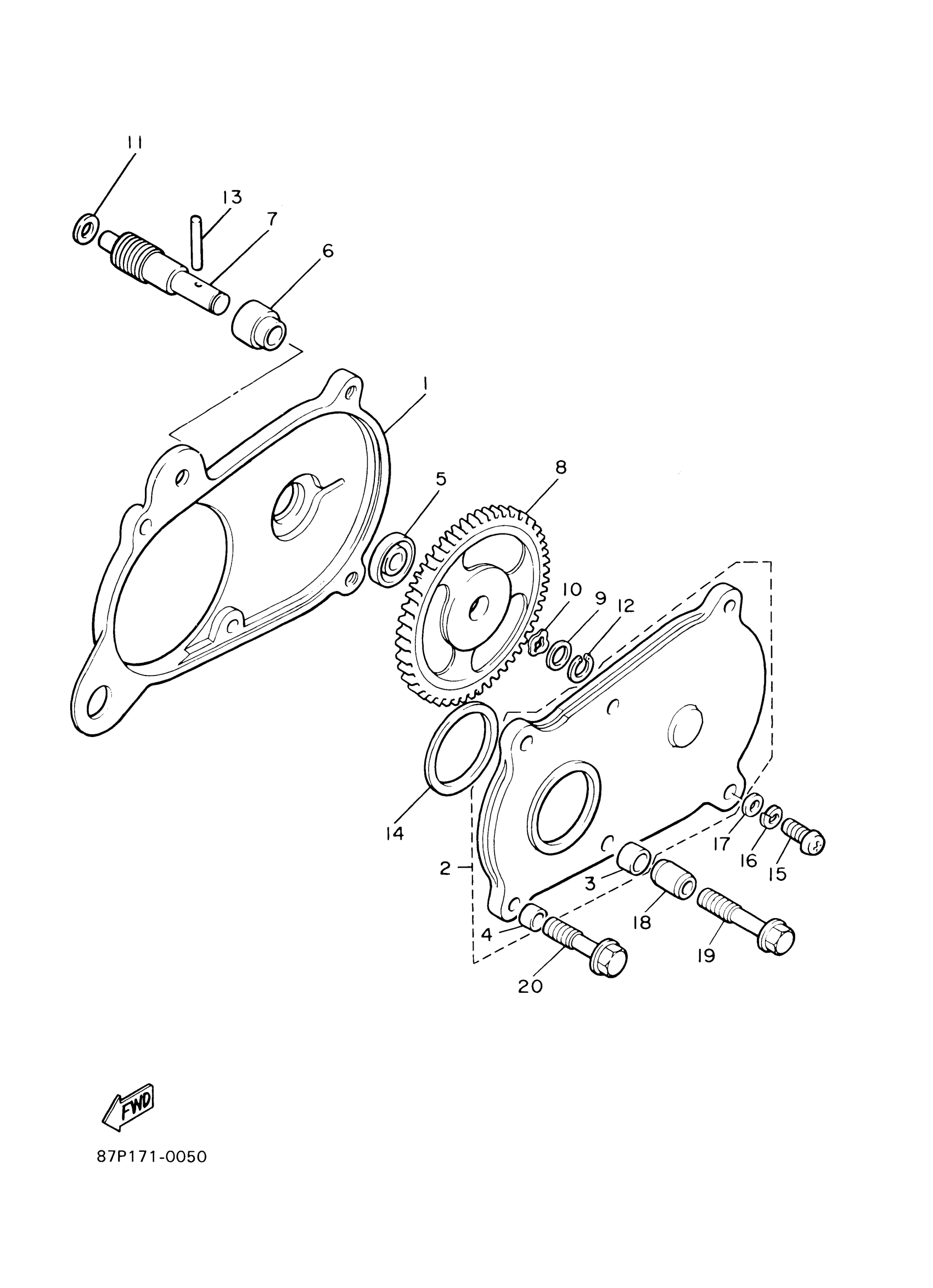

2001 Yamaha BR250TF 8BD8 Pump Drive Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, OIL PUMP

8R4-15416-00-00

—
Out of stock

2

COVER, OIL PUMP 2

8R4-15426-00-00

—

$17.31

In stock

3

COLLAR(8R4)

90387-082N1-00

—

$3.55

In stock

4

COLLAR(8R4)

90387-062N2-00

1

$6.94

In stock

5

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

6

METAL, WORM SHAFT OUTER

821-13176-00-00

1

$6.33

In stock

7

SHAFT, WORM

8R4-13175-00-00

—

$23.06

In stock

8

GEAR, DRIVE (59T)

8R4-13188-00-00

1
Out of stock

9

PLATE, CAM THRUST

137-13148-00-00

—

$3.28

In stock

10

WASHER, WAVE (137)

90206-11016-00

—

$12.72

In stock

11

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

12

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

13

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

14

OIL SEAL (8R4)

93104-29072-00

1

$6.31

In stock

15

SCREW, PAN

98517-06020-00

1
Out of stock

16

WASHER, SPRING

92907-06100-00

—
Out of stock

17

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

18

PIN, DOWEL(8AH)

91808-22019-00

—

$6.86

In stock

19

BOLT, FLANGE

95817-06030-00

—

$3.91

In stock

20

BOLT, FLANGE

95817-06025-00

—

$1.46

In stock
