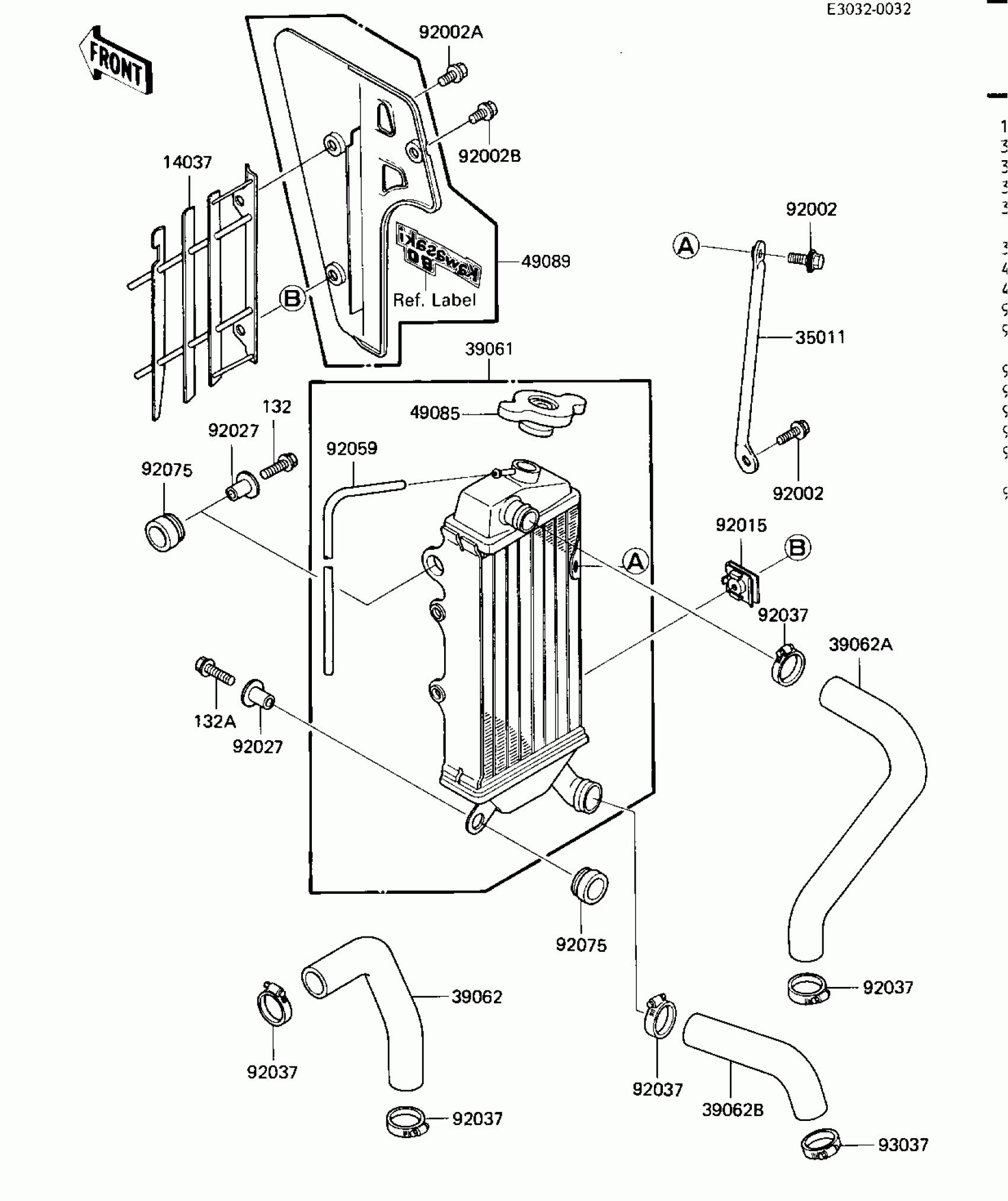

Find the part on the Radiator diagram for your 1987 Kawasaki Big Wheel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

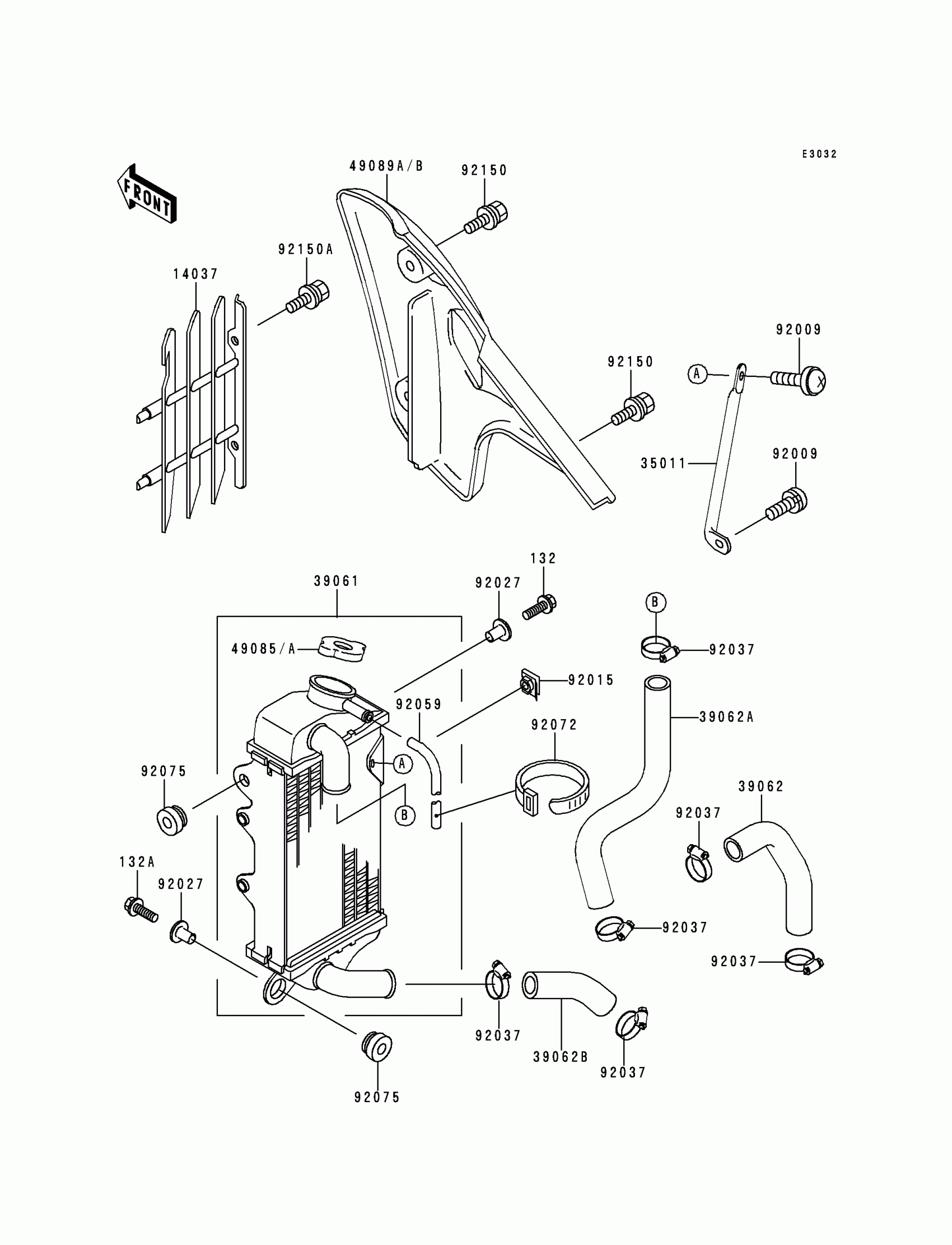

1987 Kawasaki Big Wheel Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14037

SCREEN,RADIATOR

14037-1075

1
Out of stock

35011

STAY,RADIATOR

35011-1258

1
Out of stock

39061

RADIATOR-ASSY

39061-1096

1
Out of stock

39062

HOSE-COOLING,PUMP-CYLINDER

39062-1134

1
Out of stock

39062A

HOSE-COOLING,RADIATOR

39062-1135

1
Out of stock

39062B

1

$19.41

In stock

49085

CAP-ASSY-PRESSURE

49085-1003

1

$33.98

In stock

49089

SHROUD-ENGINE,RH,L.GR

49089-5016-6W

1
Out of stock

92002

BOLT,6X14

92150-1340

1

$4.02

In stock

92002A

BOLT,FLANGED,6X16

92150-1506

1

$3.97

In stock

92002B

BOLT,6X12

92150-1435

1

$3.43

In stock

92015

NUT

92015-1487

1

$3.80

In stock

92027

COLLAR,6.5X10X14.1

92027-1183

1

$4.37

In stock

92037

CLAMP,COOLING HOSE

92037-1589

1

$14.60

In stock

92059

TUBE,5X9X800

92059-1383

1

$7.65

In stock

92075

DAMPER

92075-1352

1

$5.16

In stock

132

BOLT-FLANGED-SMALL

132G0620

1
Out of stock

132A

BOLT-FLANGED-SMALL

132G0625

1
Out of stock
