1987 Kawasaki Big Wheel Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1987 Kawasaki Big Wheel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

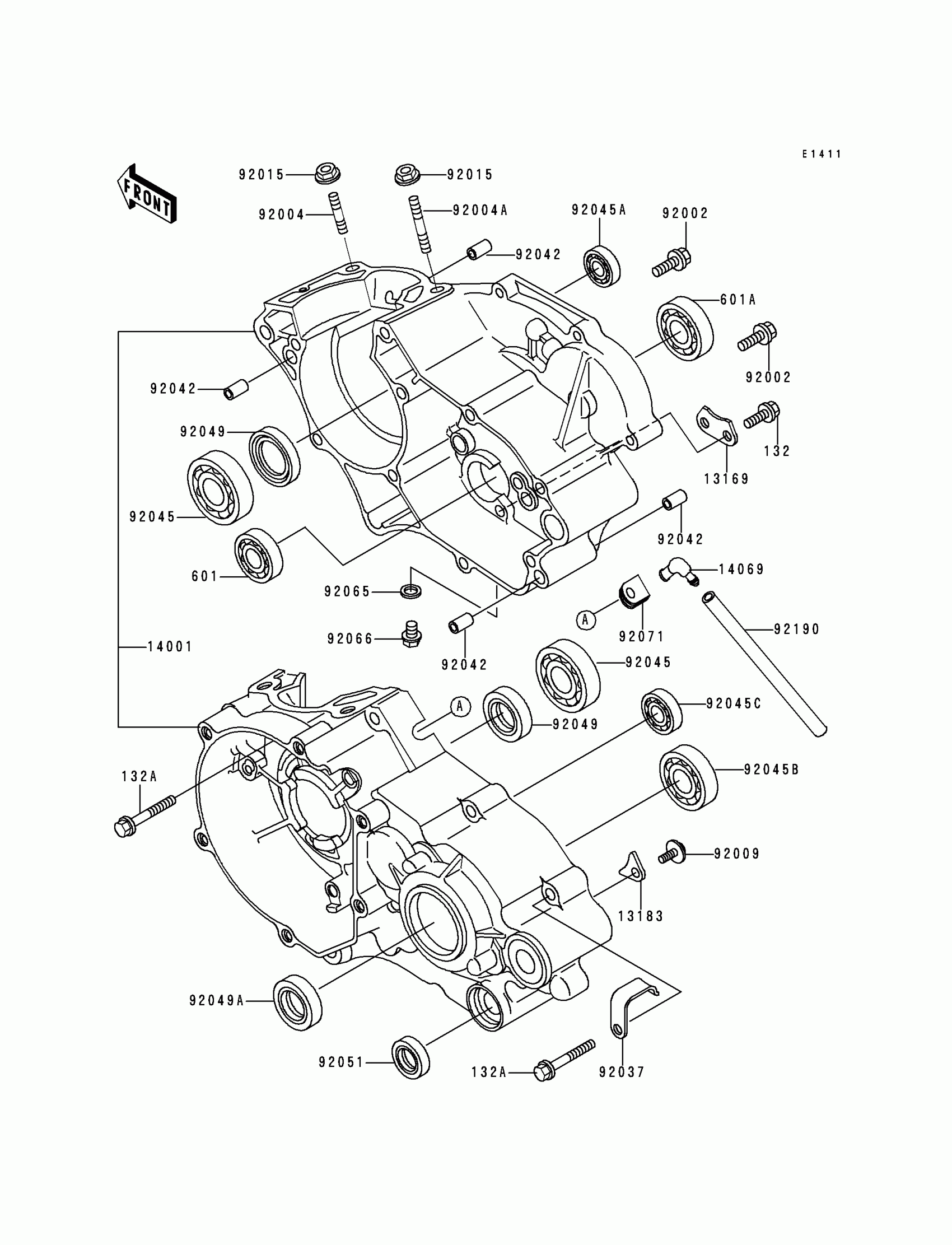

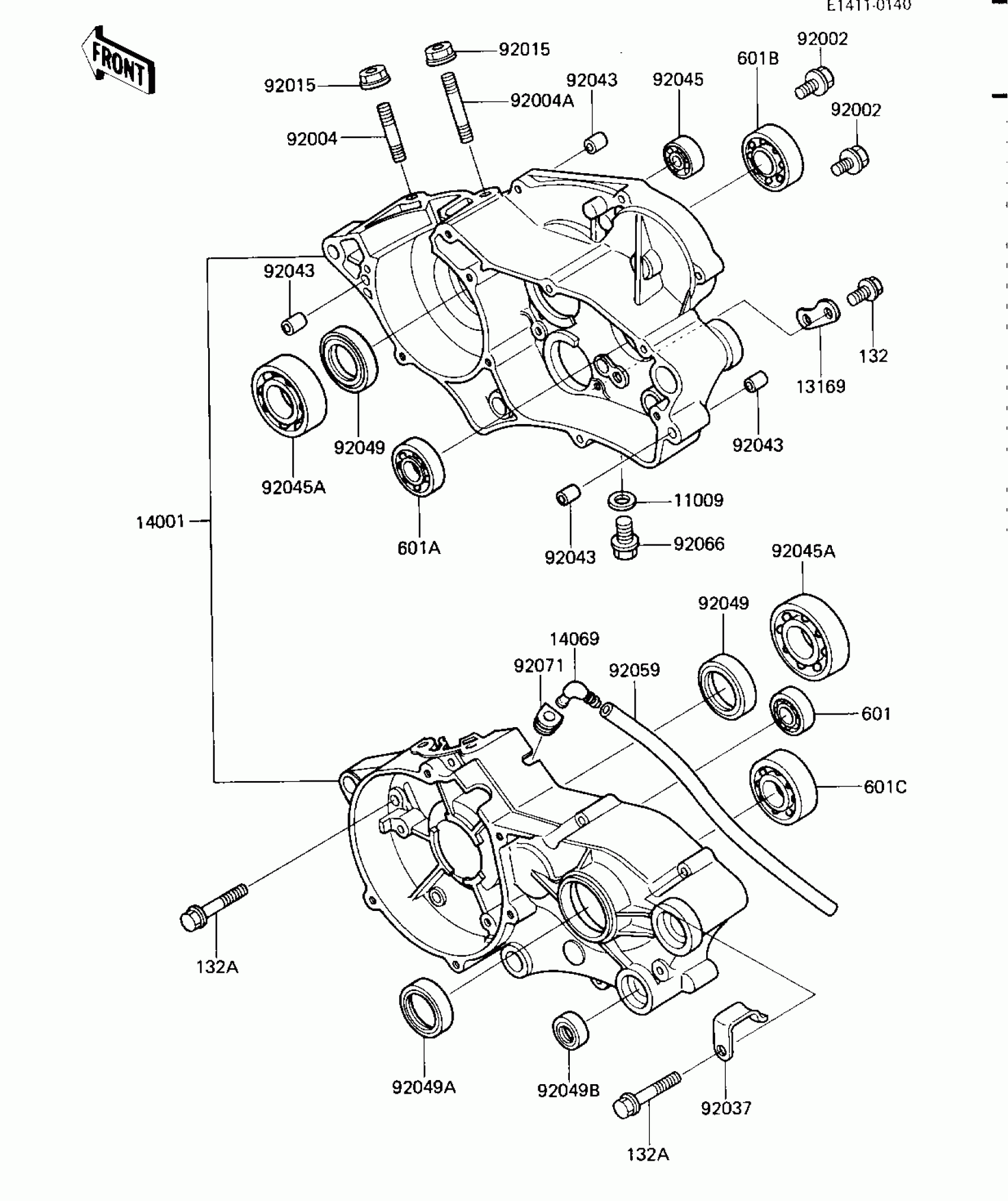

1987 Kawasaki Big Wheel Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,10.5X16X1

92065-058

1

$3.16

In stock

13169

PLATE,CHANGE DRUM

13169-012

1

$15.44

In stock

14001

SET-CRANKCASE

14001-5200

1
Out of stock

14069

BREATHER ASSY

14069-1001

1

$22.77

In stock

92002

BOLT,6X16

92002-1659

1
Out of stock

92004

STUD,8X25

92004-1008

1
Out of stock

92004A

STUD,8X35

92004-1009

1
Out of stock

92015

NUT,8MM

92015-1143

1
Out of stock

92037

CLAMP,HARNESS

92037-1318

1

$7.25

In stock

92043

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92045

BEARING-BALL

92045-1211

1

$9.41

In stock

92045A

1

$27.96

In stock

92049

SEAL-OIL,SD20407GS

92049-1188

1
Out of stock

92049A

SEAL-OIL,SC25376

92050-013

1
Out of stock

92049B

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92059

TUBE,6X9X750

92059-1372

1

$14.65

In stock

92066

PLUG,DRAIN

92066-1241

1

$5.39

In stock

92071

GROMMET,BREATHER

92071-042

1

$3.39

In stock

132

BOLT-FLANGED-SMALL

132G0612

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X35

132G0635

1
Out of stock

601

BEARING-BALL

601A6001

1

$9.26

In stock

601A

1

$9.21

In stock

601B

1

$11.12

In stock

601C

1

$10.76

In stock
