1987 Kawasaki Big Wheel Kickstarter Mechanism Diagram

← All diagrams

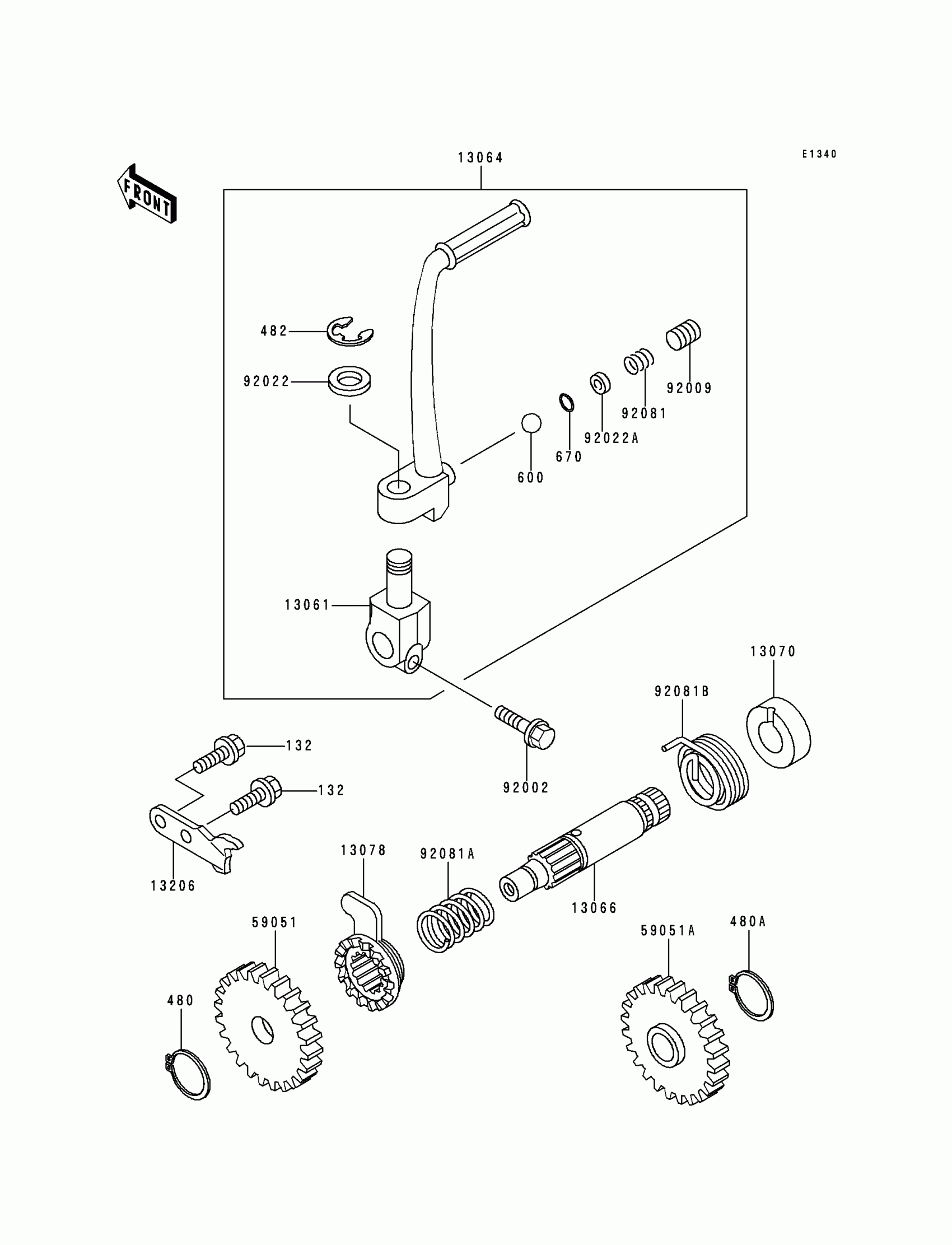

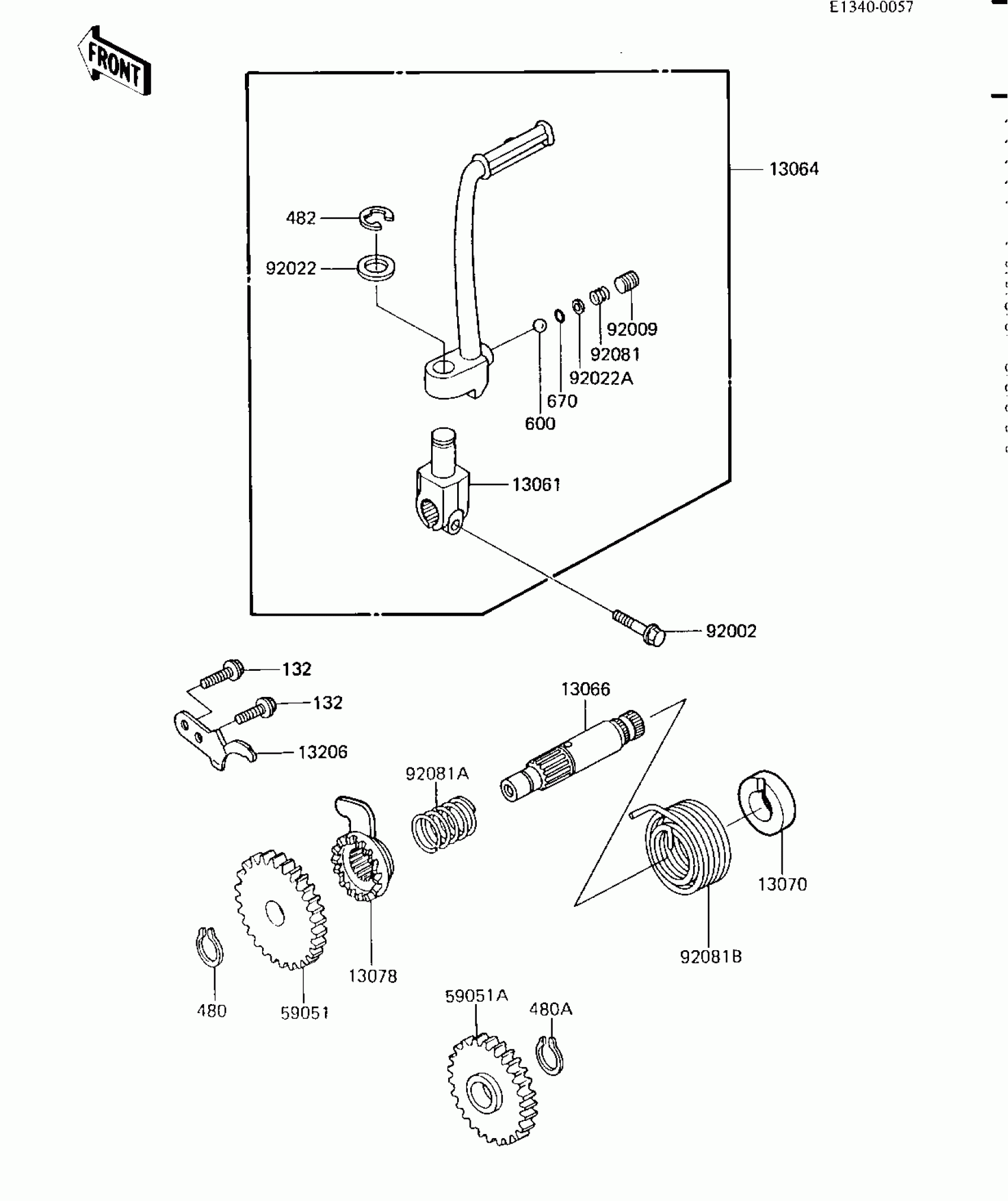

Find the part on the Kickstarter Mechanism diagram for your 1987 Kawasaki Big Wheel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki Big Wheel Kickstarter Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13061

BOSS,KICK LEVER

13061-1049

1
Out of stock

13064

1

$101.33

In stock

13066

SHAFT-KICK

13066-1055

1
Out of stock

13070

GUIDE,KICK SPRING

13070-1137

1
Out of stock

13078

RATCHET

13078-1004

1

$60.14

In stock

13206

GUIDE-KICK

13206-1055

1
Out of stock

59051

GEAR-SPUR,32T

59051-1026

1

$52.72

In stock

59051A

GEAR-SPUR,31T,KICK

59051-1147

1

$66.46

In stock

92002

BOLT,6X20

92002-1237

1

$3.43

In stock

92009

SCREW,SOCKET,8X8

92009-1312

1
Out of stock

92022

WASHER,12.2X20X1.6

92022-1236

1
Out of stock

92022A

WASHER

92022-1481

1
Out of stock

92081

SPRING,KICK PEDAL

92081-020

1

$3.39

In stock

92081A

SPRING,RATCHET

92081-122

1

$6.98

In stock

92081B

SPRING,KICKSTARTER

92081-1907

1
Out of stock

132

BOLT-FLANGED-SMALL,6X16

132G0616

1
Out of stock

480

1

$0.67

In stock

480A

1

$1.85

In stock

482

CIRCLIP-TYPE-E,8MM

482K8000

1
Out of stock

600

BALL-STEEL,1/4

600A0800

1

$0.67

In stock

670

O RING,4MM

670B1504

1

$3.27

In stock
