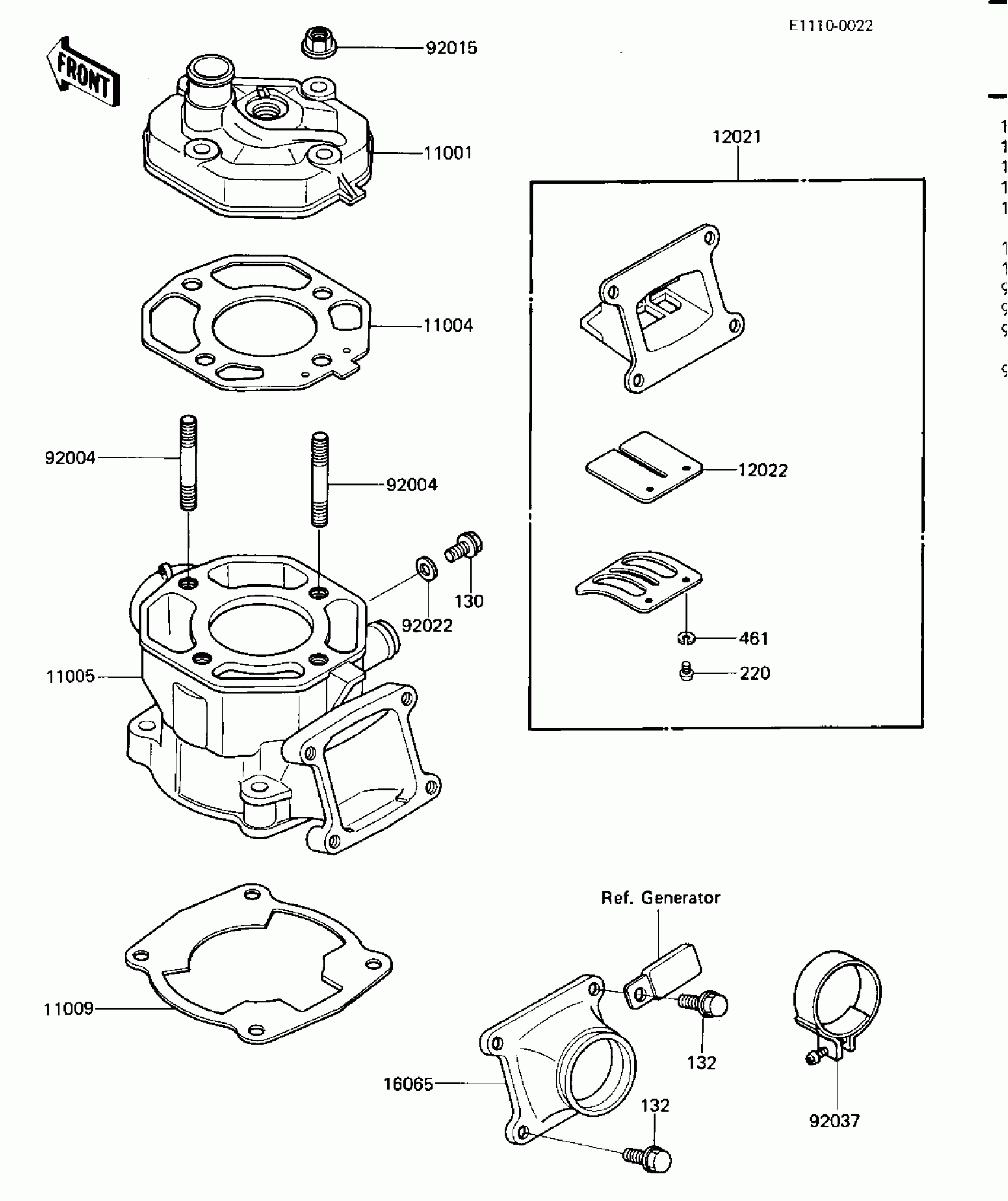

Kawasaki Big Wheel CYLINDER HEAD/CYLINDER/REED VALVE Diagram

Description

Price

11001

HEAD-CYLINDER

11001-1210

Unavailable

11004

GASKET-HEAD

11004-1138

Unavailable

11005

CYLINDER-ENGINE

11005-1506

Unavailable

11009

GASKET,CYLINDER BASE

11009-1970

$8.08

12021

VALVE-ASSY-REED

12021-1060

Unavailable

12022

VALVE-REED

12022-1055

Unavailable

16065

HOLDER-CARBURETOR

16065-1160

Unavailable

92004

STUD,8X35

92004-1009

$5.06

92015

NUT,8MM

92015-1143

$0.66

92022

WASHER OIL PUMP BANJO

92022-077

$3.13

92037

CLAMP

92037-1172

$6.69

130

BOLT-FLANGED

130C0608

Unavailable

132

BOLT-FLANGED-SMALL

132G0620

Unavailable

220

SCREW-PAN-CROS,3X8

220B0308

$0.63

461

WASHER SPRING 3MM

461F0300

Unavailable
