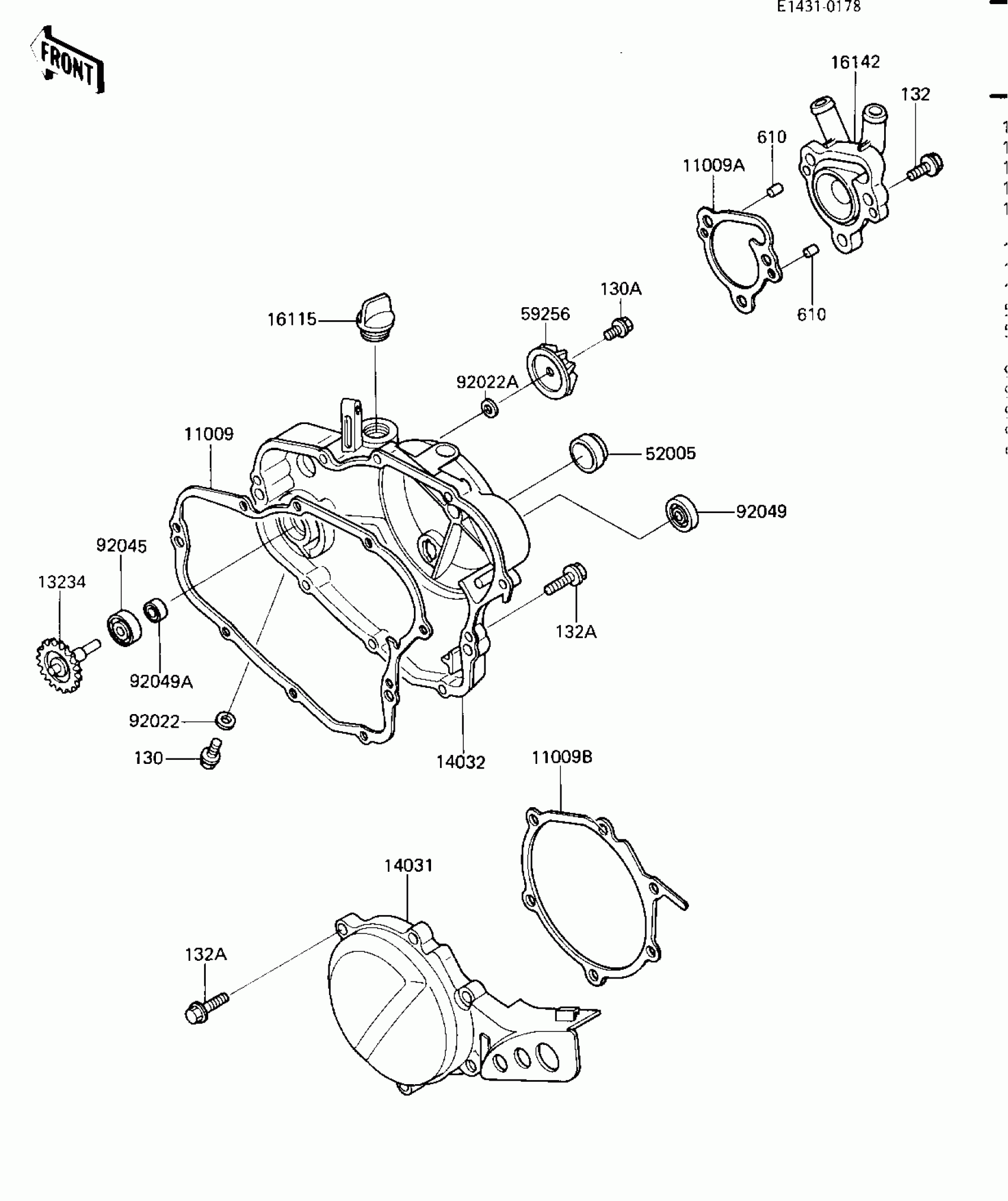

Kawasaki Big Wheel ENGINE COVERS/WATER PUMP Diagram

Description

Price

11009

GASKET,CLUTCH COVER

11009-1971

Unavailable

11009A

GASKET,PUMP COVER

11009-1972

$5.98

11009B

GASKET,GENERATOR COVER

11009-1974

$17.53

13234

SHAFT-COMP,PUMP

13234-1068

Unavailable

14031

COVER-GENERATOR

14031-1185

Unavailable

14032

COVER-CLUTCH

14032-1201

Unavailable

16115

CAP-OIL FILLER

16115-018

$8.38

16142

COVER-PUMP

16142-1065

Unavailable

52005

GAUGE,OIL LEVEL

52005-1055

$11.67

59256

IMPELLER

59256-1064

$33.05

92022

WASHER OIL PUMP BANJO

92022-077

$3.13

92022A

WASHER,5.2X13X1

92022-1380

$3.43

92045

BEARING-BALL

92045-1212

$9.80

92049

SEAL-OIL,SB16244

92049-002

$7.04

92049A

SEAL-OIL,MHSD8X18X10J-1

92049-1366

$14.11

130

BOLT-FLANGED

130C0608

Unavailable

130A

BOLT-FLANGED

130P0510

Unavailable

132

BOLT-FLANGED-SMALL

132G0620

Unavailable

132A

BOLT-FLANGED-SMALL

132G0625

Unavailable

610

ROLLER,4X8

610A0408

$3.43
