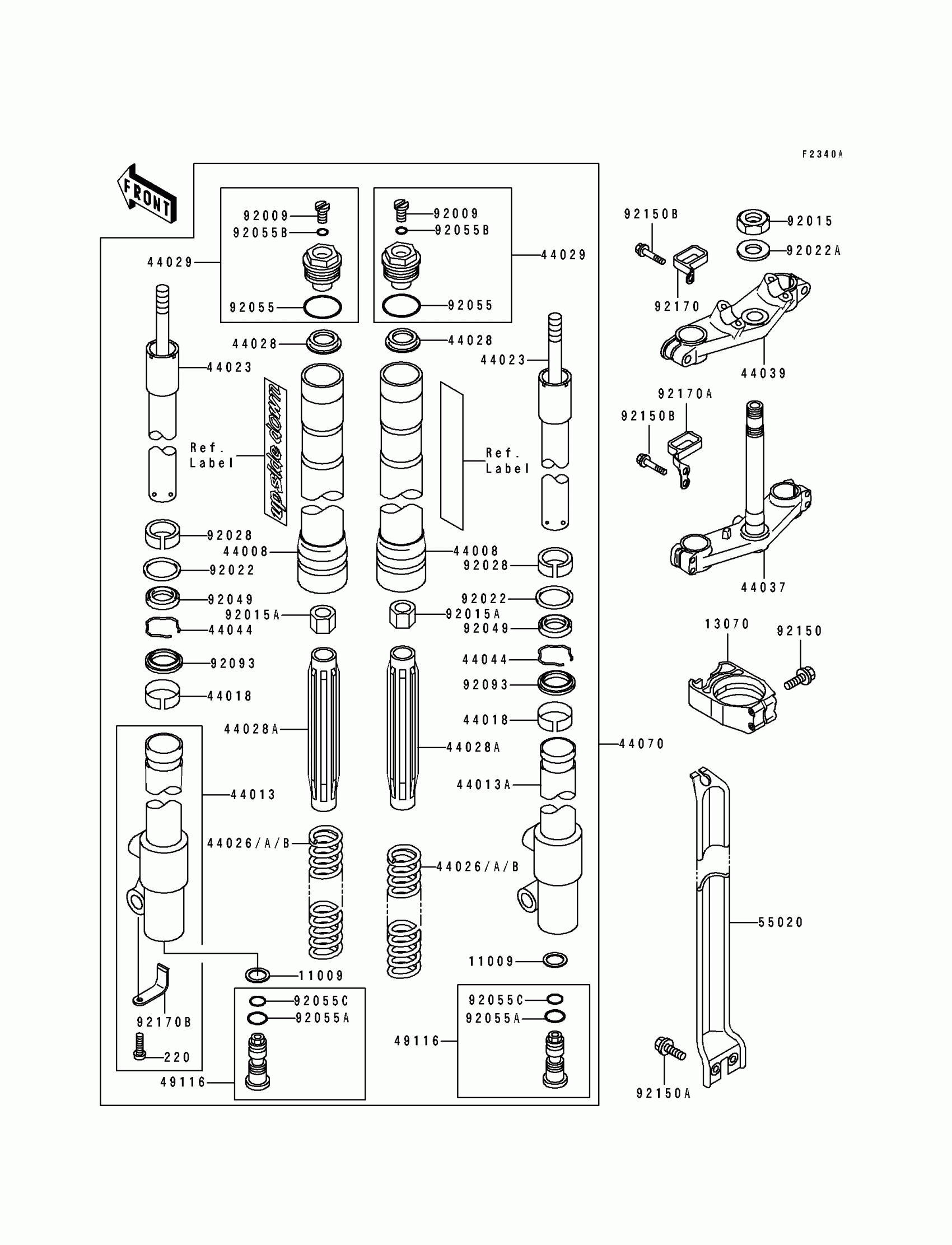

Find the part on the Front Fork diagram for your 1994 Kawasaki Big Wheel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Kawasaki Big Wheel Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,FORK CYLINDER BOLT

11009-1592

1
Out of stock

13070

GUIDE,FORK

13070-1253

1
Out of stock

44008

PIPE-FORK OUTER

44008-1019

1
Out of stock

44013

PIPE-FORK INNER,LH

44013-1361

1
Out of stock

44013A

PIPE-FORK INNER,RH

44013-1362

1
Out of stock

44018

PISTON-FORK

44018-1058

1
Out of stock

44023

CYLINDER-COMP-FORK

44023-1089

1
Out of stock

44026

SPRING-FRONT FORK,K=0.29

44026-1507

1
Out of stock

44026A

SPRING-FRONT FORK,K=0.28

44026-1514

1
Out of stock

44026B

SPRING-FRONT FORK,K=0.30

44026-1515

1
Out of stock

44028

GUIDE-FORK SPRING

44028-1085

1
Out of stock

44028A

GUIDE-FORK SPRING

44028-1090

1
Out of stock

44029

SEAT-FORK SPRING

44029-1152

1
Out of stock

44037

HOLDER-FORK UNDER

44037-1294

1
Out of stock

44039

HOLDER-FORK UPPER

44039-1221

1
Out of stock

44044

RING-SNAP

44044-015

1
Out of stock

44070

DAMPER-ASSY,FORK

44070-5158

1
Out of stock

49116

VALVE-ASSY,FORK

49116-1110

1
Out of stock

55020

GUARD,FORK

55020-1405

1
Out of stock

92009

SCREW

92009-1568

1
Out of stock

92015

NUT,STEERING STEM,22MM

92015-1653

1
Out of stock

92015A

NUT

92015-1839

1
Out of stock

92022

WASHER,FRONT FORK

92022-1275

1
Out of stock

92022A

WASHER,STEERING STEM

92022-1873

1
Out of stock

92028

BUSHING

92028-1656

1
Out of stock

92049

SEAL-OIL,FORK OUTER TUBE

92049-1394

1
Out of stock

92055

RING-O

92055-1123

1
Out of stock

92055A

RING-O

92055-1156

1
Out of stock

92055B

RING-O,2.8X6.6X1.9

92055-1441

1
Out of stock

92055C

RING-O,FORK VALVE

92055-1502

1
Out of stock

92093

SEAL,FORK OUTER TUBE

92093-1333

1
Out of stock

92150

BOLT,5X35

92150-1270

1
Out of stock

92150A

BOLT,6X14

92150-1340

1
Out of stock

92150B

BOLT,FLANGED,8X35

92150-1499

1
Out of stock

92170

CLAMP,CABLE

92170-1264

1
Out of stock

92170A

CLAMP,CABLE

92170-1265

1
Out of stock

92170B

CLAMP

92170-1298

1
Out of stock

220

SCREW PAN HEAD 5X10

220B0510

1
Out of stock
