1987 Kawasaki KX80 Front Hub Diagram

← All diagrams

Find the part on the Front Hub diagram for your 1987 Kawasaki KX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

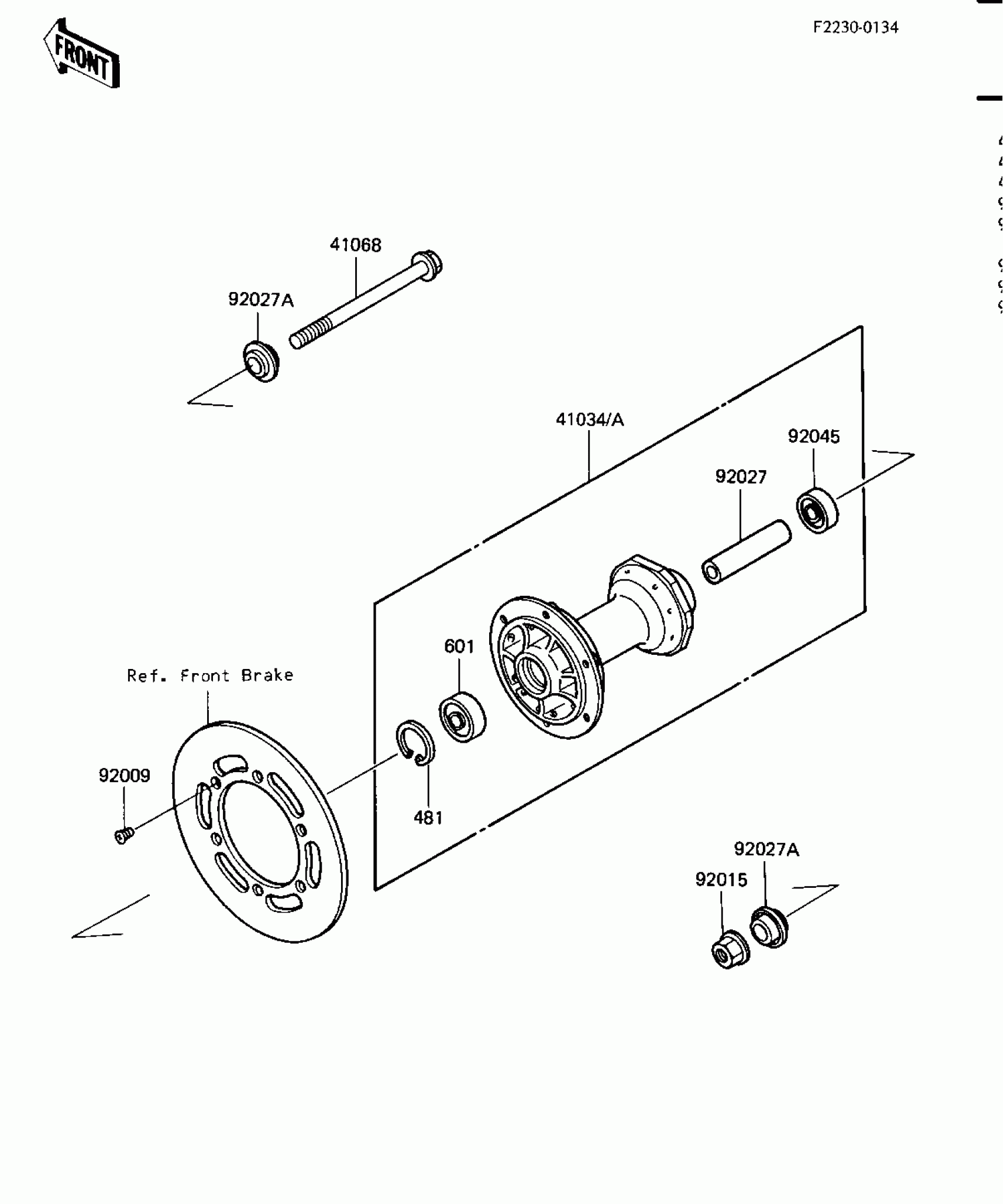

1987 Kawasaki KX80 Front Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41034A

1

$173.60

In stock

41068

AXLE,FR

41068-1200

1
Out of stock

92009

SCREW,6X10

92009-1375

1
Out of stock

92015

NUT,FLANGED,12MM

92015-1156

1
Out of stock

92027

COLLAR,L=81

92027-1925

1
Out of stock

92027A

COLLAR,L=6

92027-1926

1
Out of stock

92045

1

$24.47

In stock

481

1

$2.37

In stock

601

1

$23.98

In stock
