1982 Kawasaki KX80 Rear Suspension Diagram

← All diagrams

Find the part on the Rear Suspension diagram for your 1982 Kawasaki KX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

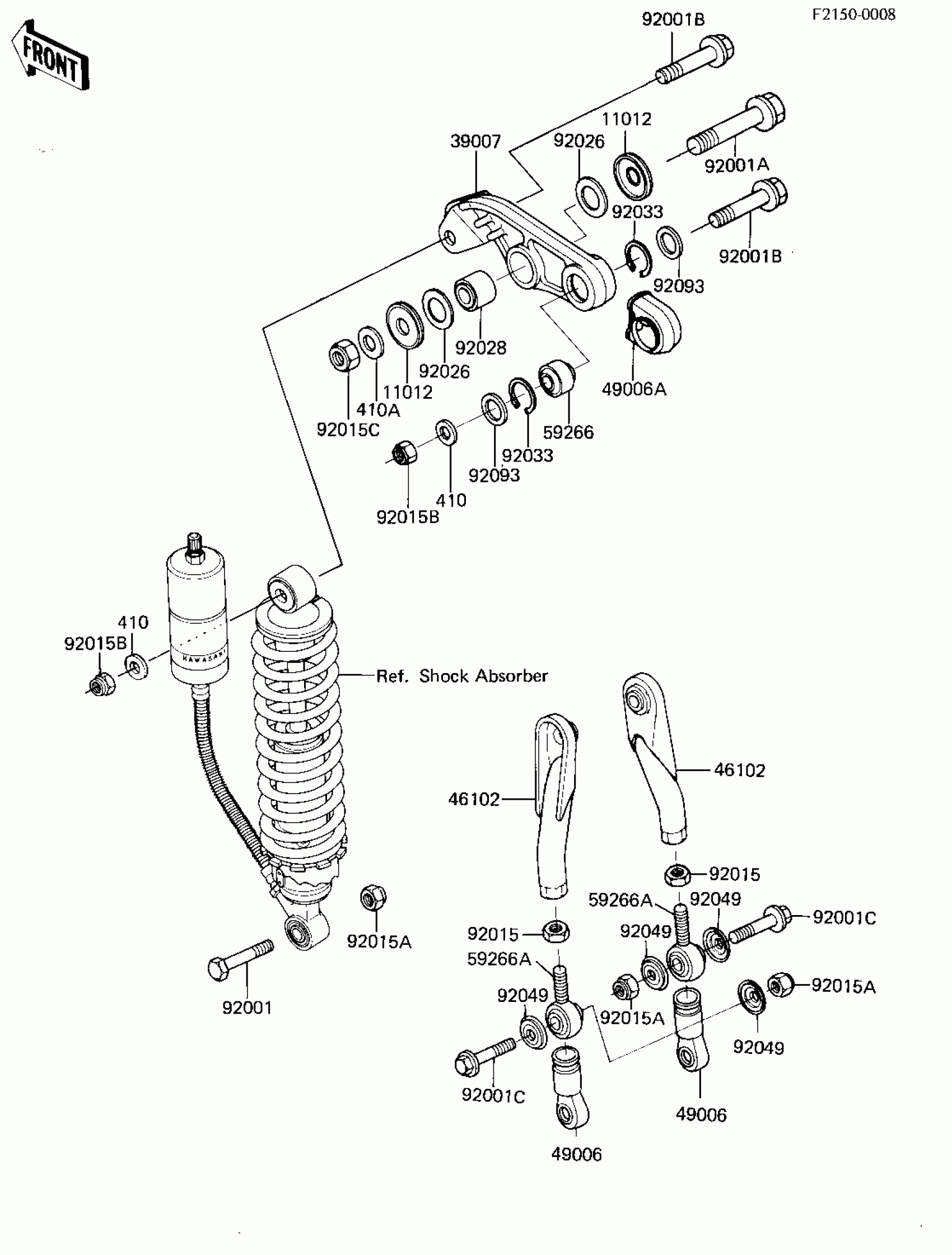

1982 Kawasaki KX80 Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,SUSPENSION ARM

11012-1202

1
Out of stock

39007

ARM-SUSP,UNI-TRAK

39007-1008

1

$51.34

In stock

46102

ROD,UNI-TRAK ARM

46102-1034

1

$25.41

In stock

49006

BOOT,UNITRAK

49006-1049

1
Out of stock

49006A

BOOT,UNI-TRAK ARM

49006-1064

1
Out of stock

59266

JOINT-BALL

59266-1051

1
Out of stock

59266A

JOINT,BALL

59266-1005

1

$89.38

In stock

92001

BOLT,FLANGED,10X44

92001-1299

1
Out of stock

92001A

BOLT,14X56

92001-1363

1
Out of stock

92001B

BOLT,12X48

92001-1364

1

$6.25

In stock

92001C

BOLT,10X34

92001-1366

1

$2.90

In stock

92015

NUT 10MM

92016-027

1
Out of stock

92015A

NUT,10MM

92015-1429

1

$5.45

In stock

92015B

NUT-LOCK,12MM

92019-009

1

$7.20

In stock

92015C

NUT-LOCK,14MM

92019-011

1
Out of stock

92026

SPACER,21.2X34X0.5

92026-1100

1

$2.53

In stock

92028

BUSHING,REAR SHOCK

92028-1153

1

$52.10

In stock

92033

RING-SNAP,22.3MM

92033-1071

1

$7.80

In stock

92049

OIL SEAL,BALL JOINT

92049-1072

1
Out of stock

92093

SEAL

92093-1067

1

$8.53

In stock

410

WASHER-PLAIN-SMALL,12MM

410B1200

1
Out of stock

410A

WASHER-PLAIN-SMALL,14MM

410B1400

1
Out of stock
