1988 Kawasaki KX80 Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 1988 Kawasaki KX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

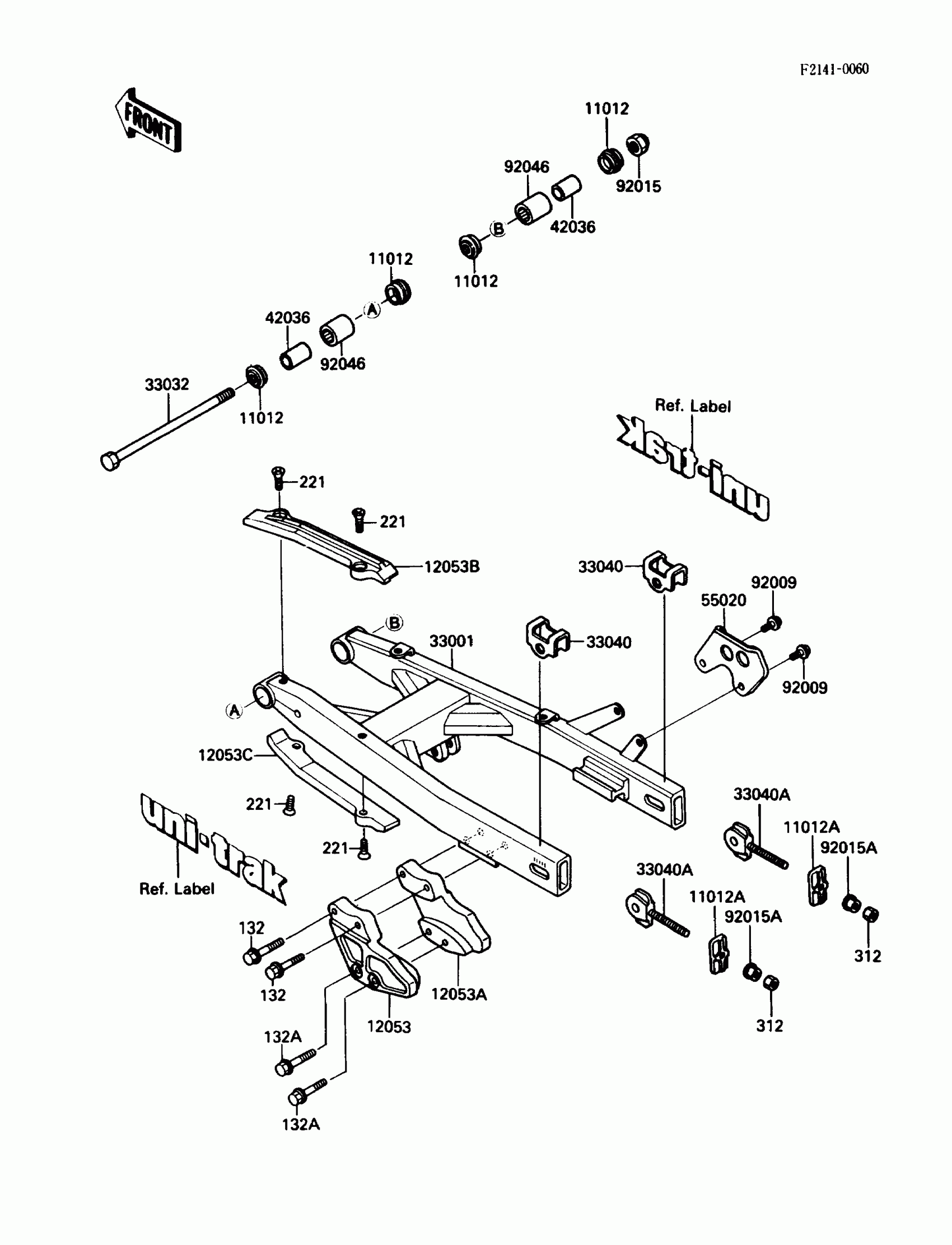

1988 Kawasaki KX80 Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1263

1

$13.08

In stock

11012A

CAP,CHAIN ADJUSTER

11012-1601

1
Out of stock

12053

GUIDE-CHAIN,RR,LH

12053-1203

1

$83.43

In stock

12053A

GUIDE-CHAIN,RR,RH

12053-1204

1

$83.43

In stock

12053B

GUIDE-CHAIN,FR,UPP

12053-1237

1
Out of stock

12053C

GUIDE-CHAIN,FR,LWR

12053-1238

1
Out of stock

33001

ARM-COMP-SWING

33001-1299

1

$436.03

In stock

33032

SHAFT-SWING ARM

33032-1116

1

$34.76

In stock

33040

ADJUSTER-CHAIN,OUTSIDE

33040-1066

1
Out of stock

33040A

1

$41.29

In stock

42036

1

$10.25

In stock

55020

GUARD,CALIPER

55020-1247

1
Out of stock

92009

SCREW,6X14,WHITE

92009-1287

1
Out of stock

92015

NUT,LOCK,12MM

92015-1063

1
Out of stock

92015A

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92046

BEARING-NEEDLE

92046-1046

1

$24.62

In stock

132

BOLT-FLANGED-SMALL,6X40

132G0640

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X45

132G0645

1
Out of stock

221

1

$2.92

In stock

312

NUT 6MM

312B0600

1
Out of stock
