1988 Kawasaki KX80 Rear HUB Diagram

← All diagrams

Find the part on the Rear HUB diagram for your 1988 Kawasaki KX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

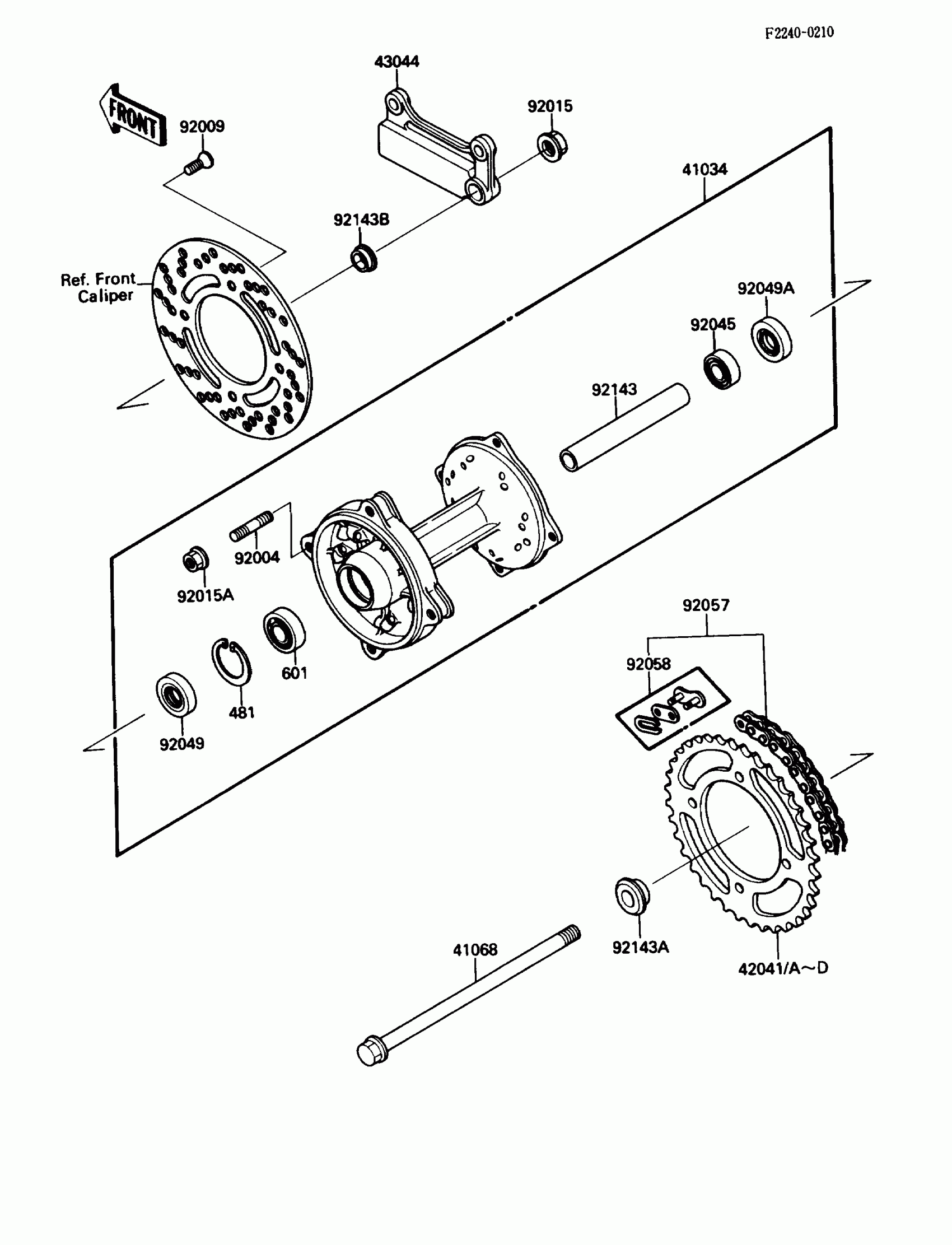

1988 Kawasaki KX80 Rear HUB Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41034

1

$344.16

In stock

41068

AXLE,RR

41068-1251

1
Out of stock

42041

SPROCKET-HUB,49T

42041-1207

1
Out of stock

42041A

SPROCKET-HUB,47T

42041-1226

1
Out of stock

42041B

SPROCKET-HUB,48T

42041-1227

1
Out of stock

42041C

SPROCKET-HUB,50T

42041-1228

1
Out of stock

42041D

SPROCKET-HUB,46T

42041-1301

1
Out of stock

43044

HOLDER-COMP-CALIPER

43044-1073

1
Out of stock

92004

STUD,8X16

92004-1183

1
Out of stock

92009

SCREW,6X10

92009-1375

1
Out of stock

92015

NUT,FLANGED,12MM

92015-1156

1
Out of stock

92015A

NUT,FLANGED,LOCK,8MM

92015-1668

1
Out of stock

92045

BEARING-BALL,TMB201LLUC3/2A

92045-1062

1
Out of stock

92049

SEAL-OIL,DD20377

92049-1096

1
Out of stock

92049A

SEAL-OIL,DC17343.5

92049-1290

1
Out of stock

92057

CHAIN,DRIVE,DID420MBK-1X120L

92057-1251

1
Out of stock

92058

JOINT-CHAIN

92058-1053

1
Out of stock

92143

COLLAR,12.2X17.3X110.5

92143-1128

1
Out of stock

92143A

COLLAR,REAR AXLE,L=14.5

92143-1129

1
Out of stock

92143B

COLLAR,REAR AXLE,L=9

92143-1130

1
Out of stock

481

CIRCLIP-TYPE-C,37MM

481J3700

1
Out of stock

601

BEARING-BALL,#6301UUC3

601B6301UU

1
Out of stock
