1995 Kawasaki Bayou 400 4X4 Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1995 Kawasaki Bayou 400 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

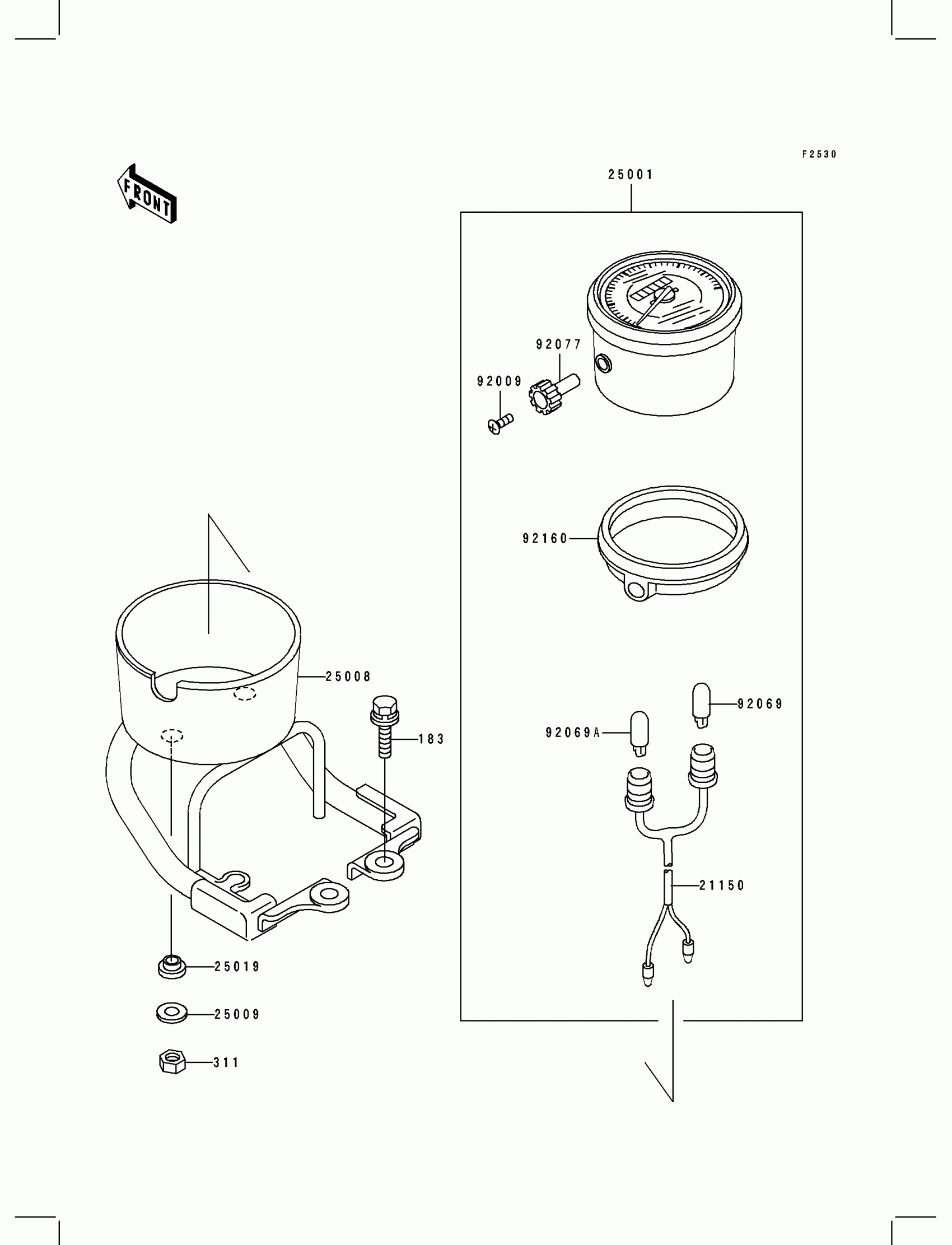

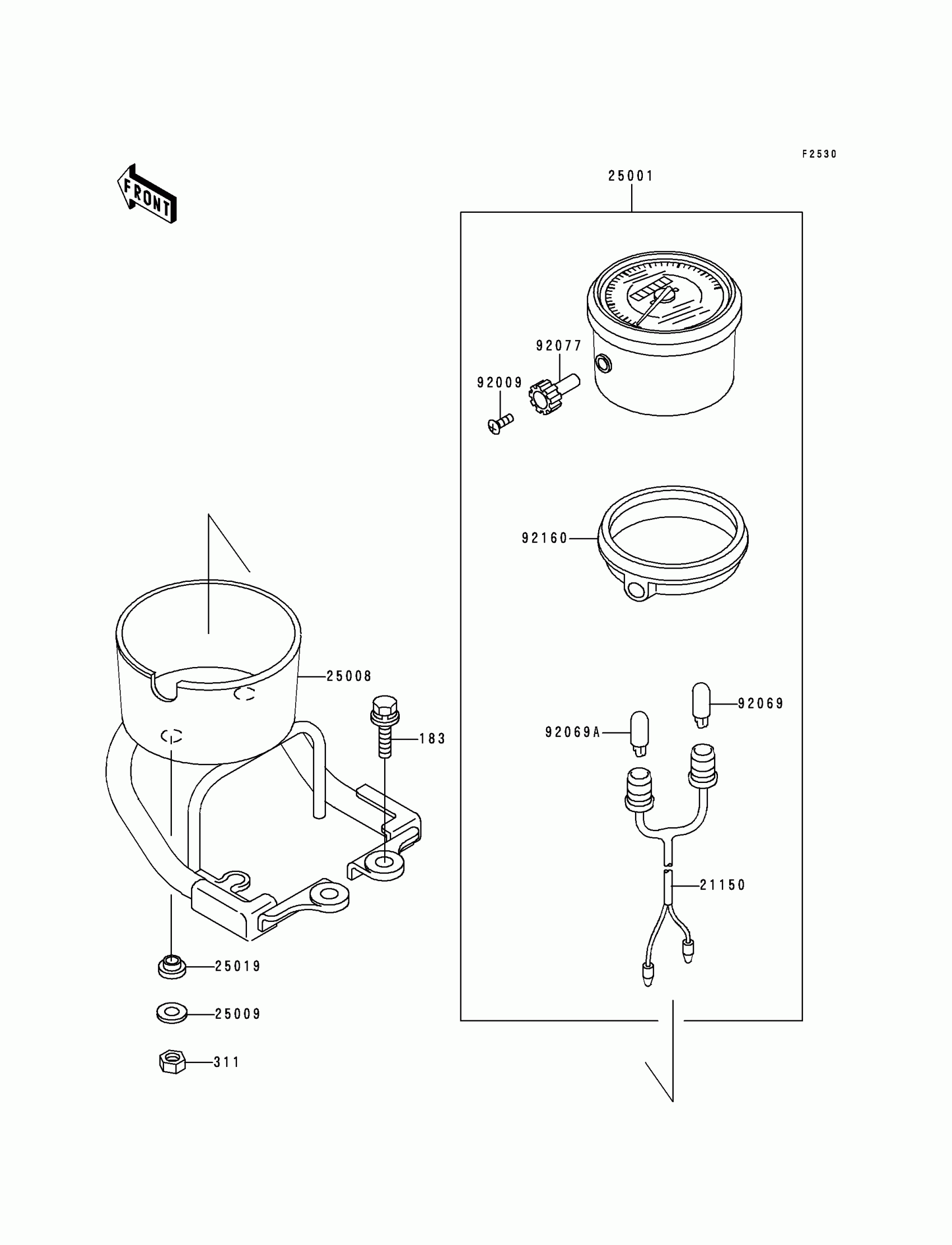

1995 Kawasaki Bayou 400 4X4 Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21150

CORD-ASSY,SPEEDOMETER

21150-1056

1
Out of stock

25001

METER-ASSY,SPEED,KPH

25001-1894

1
Out of stock

25008

BRACKET-METER

25008-1191

1
Out of stock

25009

WASHER,5.2X16X1.2

25009-004

1
Out of stock

25019

DAMPER,METER

25019-023

1
Out of stock

92009

SCREW,2X6,BLACK

92009-1172

1
Out of stock

92069

BULB,12V 1.7W,T10

92069-1059

1
Out of stock

92069A

BULB,12V 1.7W,T6.5

92069-1070

1
Out of stock

92077

KNOB,METER

92077-1073

1
Out of stock

92160

DAMPER,SPEEDOMETER

92160-1064

1
Out of stock

183

BOLT-UPSET-WS-SMALL

183J0814

1
Out of stock

311

NUT-HEX

311C0500

1
Out of stock
