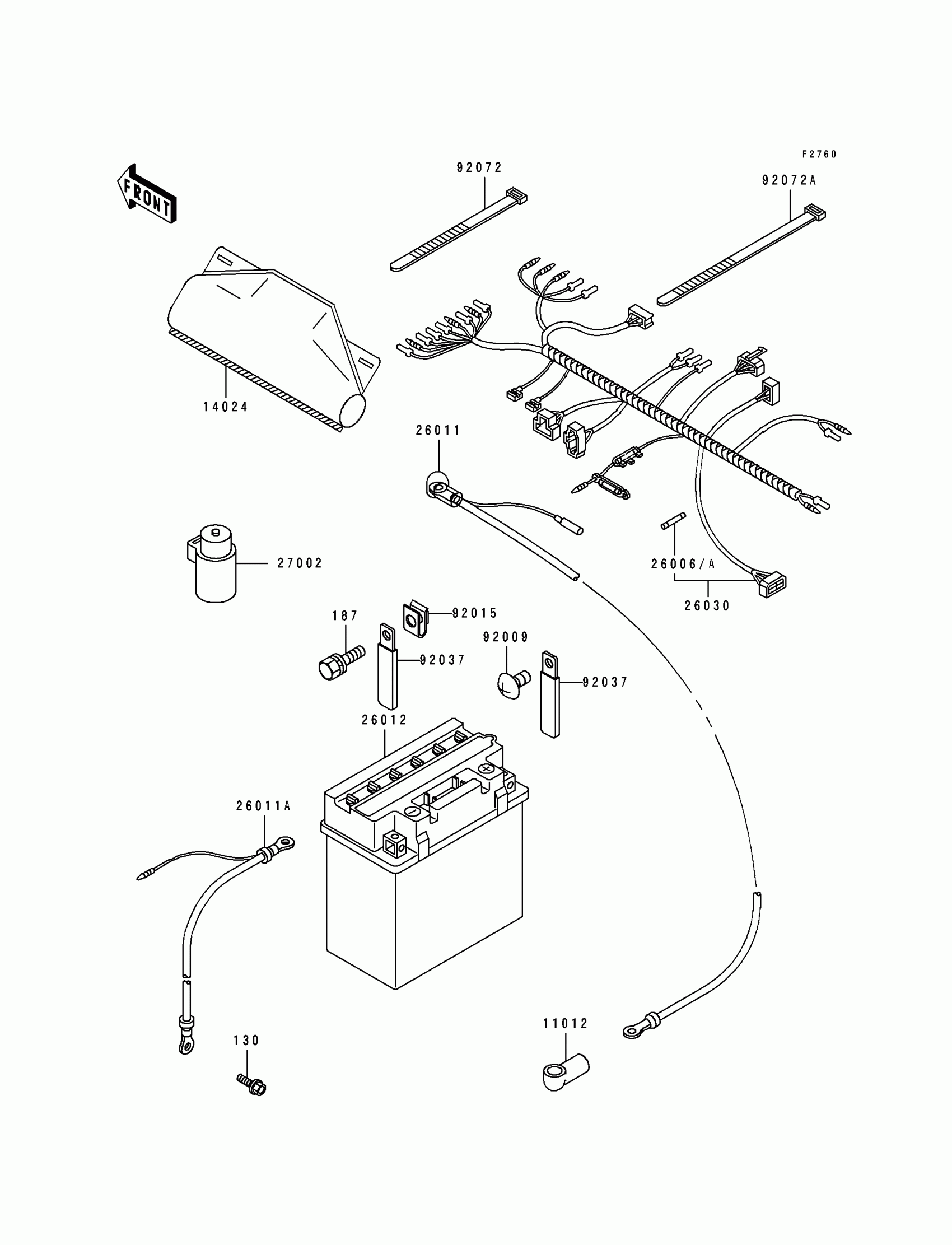

Kawasaki Bayou 400 4X4 Chassis Electrical Equipment Diagram

Description

Price

11012

CAP,TERMINAL

11012-1354

$9.85

14024

COVER,COUPLER

14024-1624

Unavailable

26006

FUSE,30A,L=30

26006-1059

Unavailable

26006A

FUSE,8A,L=30

26006-1062

$4.68

26011

WIRE-LEAD,BATTERY(+)

26011-1513

$30.29

26011A

WIRE-LEAD,BATTERY(-)

26011-1514

Unavailable

26012

BATTERY,YB16CL-B,12V 19AH

26012-1242

$126.40

26030

HARNESS,MAIN

26030-1119

$61.83

27002

RELAY-ASSY

27002-1051

$48.39

92009

SCREW,TAPPING,4X8

92009-1155

$2.42

92015

NUT,6MM

92015-1671

$7.49

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92072

BAND,L=123

92072-030

$3.81

92072A

BAND,L=188

92072-1239

$1.30

130

BOLT-FLANGED,6X10

130B0610

Unavailable

187

BOLT-UPSET-WSP

187C0614

Unavailable
