1995 Kawasaki Bayou 400 4X4 Battery Case Diagram

← All diagrams

Find the part on the Battery Case diagram for your 1995 Kawasaki Bayou 400 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

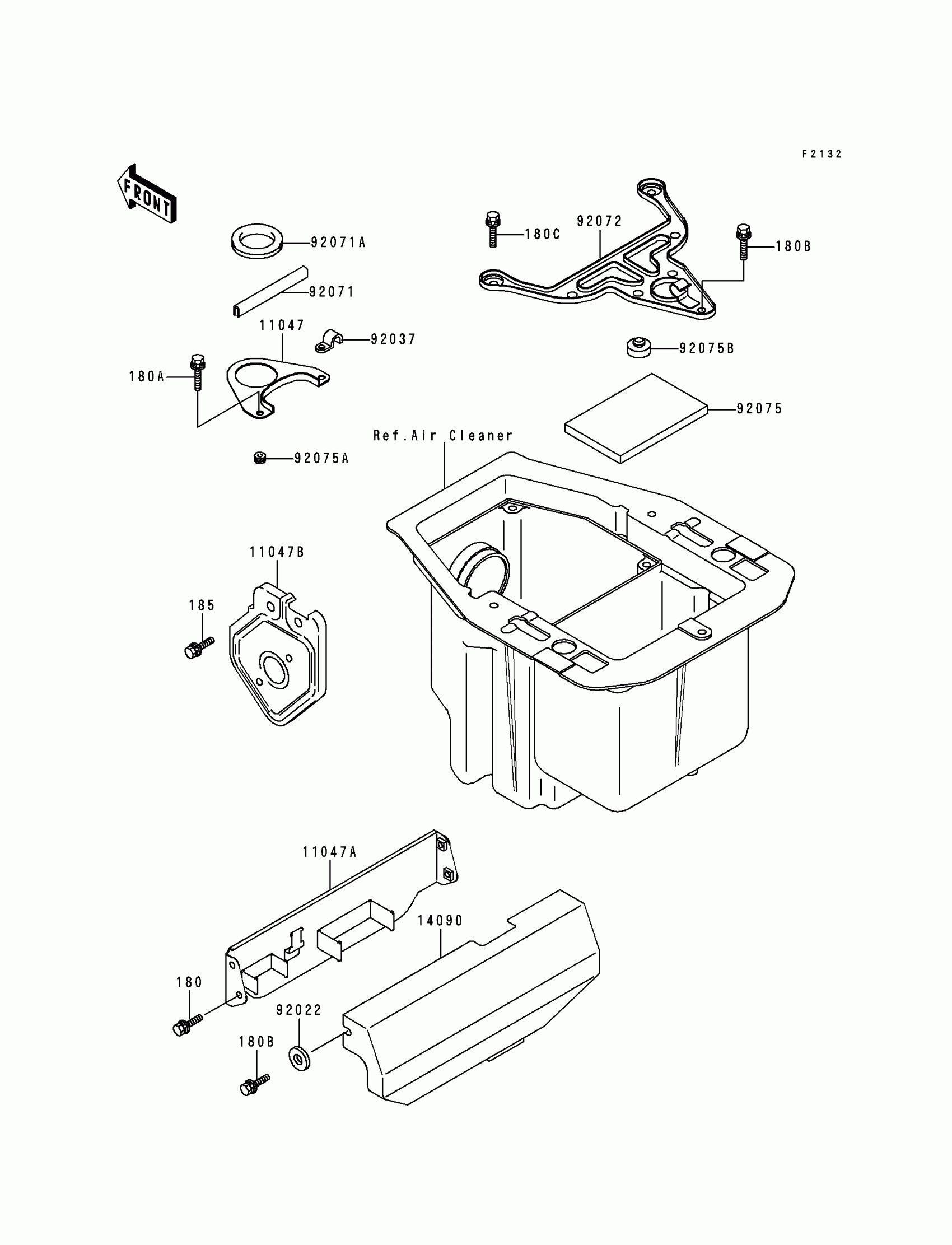

1995 Kawasaki Bayou 400 4X4 Battery Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11047

BRACKET,RESERVOIR TANK

11047-1573

1
Out of stock

11047A

BRACKET,ELECTRIC BASE

11047-1579

1
Out of stock

11047B

BRACKET,REGULATOR

11047-1659

1
Out of stock

14090

COVER,ELECTRIC

14090-1154

1
Out of stock

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

1
Out of stock

92037

CLAMP

92037-3730

1
Out of stock

92071

GROMMET

92071-1198

1
Out of stock

92071A

GROMMET

92071-3731

1
Out of stock

92072

BAND,BATTERY

92072-1289

1
Out of stock

92075

DAMPER,BATTERY

92075-1997

1
Out of stock

92075A

DAMPER,CASE

92075-222

1
Out of stock

92075B

DAMPER,9X24X14

92075-281

1
Out of stock

180

BOLT-UPSET-WS

180D0612

1
Out of stock

180A

BOLT-UPSET-WS,6X14

180G0614

1
Out of stock

180B

BOLT-UPSET-WS,6X16

180G0616

1
Out of stock

180C

BOLT-UPSET-WS,6X20

180G0620

1
Out of stock

185

BOLT-UPSET-WSP-SMALL,8X16

185C0816

1
Out of stock
