1995 Kawasaki Bayou 400 4X4 Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 1995 Kawasaki Bayou 400 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

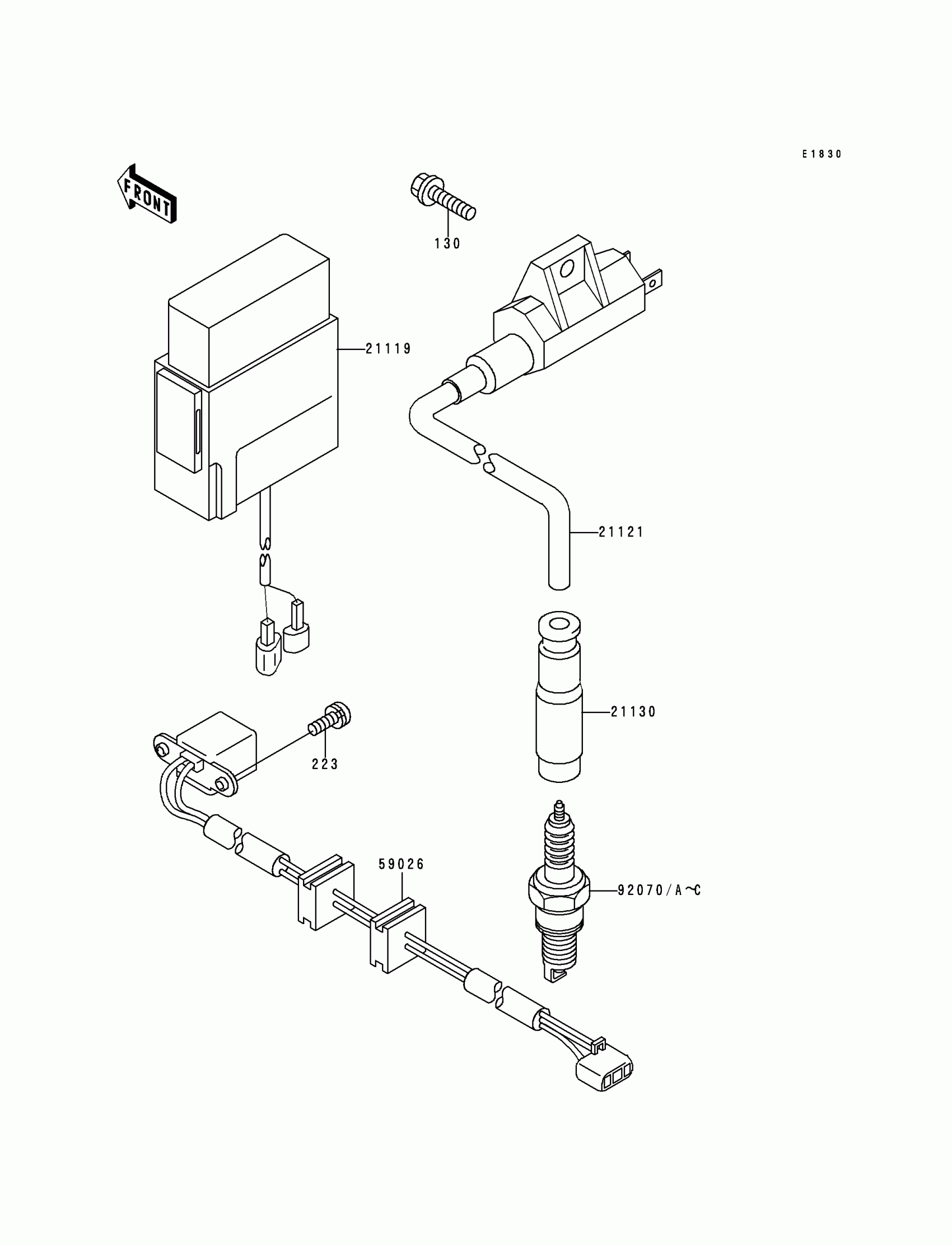

1995 Kawasaki Bayou 400 4X4 Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21119

IGNITER

21119-1341

1
Out of stock

21121

COIL-IGNITION

21121-1160

1
Out of stock

21130

CAP-SPARK PLUG

21130-1071

1
Out of stock

59026

COIL-PULSING

59026-1110

1
Out of stock

92070

PLUG-SPARK,DPR8EA-9(NGK)

92070-1065

1
Out of stock

92070A

PLUG-SPARK,DP8EA-9(NGK)

92070-1066

1
Out of stock

92070B

Not Available As Spare Part - Friction Washer

1
Out of stock

92070C

Not Available As Spare Part - Friction Washer

1
Out of stock

130

BOLT-FLANGED

130D0616

1
Out of stock

223

SCREW-PAN-WS-CROS,5X14

223B0514

1
Out of stock
