1992 Kawasaki Bayou 300 4X4 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1992 Kawasaki Bayou 300 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

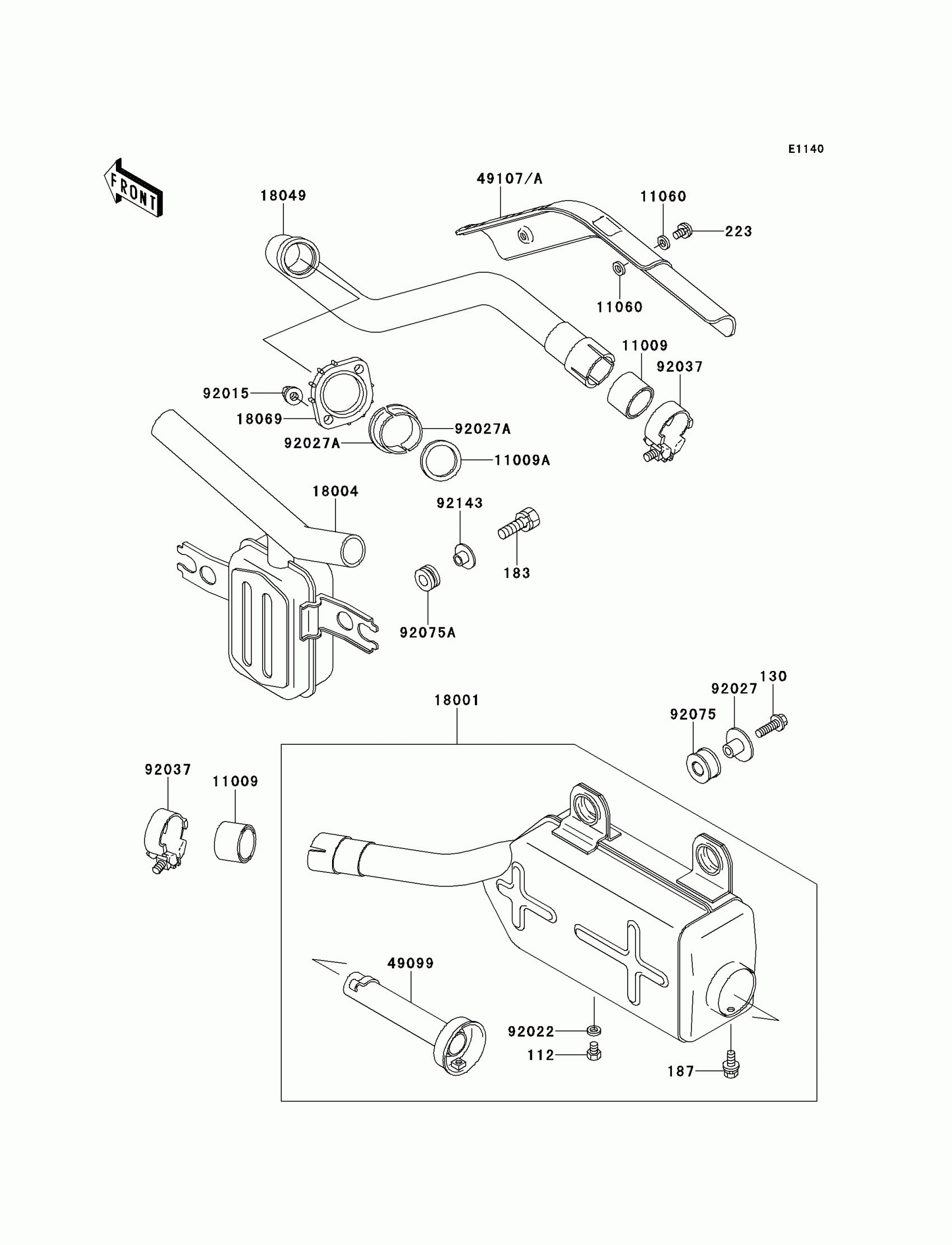

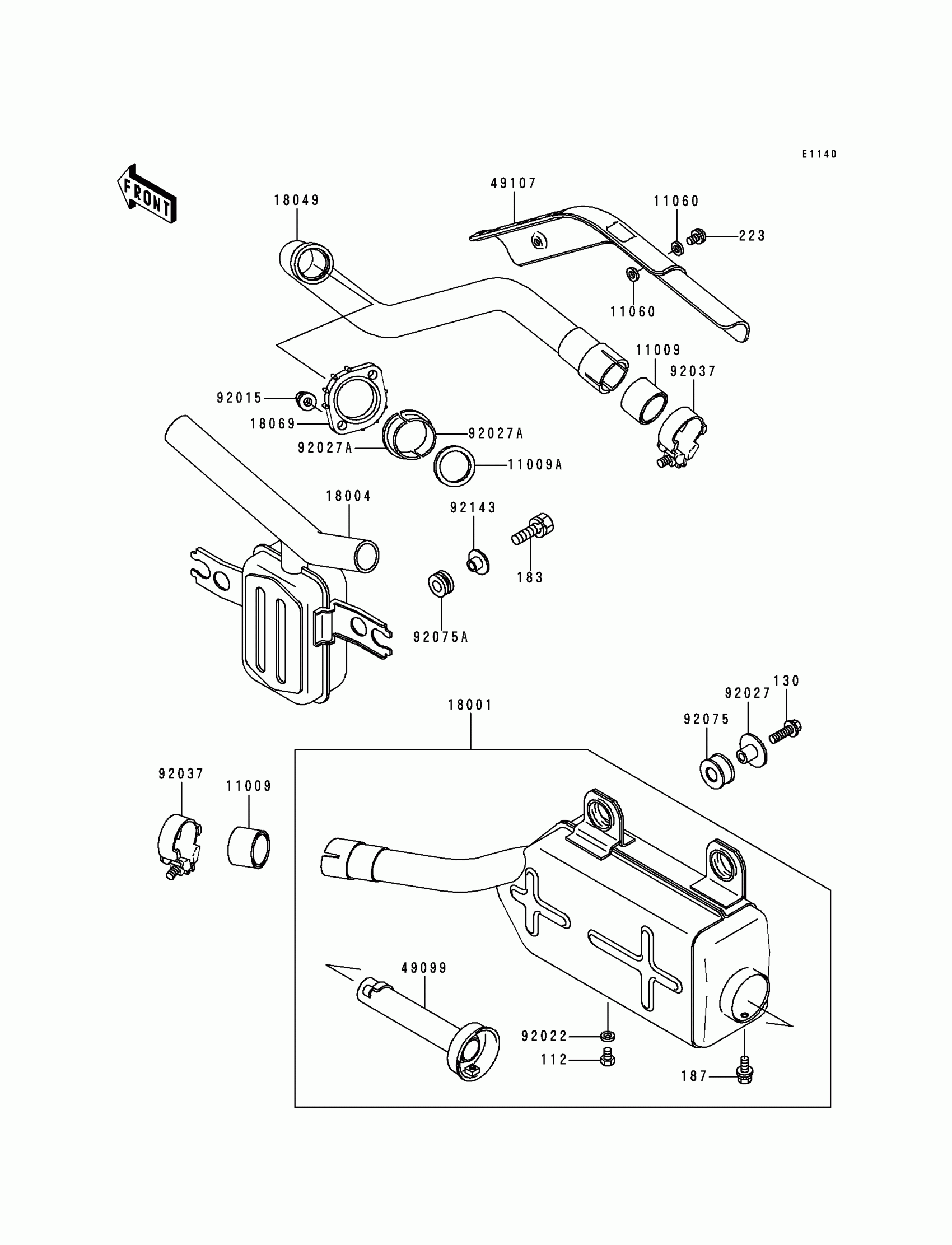

1992 Kawasaki Bayou 300 4X4 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

112

BOLT-UPSET,6X8

112B0608

1
Out of stock

130

BOLT-FLANGED,8X25,BLACK

130J0825

1
Out of stock

183

BOLT-UPSET-WS-SMALL

183J0822

1
Out of stock

187

BOLT 6X12

187B0612

1
Out of stock

223

1

$3.28

In stock

11009

1

$24.28

In stock

11009A

1

$6.55

In stock

11060

GASKET,6.2X11.5X1.5

11060-1109

1

$3.63

In stock

18001

MUFFLER

18001-1700

1

$377.80

In stock

18004

CHAMBER-PREMUFFLER

18004-1061

1

$201.33

In stock

18049

PIPE-EXHAUST

18049-1433

1

$97.15

In stock

18069

HOLDER-EXHAUST PIPE

18069-1014

1

$14.79

In stock

49099

BAFFLE-PIPE MUFFLER

49099-1249

1

$107.45

In stock

49107

COVER-EXHAUST PIPE

49107-1082

1

$76.01

In stock

92015

NUT,8MM

92015-1402

1

$3.72

In stock

92022

WASHER,6.2X11X1

92022-304

1
Out of stock

92027

COLLAR,MUFFLER

92027-1981

1

$8.53

In stock

92027A

1

$3.75

In stock

92037

CLAMP

92037-1956

1

$19.24

In stock

92075

DAMPER,MUFFLER

92075-1809

1

$6.66

In stock

92075A

DAMPER

92075-1898

1

$3.72

In stock

92143

1

$8.16

In stock
