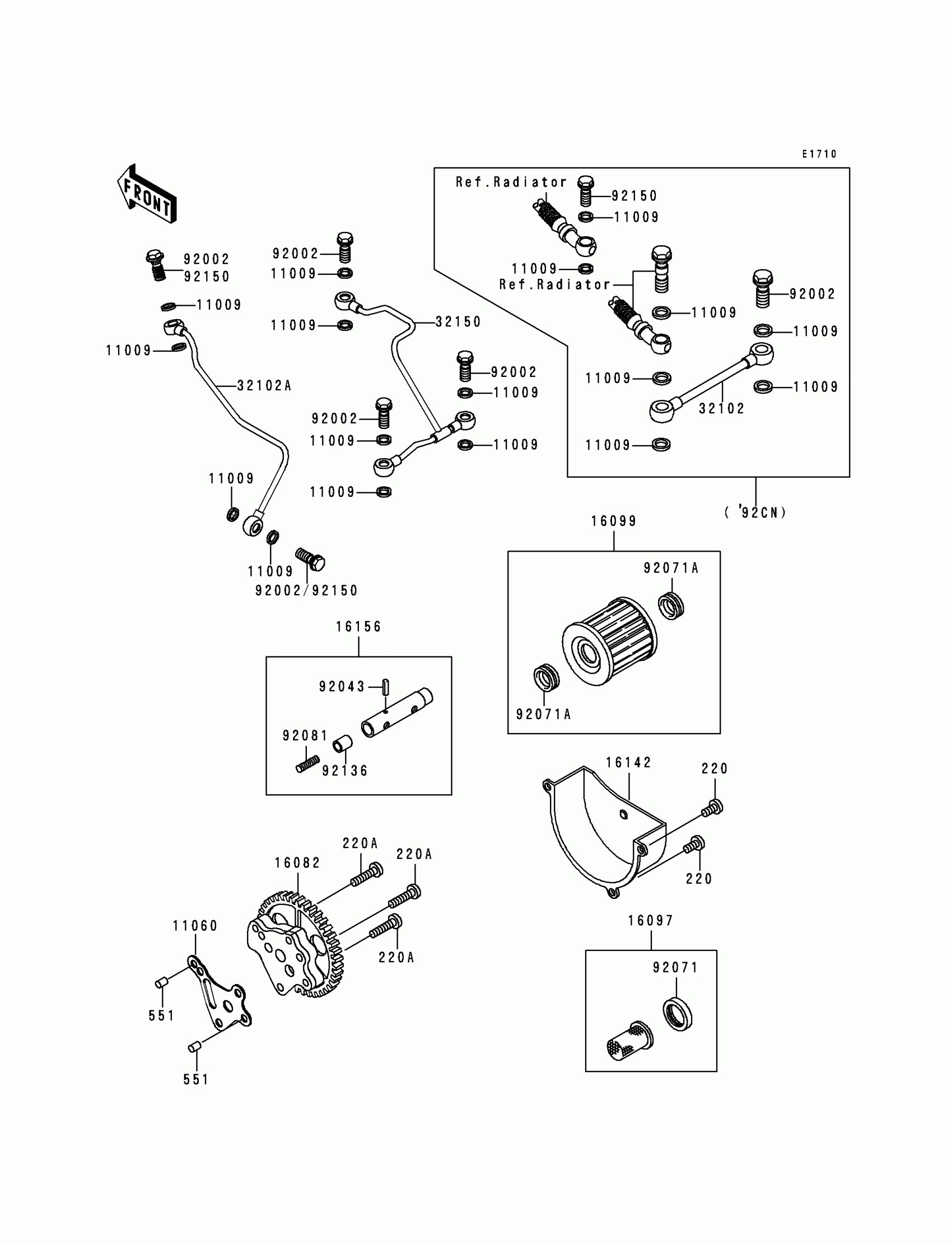

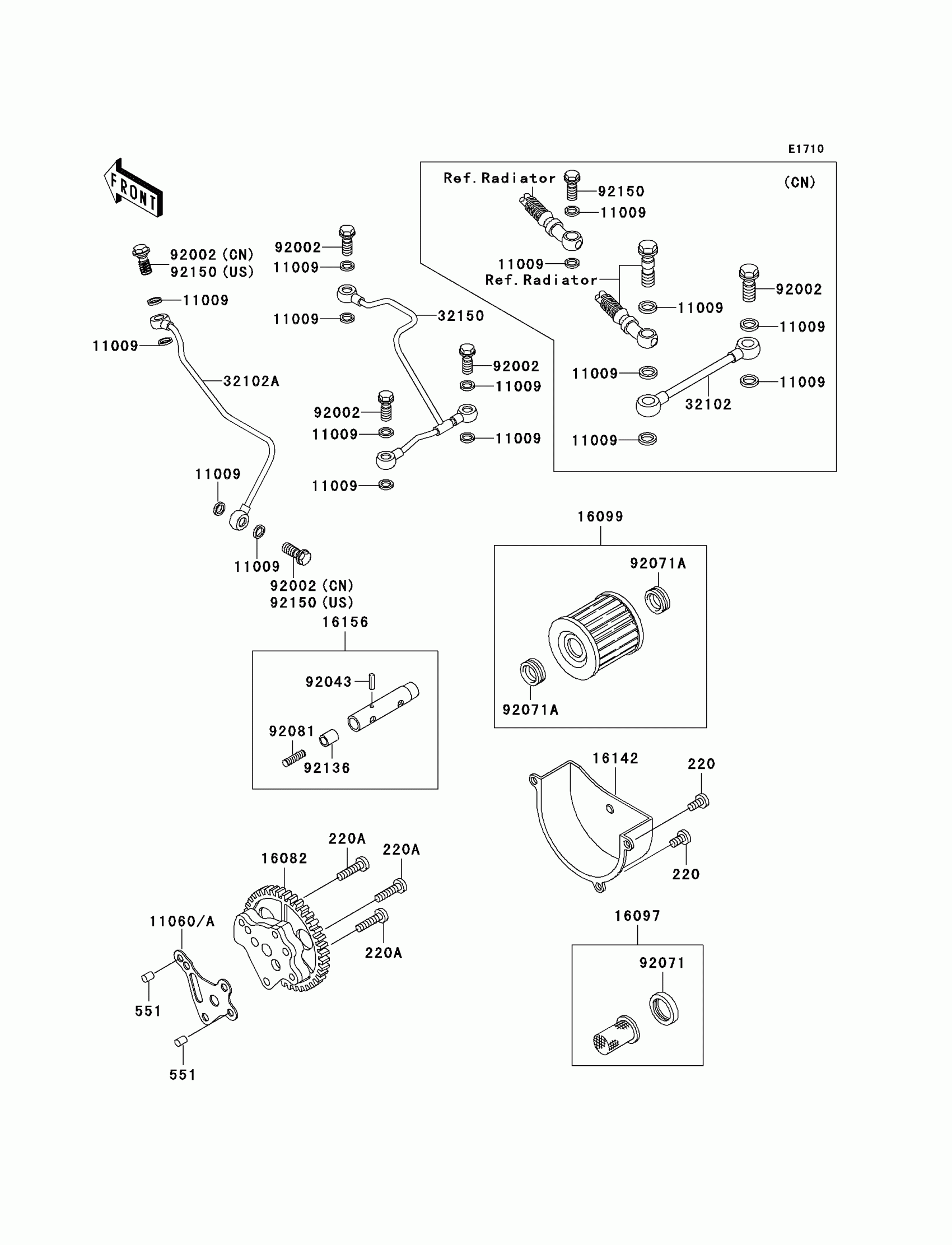

Kawasaki Bayou 300 4X4 Oil Pump/Oil Filter Diagram

Description

Price

220

SCREW PAN HEAD 6X12

220B0612

Unavailable

220A

SCREW PAN HEAD 6X25

220B0625

Unavailable

551

PIN-DOWEL,6X8

551A0608

$3.53

11060

GASKET,OIL PUMP

11060-1234

Unavailable

16082

PUMP-ASSY-OIL

16082-1068

$184.36

16097

FILTER-ASSY-OIL

16097-1001

$9.30

16099

ELEMENT-OIL FILTER

16099-004

$7.06

16142

COVER-PUMP

16142-1064

$16.44

16156

PISTON-ASSY,VALVE,BY-PASS

16156-002

$18.77

32102A

PIPE

32102-1967

Unavailable

92002

BOLT,OIL,L=23

92002-1888

$4.15

92043

PIN,SPRING,2.2X13.5

92043-123

$4.17

92071

GROMMET,OIL STRAINER

92071-100

$4.14

92071A

GROMMET,OIL FILTER

92071-101

$4.14

92081

SPRING,PISTON

92081-043

$4.14

92136

VALVE

92136-002

$4.14

11009

GASKET,10X14.5X1.5

11009-1105

$4.88

11009

GASKET,10X14.5X1.5

11009-1105

$4.88

32102

PIPE

32102-1966

$44.22

32150

PIPE

32150-1153

Unavailable

92150

BOLT,BANJO,10X23

92150-1123

Unavailable

92150

BOLT,BANJO,10X23

92150-1123

Unavailable
