1992 Kawasaki Bayou 300 4X4 Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 1992 Kawasaki Bayou 300 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

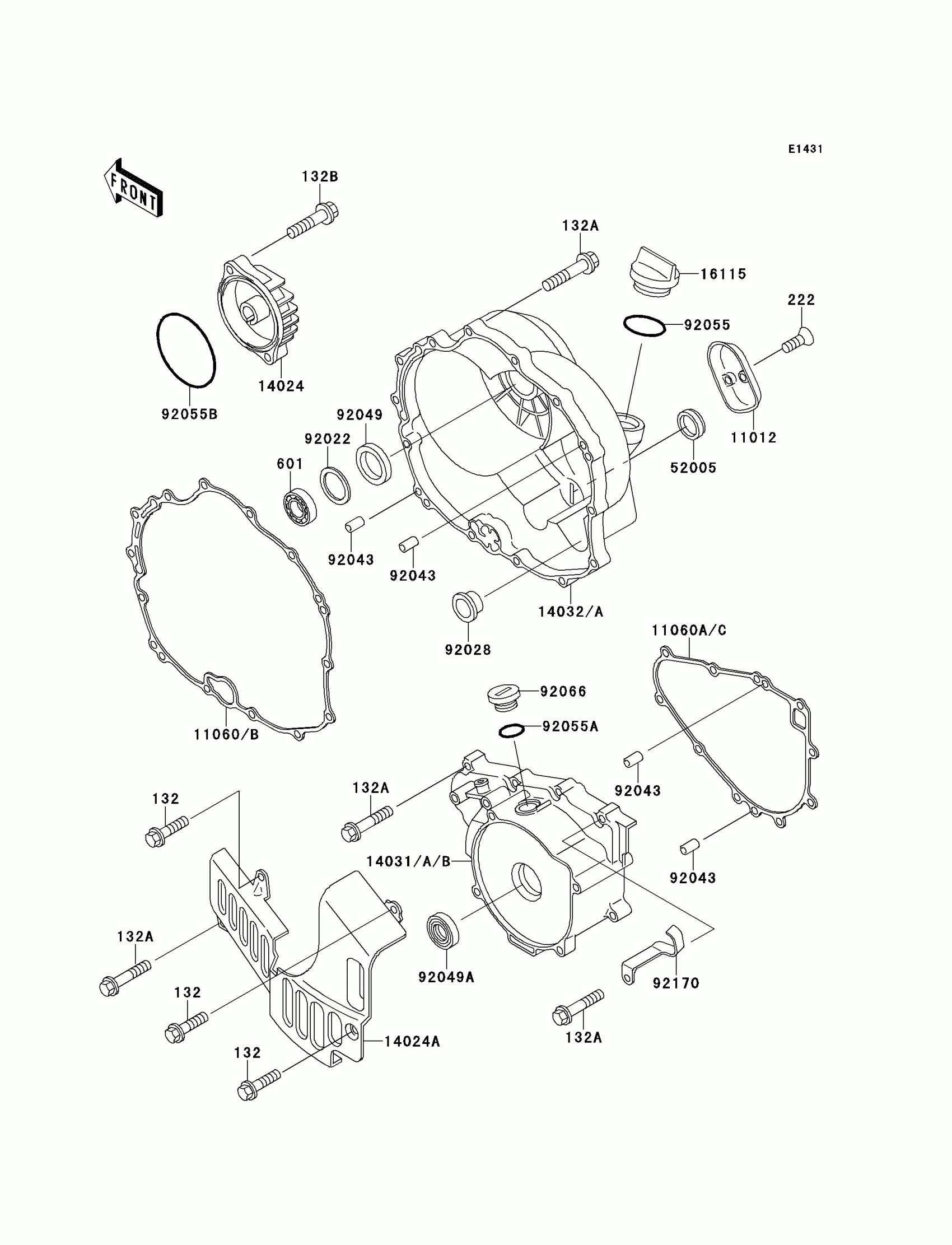

1992 Kawasaki Bayou 300 4X4 Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X12

132J0612

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X30

132J0630

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X25

132Y0625

1
Out of stock

222

SCREW-CSK-RD-CROS

222C0512

1
Out of stock

601

BEARING-BALL,#6202C3

601B6202

1
Out of stock

11012

CAP,CLUTCH RELEASE

11012-1644

1
Out of stock

11060

GASKET,CLUTCH COVER

11060-1230

1
Out of stock

11060A

GASKET,GENERATOR COVER

11060-1231

1
Out of stock

14024

COVER,OIL FILTER

14024-1062

1

$57.24

In stock

14024A

COVER

14024-1655

1

$72.56

In stock

14031

COVER-GENERATOR

14031-1223

1
Out of stock

14032

COVER-CLUTCH

14032-1259

1
Out of stock

16115

CAP-OIL FILLER

16115-1009

1
Out of stock

52005

GAUGE,OIL LEVEL

52005-1009

1
Out of stock

92022

WASHER,25.3X33X1

92022-1109

1
Out of stock

92028

BUSHING

92028-1544

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92049

SEAL-OIL,SCY 15X30X7

92049-1158

1
Out of stock

92049A

SEAL-OIL,TC25356

92049-1317

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1
Out of stock

92055A

RING-O,20X2

92055-1146

1
Out of stock

92055B

RING-O,63.6X2.4

92055-1433

1
Out of stock

92066

PLUG,COVER

92066-1163

1
Out of stock

92170

CLAMP

92170-1065

1

$10.24

In stock
