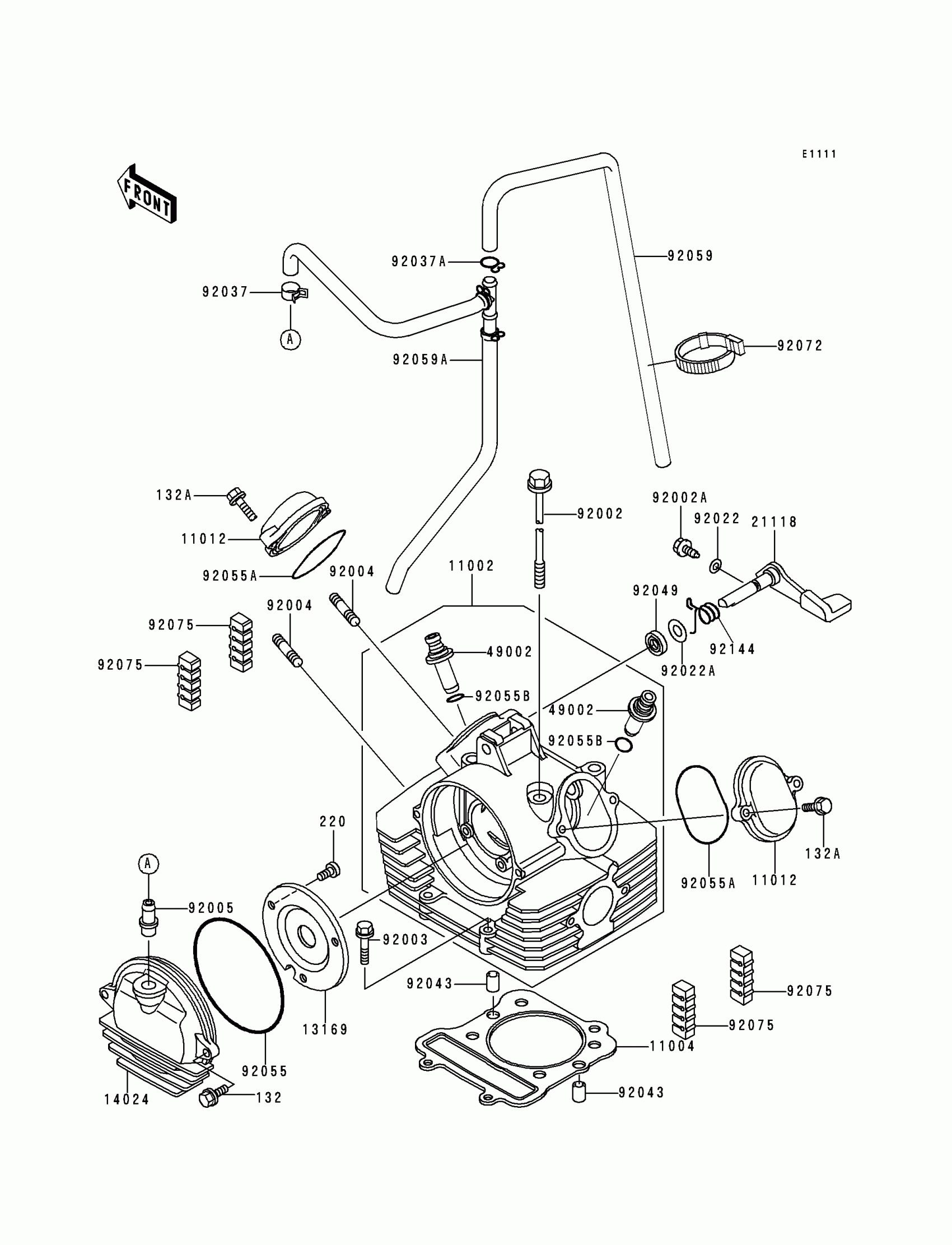

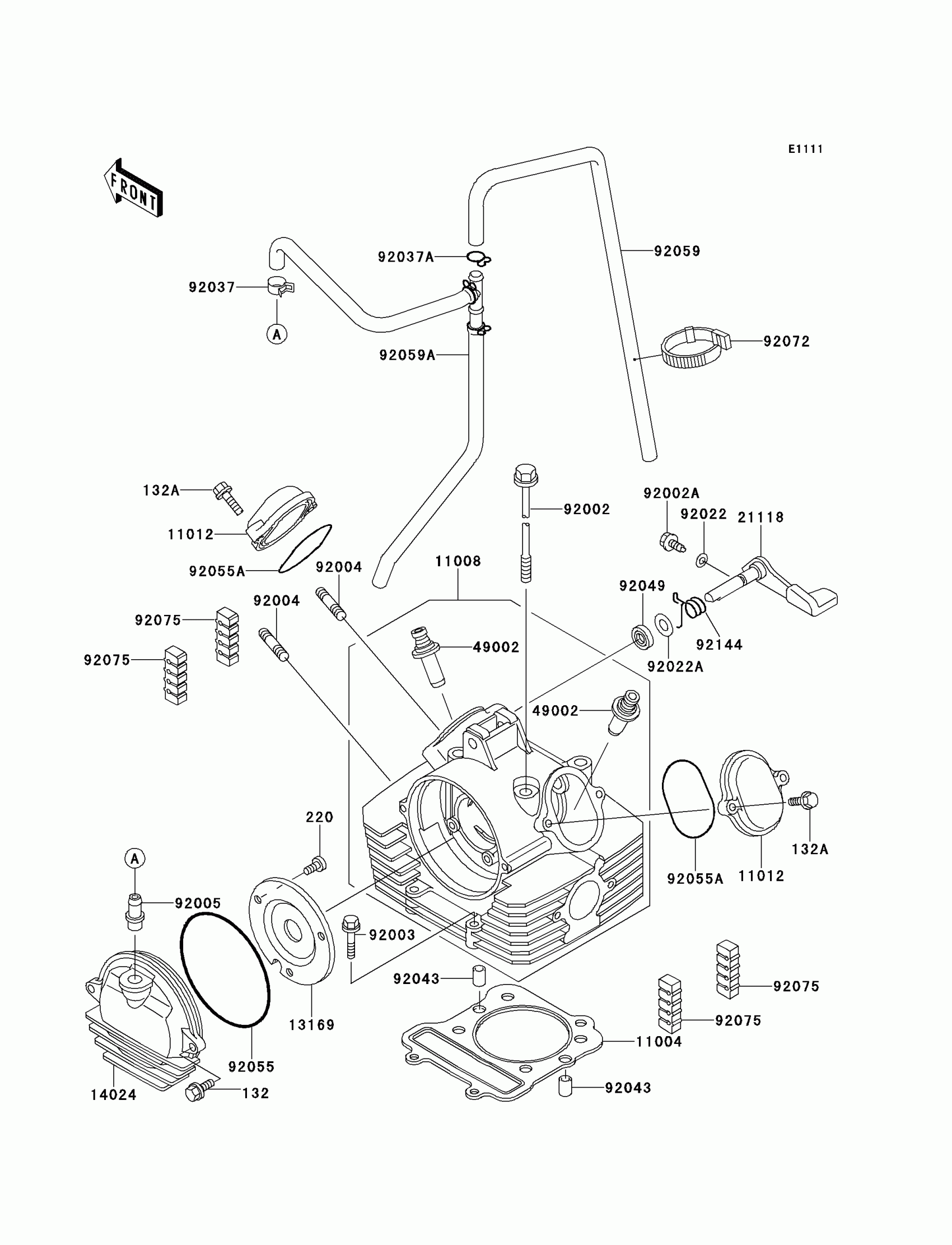

Kawasaki Bayou 300 4X4 Cylinder Head Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X16

132Y0616

Unavailable

132A

BOLT-FLANGED-SMALL,6X25

132Y0625

Unavailable

220

SCREW PAN HEAD 6X10

220B0610

Unavailable

11002

HEAD-ASSY-CYLINDER

11002-5043

Unavailable

11004

GASKET-HEAD

11004-1183

Unavailable

11012

CAP,ROCKER ARM

11012-1486

$29.66

13169

PLATE,CAMSHAFT COVER

13169-1961

$13.17

14024

COVER,CAMSHAFT

14024-1060

$70.35

21118

DECOMPRESSOR,LEVER

21118-1062

$38.92

49002

GUIDE-VALVE

49002-1092

$36.05

92002

BOLT,8X233

92002-1515

Unavailable

92002A

BOLT,FLANGED-SMALL,6X8.1X2.5

92002-1962

$2.99

92003

BOLT,6X32

92003-229

$7.30

92004

STUD,8X30

92004-1121

$4.14

92005

FITTING,BREATHER PIPE

92005-1124

$18.68

92022

WASHER OIL PUMP BANJO

92022-077

$2.84

92022A

WASHER,10.2X20X0.5

92022-1649

$3.29

92037

CLAMP,HOSE CLIP

92037-1181

$2.31

92037A

CLAMP,12.5MM

92037-1271

$1.73

92043

PIN,8.2X10X14

92043-1264

$0.51

92049

SEAL-OIL,SD10205-1HS

92049-1286

$6.07

92055

"O" RING,99M/M

92055-107

$7.89

92055A

RING-O,53.5X2.6

92055-112

$4.97

92055B

RING-O,11.7MM

92055-1265

$8.01

92059

TUBE,BREATHER

92059-1511

$29.92

92059A

TUBE,ASSY

92059-1787

$37.86

92072

BAND,L=149

92072-031

$3.81

92075

DAMPER

92075-1657

Unavailable

92144

SPRING,DECOMPRESSOR

92144-1154

$5.10
