1992 Kawasaki Bayou 300 4X4 Crankcase Diagram

← All diagrams

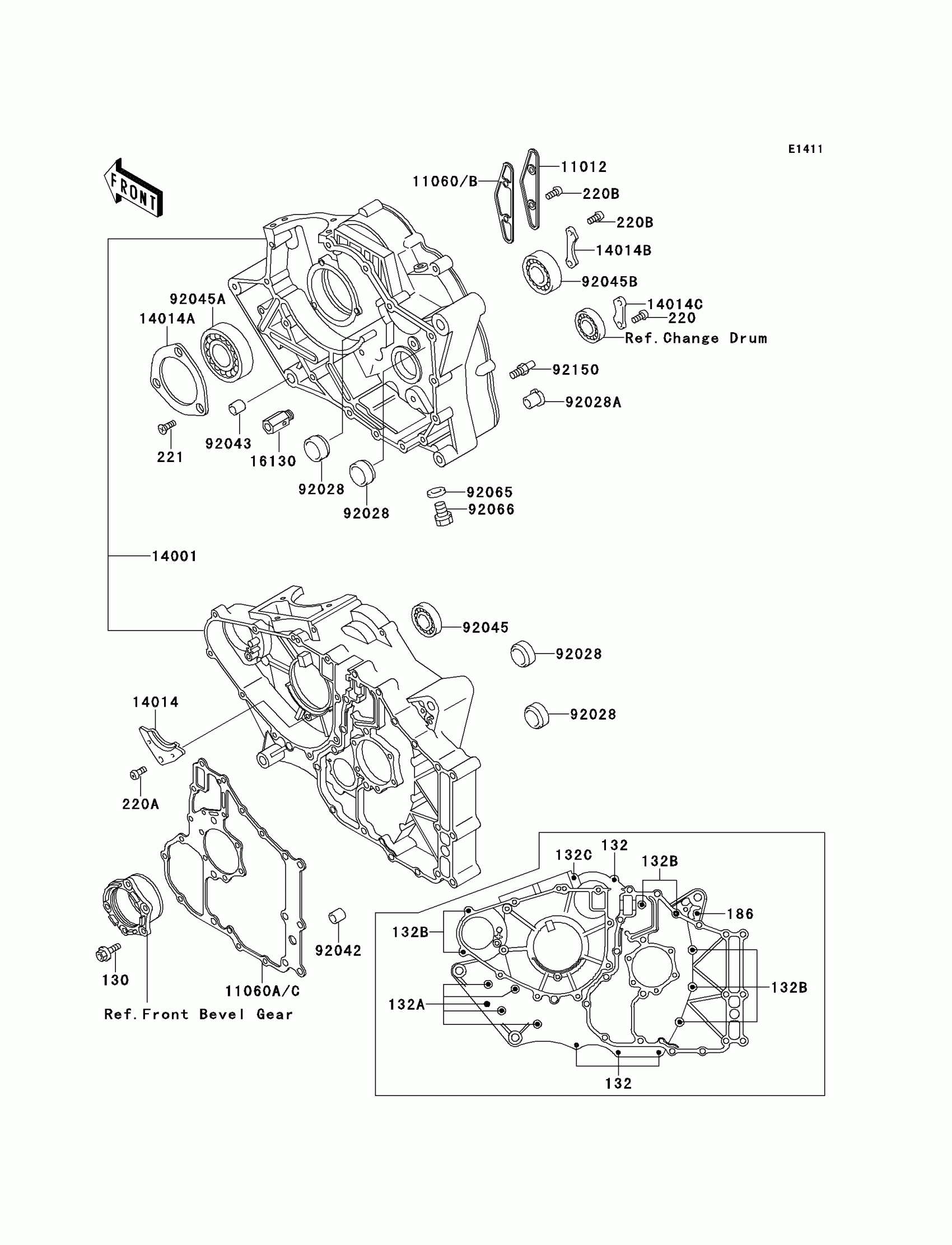

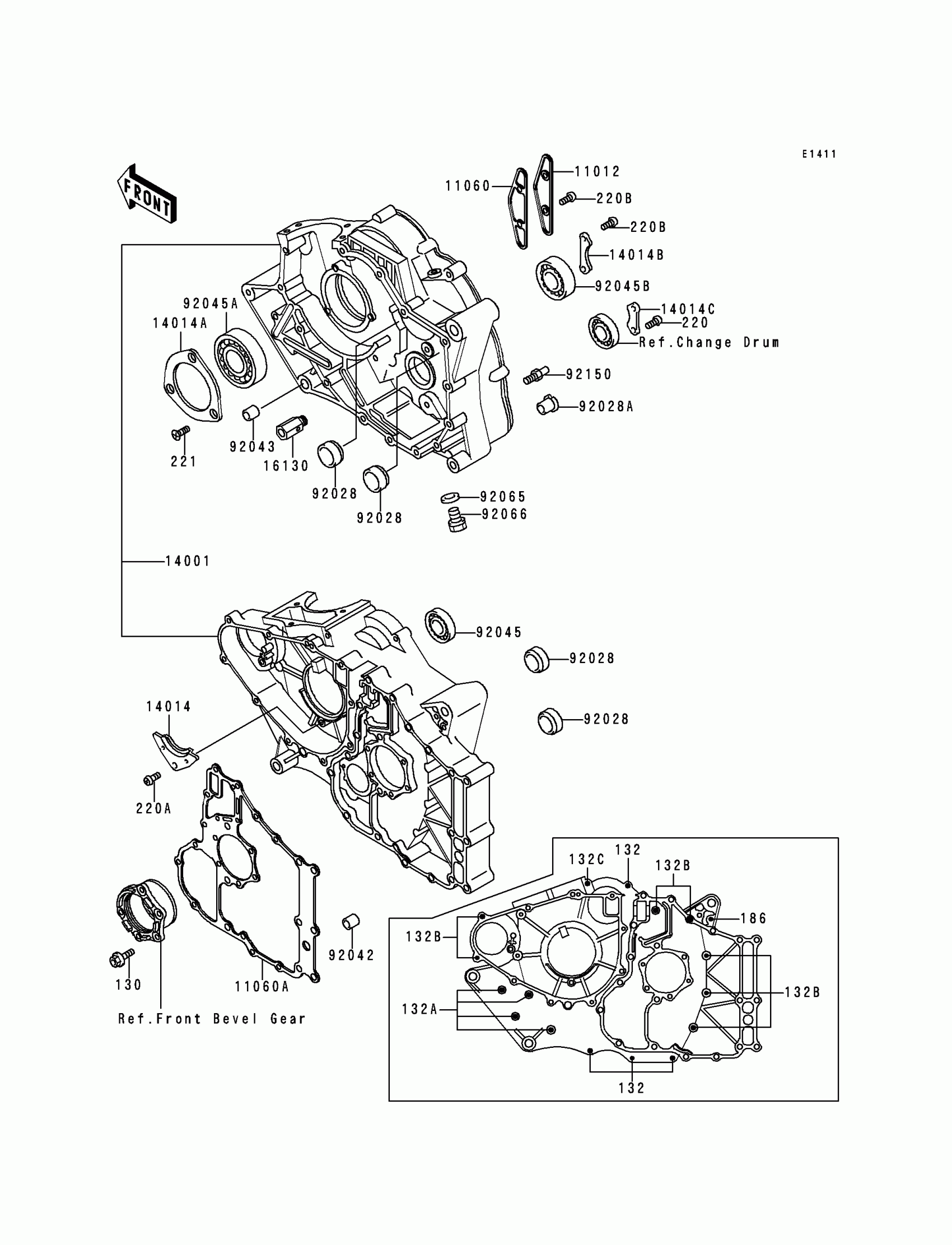

Find the part on the Crankcase diagram for your 1992 Kawasaki Bayou 300 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Kawasaki Bayou 300 4X4 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X20

130P0620

1
Out of stock

132

BOLT-FLANGED-SMALL,6X35

132Y0635

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X55

132Y0655

1
Out of stock

132B

BOLT-FLANGED-SMALL

132Y0665

1
Out of stock

132C

BOLT-FLANGED-SMALL

132Y0685

1
Out of stock

186

BOLT-UPSET-WP

186D0614

1
Out of stock

220

SCREW PAN HEAD 6X10

220B0610

1
Out of stock

220A

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

220B

SCREW-PAN-CROS,6X14

220B0614

1
Out of stock

221

SCREW-CSK-CROS,6X16

221B0616

1
Out of stock

11012

CAP

11012-1643

1
Out of stock

11060

GASKET,OIL LINE CAP

11060-1228

1
Out of stock

11060A

GASKET,GEAR CASE

11060-1229

1
Out of stock

14001

SET-CRANKCASE

14001-5325

1

$947.13

In stock

14014

PLATE,POSITIONING

14014-035

1

$4.61

In stock

14014A

1

$11.12

In stock

14014B

PLATE-POSITION

14014-1069

1

$5.37

In stock

14014C

1

$7.14

In stock

16130

VALVE-ASSY-RELIEF

16130-1001

1
Out of stock

92028

BUSHING,23X30X13

92028-132

1
Out of stock

92028A

BUSHING

92028-1386

1
Out of stock

92042

PIN,DOWEL,12X14

92042-031

1
Out of stock

92043

PIN,11.5X14X14

92043-1279

1
Out of stock

92045

BEARING-BALL,6004TMB

92045-1118

1
Out of stock

92045A

BEARING-BALL

92045-1172

1
Out of stock

92045B

BEARING-BALL

92045-1173

1
Out of stock

92065

GASKET,12X22X2

92065-097

1
Out of stock

92066

PLUG,OIL DRAIN,12X15

92066-1174

1
Out of stock

92150

BOLT,RETURN SPRING

92150-1106

1
Out of stock
