1992 Kawasaki Bayou 300 4X4 Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 1992 Kawasaki Bayou 300 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

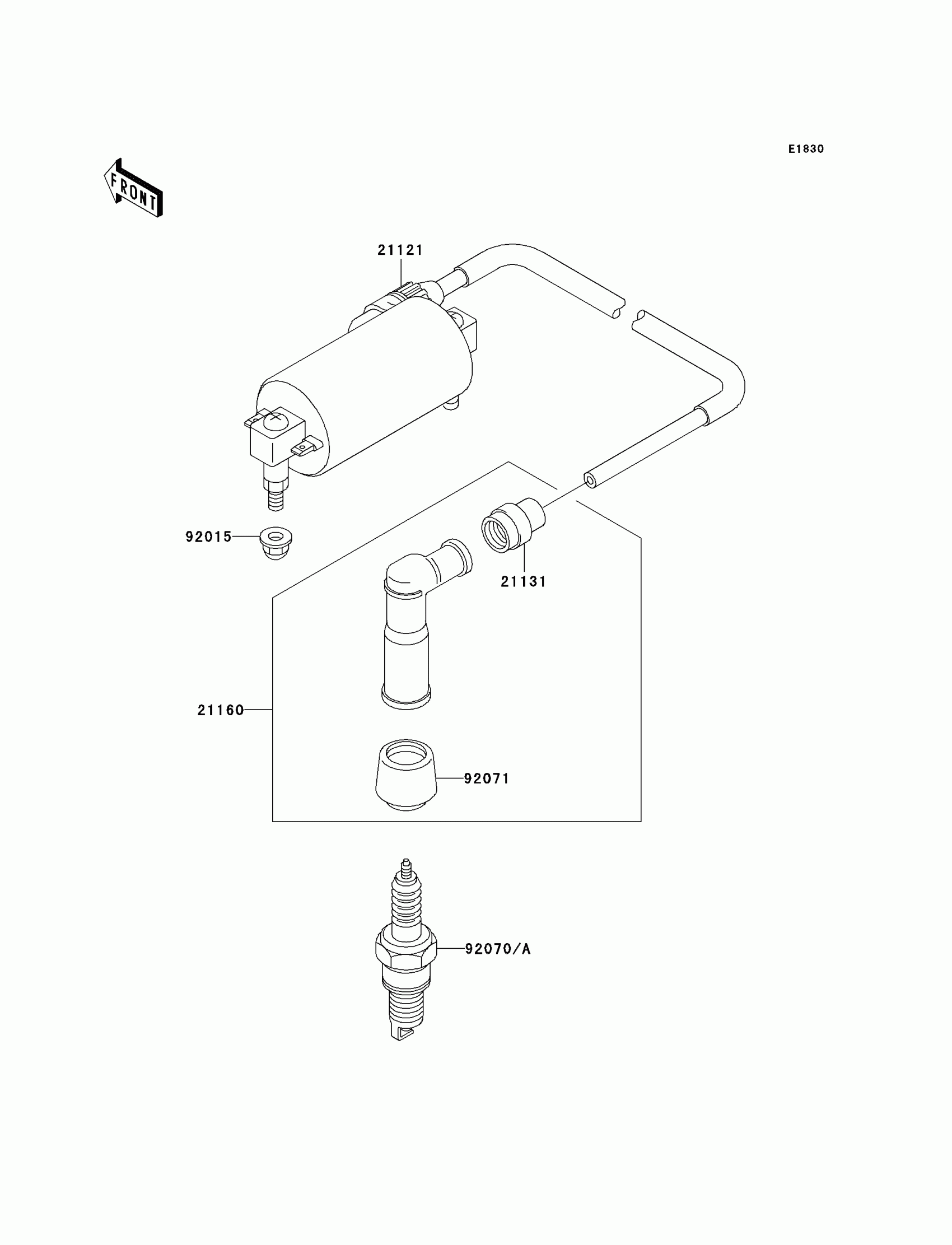

1992 Kawasaki Bayou 300 4X4 Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21121

COIL-IGNITION

21121-1049

1
Out of stock

21131

GROMMET,HIGH TENSION

21131-005

1
Out of stock

21160

CAP-ASSY-PLUG

21160-1089

1
Out of stock

92015

NUT,CAP,6M/M

92015-1153

1
Out of stock

92071

GROMMET,PLUG CAP

92071-1184

1
Out of stock

92070

PLUG-SPARK,D8EA(NGK)

92070-1011

1
Out of stock

92070A

PLUG-SPARK,DR8ES-L(NGK)

92070-1116

1
Out of stock
