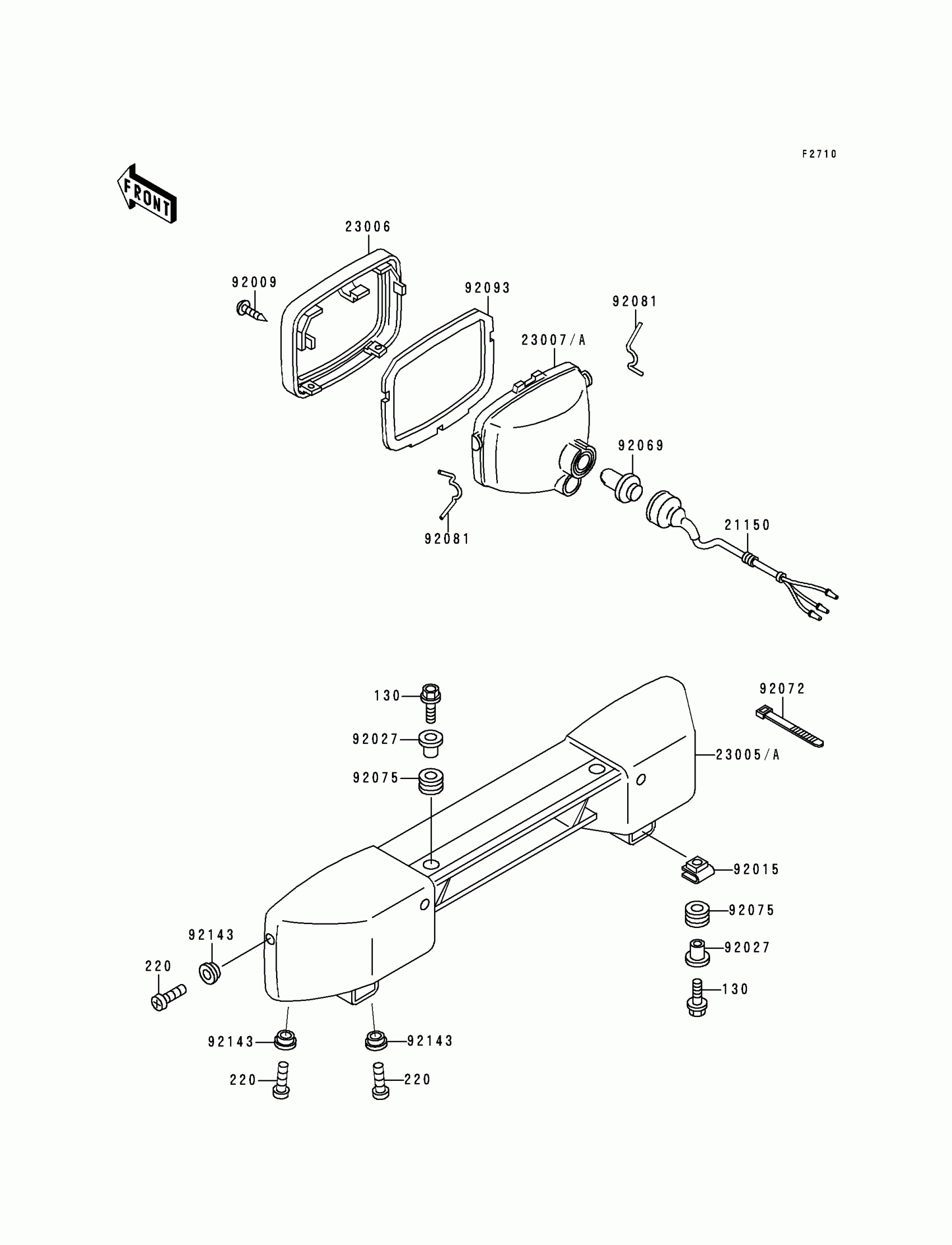

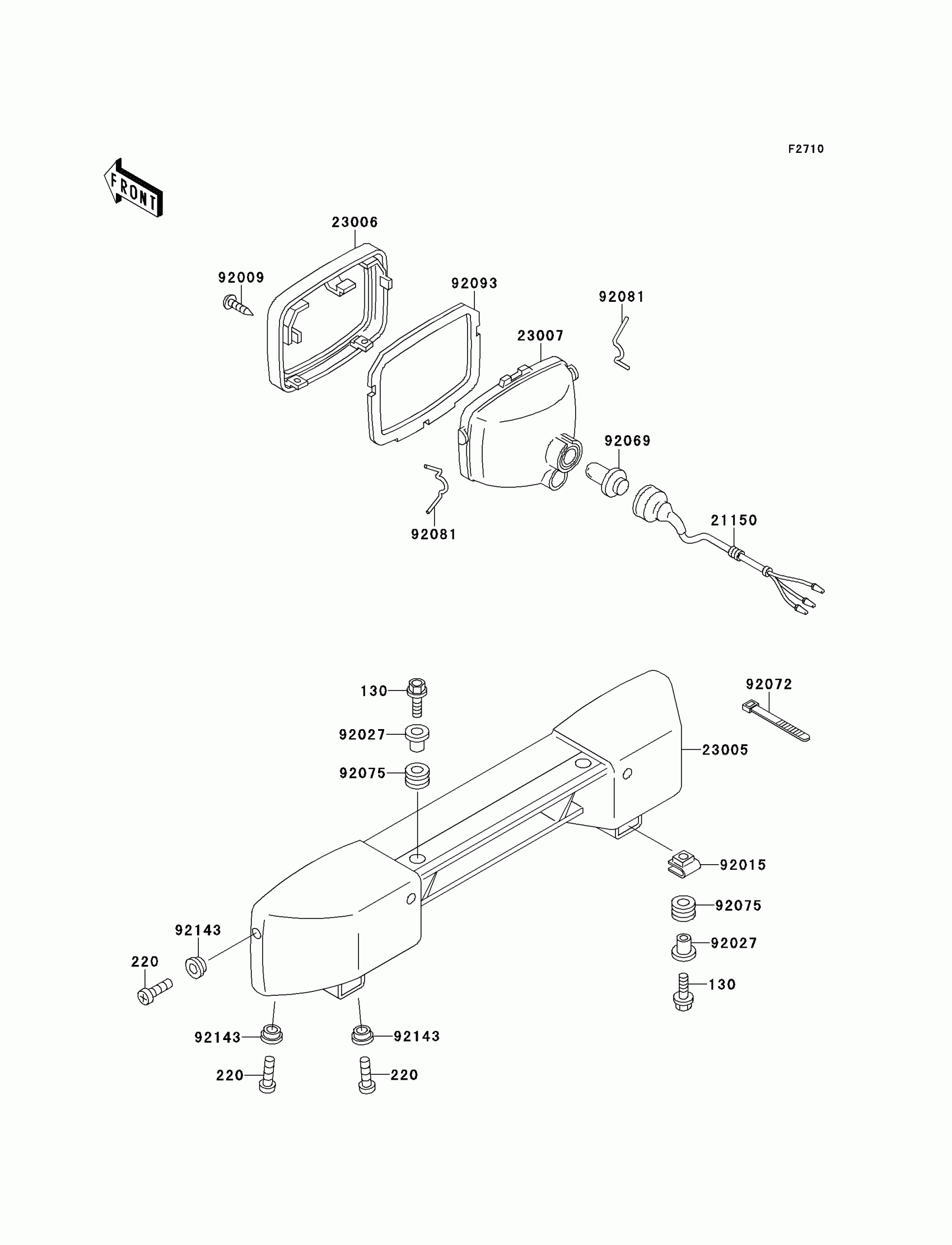

1992 Kawasaki Bayou 300 4X4 Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1992 Kawasaki Bayou 300 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Kawasaki Bayou 300 4X4 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X25

130J0625

1
Out of stock

220

SCREW-PAN-CROS,5X16,BLACK

220C0516

1
Out of stock

21150

CORD-ASSY,HEAD LAMP

21150-1053

1
Out of stock

23005A

BODY-COMP-HEAD LAMP

23005-1113

1
Out of stock

23006

RIM-LAMP

23006-1062

1
Out of stock

23007A

LENS-COMP,HEAD LAMP

23007-1274

1
Out of stock

92009

SCREW,TAPPING,4X30

92009-1139

1
Out of stock

92015

NUT,CLAMP,6MM

92015-1678

1
Out of stock

92027

COLLAR,L=16.1

92027-1847

1
Out of stock

92069

BULB,12V 25/25W

92069-1010

1
Out of stock

92072

BAND,L=149

92072-031

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1
Out of stock

92081

SPRING,LAMP RIM

92081-1334

1
Out of stock

92093

SEAL,HEAD LAMP

92093-1261

1
Out of stock

92143

COLLAR

92143-1234

1
Out of stock
